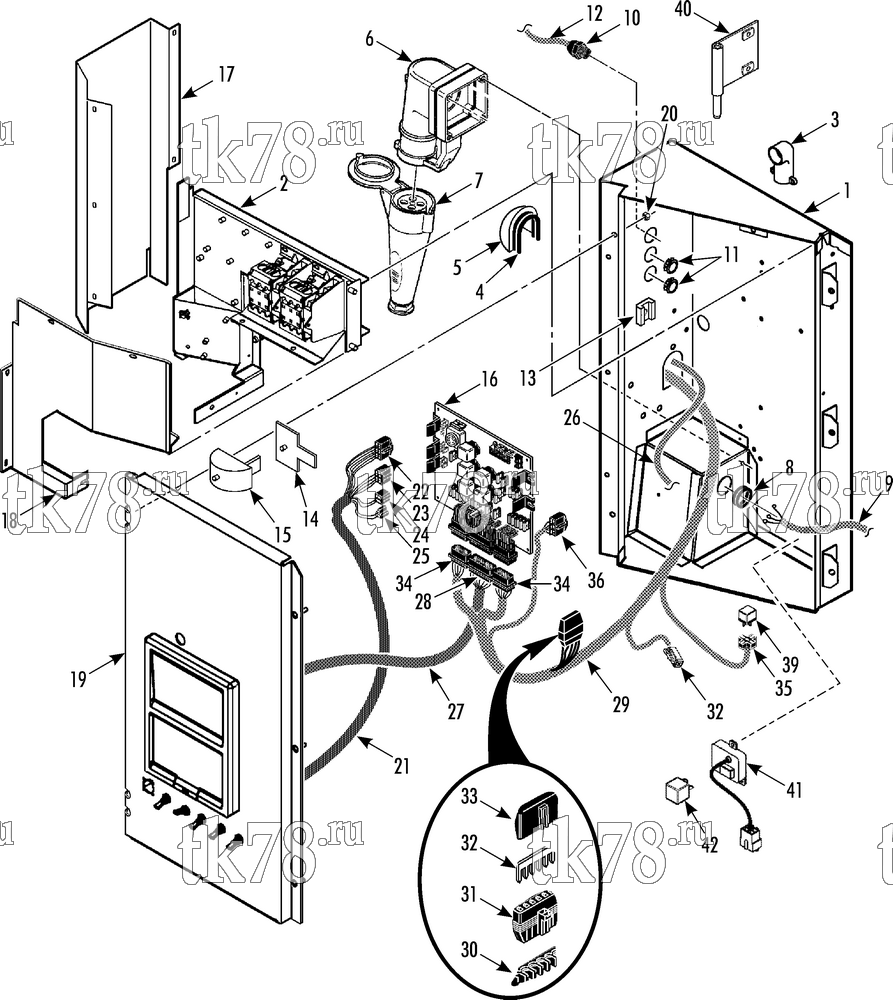

Установкa Thermo King SL-300 схема CONTROL BOX (SL-300 50 SR) – 149G1
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5284 | BOX - control | 1 | |
| 2 | NSS | TRAY - high voltage | 1 | |
| 55-2991 | SCREW - tray | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 3 | 55-9129 | CONNECTOR - cable (3/4 id) | 1 | |
| 4 | 33-2429 | GASKET - shield | 1 | |
| 5 | 91-4503 | COVER - wire | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 6 | 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | |
| 41-1817 | RECEPTACLE (230V) | 1 | ||
| 99-9052 | COVER - receptacle | 1 | ||
| 33-1697 | GASKET - receptacle | 1 | ||
| 55-2750 | SCREW - receptacle | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 7 | 41-520 | PLUG - power (380/3/50, mates w/ 41-519) | 1 | |
| 41-1816 | PLUG - power (230V) | 1 | ||
| 8 | 33-507 | GROMMET (1-1/8 id) | 1 | |
| 9 | 41-2273 | HARNESS - power (380V) | 1 | |
| 10 | 55-6742 | CONNECTOR - liquid tite | 1 | |
| 55-2635 | NUT | 1 | ||
| 11 | 55-6010 | PLUG - button | 2 | |
| 12 | 41-2274 | CABLE - heater | 1 | |
| 13 | 99-6093 | MOUNT - cable tie | 7 | |
| 55-4133 | RIVET - mount | 7 | ||
| 14 | 33-2460 | GASKET - adapter | 1 | |
| 15 | 91-5097 | ADAPTER - cover (harness) | 1 | |
| 55-3121 | SCREW - adapter | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 16 | 41-3412 | BOARD - relay (see 120E1) | 1 | |
| 55-2997 | SCREW - board | 11 | ||
| 55-2998 | LOCKWASHER (internal tooth) | 11 | ||
| 17 | 91-8274 | SHIELD - harness (control box) | 1 | |
| 55-3027 | SCREW - shield | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 18 | 92-1167 | SHIELD - high voltage | 1 | |
| 55-3027 | SCREW - shield | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 19 | NSS | COVER - control box (see 150A8) | 1 | |
| 20 | 55-4954 | NUT - cover | 2 | |
| 55-3034 | WASHER - sealing | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 21 | 41-2861 | HARNESS - switch | 1 | |
| 22 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 23 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 24 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 25 | 44-6519 | CONNECTOR (2-pin) | 1 | |
| 26 | 41-2860 | HARNESS - ETV | 1 | |
| 27 | 41-2715 | HARNESS - interconnecting | 1 | |
| 28 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - connector | 1 | ||
| 29 | 41-2869 | HARNESS - main | 1 | |
| 44-5030 | CONNECTOR (6-pin, female) | 1 | ||
| 30 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 31 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 32 | 41-2651 | BUSBAR | 1 | |
| 33 | 41-1787 | COVER - connector | 1 | |
| 34 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9854 | LOCK - receptacle | 1 | ||
| 35 | 41-1325 | SOCKET - mini plug | 1 | |
| 36 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 37 | 44-5814 | CONNECTOR (4-pin) | 2 | |
| 38 | 44-8920 | RECEPTACLE - remote lights | 1 | |
| 39 | 41-478 | RELAY (1pst) | 1 | |
| 40 | 91-8275 | HINGE - swing (control box) | 2 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-2977 | SCREW - control box | 2 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 41 | 41-7067 | BOARD - pc (fuel solenoid timer) | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 55-3511 | SCREW - board | 3 | ||
| 55-3800 | LOCKWASHER | 3 | ||
| 55-8430 | SPACER - pc board | 3 | ||
| 42 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 |
