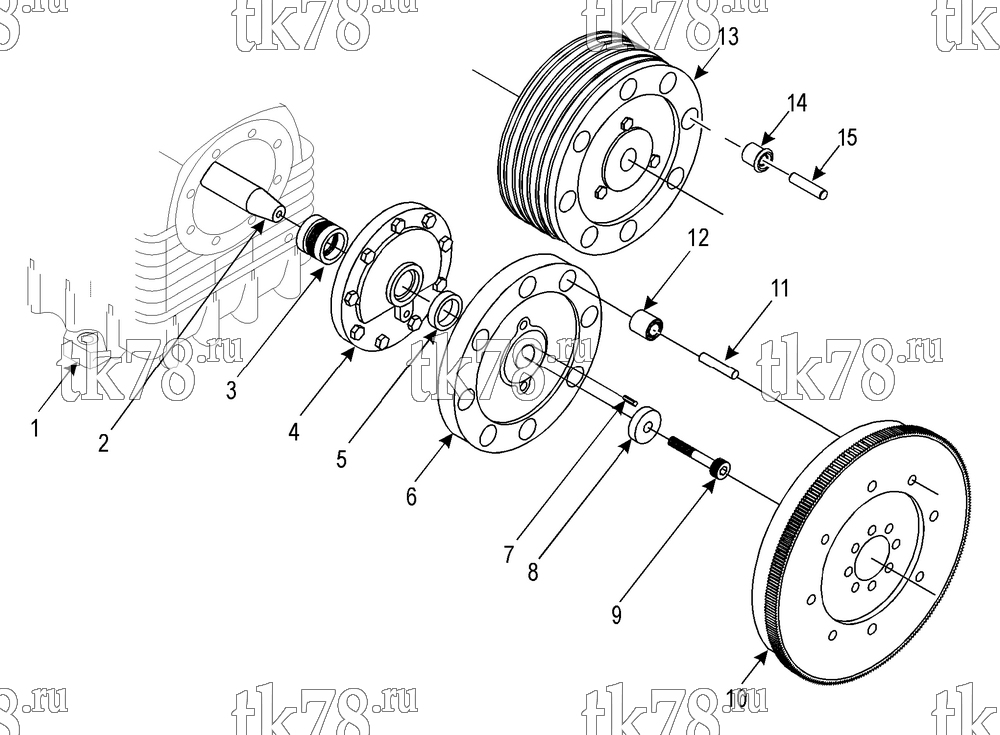

Установкa Thermo King SL-100e схема 8 PIN COUPLING w/LARGE SHAFT COMPRESSOR (TK486 & TK482 ENGINE) – 173B7
Обновление от: 8/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-647 | COMPRESSOR - X430 (dry, no oil, see 144F14) | 1 | |
| 8102-892 | COMPRESSOR - X430 (remanufactured, dry, see 144F14) | 1 | ||
| 8102-911 | COMPRESSOR - X426 LS C5 (dry new exchange, see 226C5) | 1 | ||
| 2 | 22-1027 | CRANKSHAFT - X430 | 1 | |
| 10-22-1027 | Коленвал компрессора X430LS | 56 100 ₽ |
|
|
|
PP-22-1027 | Коленвал компрессора X430LS | 29 450 ₽ |
|
| 22-1075 | CRANKSHAFT - X426 | 1 | ||
|
10-22-1075 | Коленвал компрессора X426LS | 63 280 ₽ |
|
| PP-22-1075 | Коленвал компрессора X426LS | 37 100 ₽ |
|
|
| 3 | 22-1101 | SEAL - bellows (for 1.188 dia crankshaft) | 1 | |
| US-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 53 610 ₽ |
|
|
|
10-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 19 370 ₽ |
|
|
PP-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 13 220 ₽ |
|
| 4 | 22-1028 | COVER - drive end | 1 | |
|
10-22-1028 | Крышка сальника компрессора X430LS | по запросу |
|
| 5 | 33-3004 | SEAL (for 1.188 dia crankshaft) | 1 | |
|
10-33-3004 | Сальник коленвала, X426LS/430LS | 2 360 ₽ |
|
| PP-33-3004 | Сальник коленвала, X426LS/430LS | 1 270 ₽ |
|
|
| 6 | 77-2506 | COUPLING - compressor drive (8-pin, incl bushings) | 1 | |
|
10-77-2506 | Муфта сцепления, SB/SMX/SMX-II / SL/Sle 30 | 48 300 ₽ |
|
| 7 | 55-9032 | KEY (5/8 lg) | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 8 | 77-2505 | SPACER - coupling | 1 | |
|
10-77-2505 | Шайба, Drive Coupler (Large Shaft) | 3 660 ₽ |
|
| 9 | 55-9031 | SCREW - coupling (M12 x 1.75 x 70 mm) | 1 | |
|
10-55-9031 | Болт, 12MM, Drive Coupler (Large Shaft) | 1 930 ₽ |
|
| 55-9092 | SCREW - clutch (M12 x 1.75 x 80 mm) | 1 | ||
| 10 | 12-750 | FLYWHEEL | 1 | |
| 11-8947 | GEAR - ring (before 11/08) | 1 | ||
| 13-1138 | GEAR - ring (11/08 & after) | 1 | ||
| 11 | 55-1123 | PIN - dowel (30s) | 8 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 12 | 77-2856 | BUSHING (30s) | 8 | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 13 | 107-344 | CLUTCH | 1 | |
| 10-107-344 | Сцепление, SLe | 120 680 ₽ |
|
|
| 70-208 | KIT - bushing (8-pin clutch, incl pins, bushings & adhesive) | 1 | ||
| 10-70-208 | Втулки муфты сцепления, к-т, SB/SMX/SL/SLe/SLX/SLXe | 19 600 ₽ |
|
|
| 14 | 77-2760 | BUSHING - coupling (50s) | 8 | |
|
10-77-2760 | Втулка маховика | 690 ₽ |
|
| 15 | 51-817 | PIN - dowel (50s) | 8 | |
|
10-51-817 | Шпонка | 1 230 ₽ |
|
