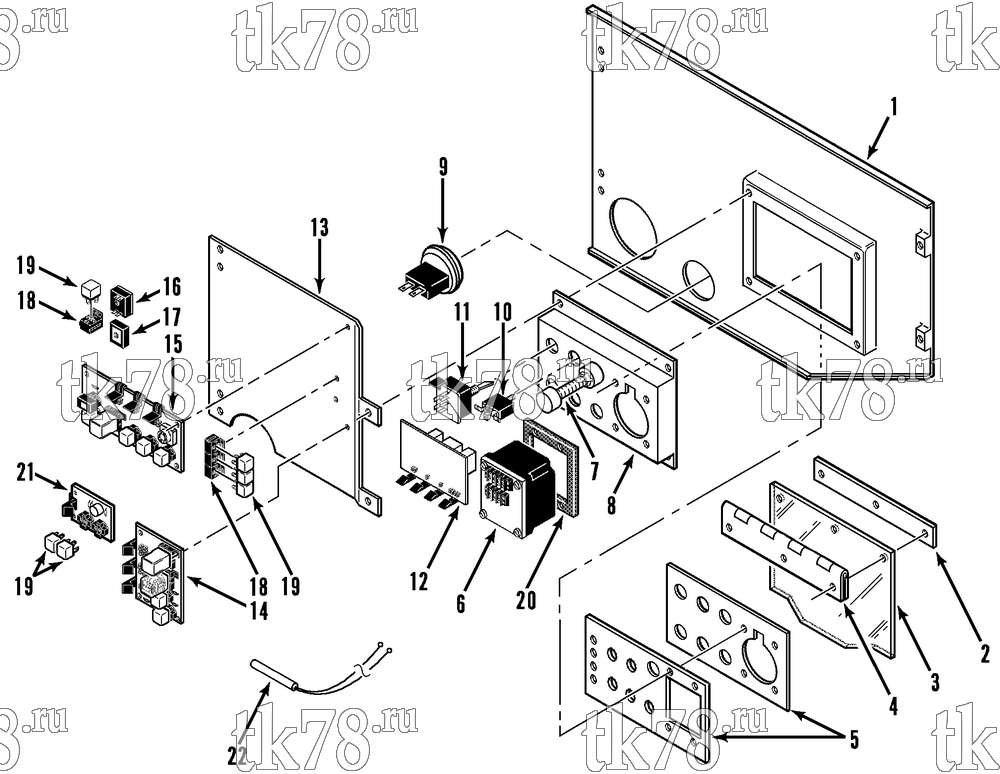

Установкa Thermo King SDZ 30 & 50 EMEIA w/TK 2.49 Engine схема CONTROL BOX COVER – 131A14
Обновление от: 2/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5617 | DOOR - control box | 1 | |
| 2 | 99-9489 | PLATE - hinge | 1 | |
| 3 | 99-9486 | DOOR - thermostat | 1 | |
| 91-1106 | FASTENER - door | 1 | ||
| 91-1107 | FASTENER - panel | 1 | ||
| 4 | 99-9487 | HINGE - cover | 1 | |
| 55-5975 | SCREW - door & hinge | 5 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 5 | 91-3821 | NAMEPLATE - panel (30s TG V) | 1 | |
| 91-3822 | NAMEPLATE - panel (50s TG V) | 1 | ||
| 91-3823 | NAMEPLATE - panel (30s C/S TG V) | 1 | ||
| 91-3824 | NAMEPLATE - panel (50s C/S TG V) | 1 | ||
| 6 | 45-1579 | THERMOSTAT | 1 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 55-3443 | SCREW - thermostat | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 7 | 44-9260 | BUTTON - reset (50s only) | 1 | |
| 8 | 91-3826 | PANEL - switch (TG V) | 1 | |
| 55-2965 | NUT - panel | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4396 | SCREW - thermostat | 4 | ||
| 9 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 10 | 44-7774 | BREAKER - circuit | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-8688 | BOOT | 1 | ||
| 11 | 44-8464 | BOARD - Cycle Sentry switch | 1 | |
| 12 | 44-9003 | BOARD - switch (see 88E10) | 1 | |
| 55-2965 | NUT - board | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 91-9911 | BRACKET - pc board | 1 | |
| 14 | 41-290 | BOARD - relay (see 129F3) | 1 | |
| 55-3443 | SCREW - board | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 15 | 44-9865 | BOARD - option (Cycle Sentry & cab box, see 102A1) | 1 | |
| 44-9278 | HARNESS - auto start | 1 | ||
| 55-2989 | SCREW - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 16 | 44-8162 | TIMER - heater initiation | 1 | |
| 55-2965 | NUT - timer | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 17 | 44-9047 | TIMER - solid state (R404A & R502) | 1 | |
| 55-5974 | SCREW - timer | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 18 | 44-5537 | SOCKET - relay | 4 | |
| 55-2965 | NUT - socket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 19 | 41-895 | RELAY - mini (plug-in) | 4 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 20 | 33-2128 | GASKET - thermostat (TG V) | 1 | |
| 21 | 41-2190 | BOARD - pc (fuel solenoid timer) | 1 | |
| 55-3511 | SCREW - board | 3 | ||
| 55-8430 | SPACER - board | 3 | ||
| 55-3800 | LOCKWASHER | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 22 | 44-5234 | SENSOR - thermostat | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
