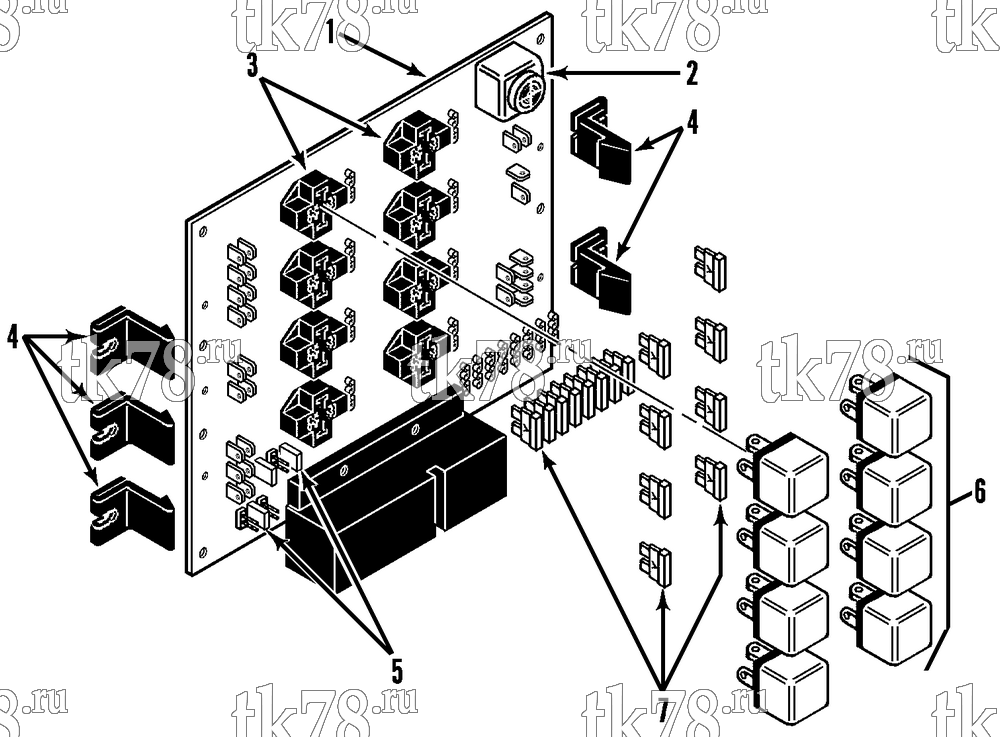

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема RELAY BOARD ASSEMBLY (Before 3/95) – 126A11
Обновление от: 9/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9468 | BOARD - relay (w/o fuses & relays) | 1 | |
| 2 | 41-8291 | BUZZER - warning | 1 | |
| 3 | 44-6032 | SOCKET - mini plug | 8 | |
| 4 | 91-1277 | RETAINER - harness connector | 5 | |
| 55-2262 | RIVET - retainer | 5 | ||
| 55-3550 | FLATWASHER | 10 | ||
| 5 | 44-8187 | CONNECTOR (2-pin, female) | 4 | |
| 6 | 41-895 | RELAY (1pdt) | 8 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 7 | 44-9524 | FUSE (3 amp, 32VDC) | 16 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
