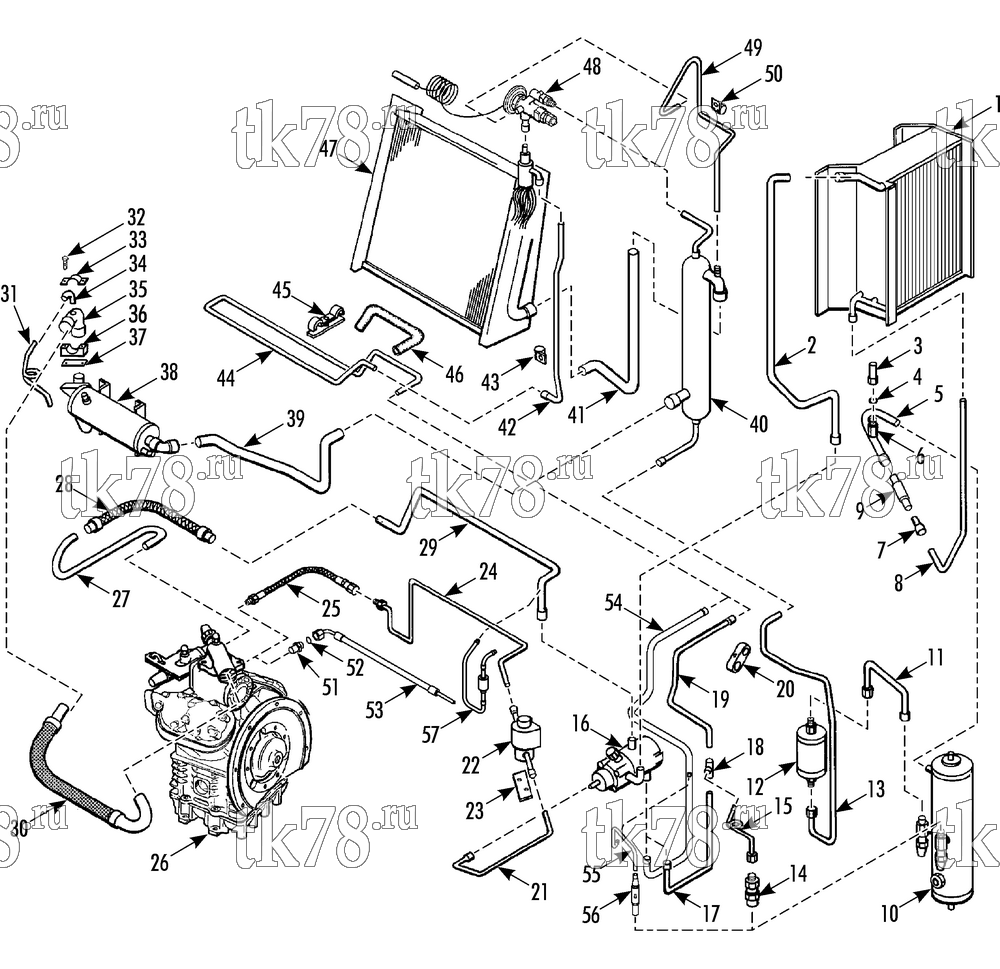

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема REFRIGERATION COMPONENTS – 119F11
Обновление от: 7/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1415 | COIL - condenser (see 139A11) | 1 | |
| 2 | 66-5325 | TUBE - 3-way to condenser | 1 | |
| 3 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 4 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-5828 | TUBE - valve to tank | 1 | |
| 6 | 99-3060 | FITTING - saddle | 1 | |
| 7 | 66-4223 | TUBE - valve | 1 | |
| 8 | 66-5498 | TUBE - coil to valve | 1 | |
| 9 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 10 | 67-1179 | TANK - receiver (see 66B4) | 1 | |
| 11 | 66-6444 | TUBE - receiver to drier | 1 | |
| 12 | 61-600 | DEHYDRATOR (see 97D5) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 13 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 14 | 66-5501 | VALVE - check | 1 | |
| 15 | 66-5328 | TUBE - tee to check valve | 1 | |
| 16 | 66-8804 | VALVE - 3-way (see 86A3) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 17 | 66-5352 | TUBE - 3-way valve to tee | 1 | |
| 18 | 55-6434 | TEE | 1 | |
| 19 | 66-5351 | TUBE - tee to defrost | 1 | |
| 20 | 91-445 | CLAMP - tube (see 90E4) | 1 | |
| 21 | 66-6023 | TUBE - 3-way to solenoid | 1 | |
| 22 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-8786 | NUT | 1 | ||
| 23 | 91-1434 | SPACER - solenoid | 1 | |
| 55-1384 | SCREW - solenoid | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 24 | 66-7657 | TUBE - hose to tee | 1 | |
| 66-6190 | TUBE - hose to tee (w/ optional gauge, see 120C2) | 1 | ||
| 66-9658 | TUBE - hose to tee (hose w/ o-ring seal) | 1 | ||
| 25 | 66-7472 | HOSE - throttling | 1 | |
| 66-7472 OEM | Шланг компрессора, SB-II/III / SMX | 14 470 ₽ |
|
|
| 26 | NSS | COMPRESSOR (see compressor group) | 1 | |
| 27 | 66-4987 | TUBE - discharge | 1 | |
| 28 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 29 | 61-1902 | TUBE - vibrasorber to 3-way | 1 | |
| 30 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 31 | 66-5327 | TUBE - accumulator balance | 1 | |
| 32 | 55-263 | SCREW - clamp | 2 | |
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 33 | 91-1748 | CLAMP - tube | 1 | |
| 34 | 55-6436 | ELBOW (1/4) | 1 | |
| 35 | 55-6437 | ELBOW (1-3/8) | 1 | |
| 36 | 55-6020 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 37 | 91-1749 | SPACER - clamp | 1 | |
| 38 | 67-1195 | TANK - accumulator (w/o water heat) | 1 | |
| 67-1195 | TANK - accumulator (see 106B10) | 1 | ||
| 39 | 66-7326 | TUBE - exchanger to accumulator | 1 | |
| 40 | 67-991 | HEAT EXCHANGER | 1 | |
| 41 | 66-5311 | TUBE - coil to exchanger | 1 | |
| 42 | 66-5313 | TUBE - defrost to distributor | 1 | |
| 43 | 55-2240 | CLAMP - tube | 1 | |
| 44 | 67-2276 | TUBE - defrost | 1 | |
| 45 | 99-8001 | CLAMP - defrost tube | 1 | |
| 99-8091 | BRACKET - defrost tube | 1 | ||
| 55-4954 | NUT | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 46 | 11-4256 | HOSE - insulation | 1 | |
| 47 | 67-916 | COIL - evaporator (30s) | 1 | |
| 67-1069 | COIL - evaporator (50s) | 1 | ||
| 48 | 66-7893 | VALVE - expansion | 1 | |
|
10-66-7893 | Клапан, SB-III | 49 940 ₽ |
|
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-4453 | SCREEN - filter | 1 | ||
| 66-6380 | SCREEN - filter (inlet) | 1 | ||
| 49 | 66-5856 | TUBE - equalizer | 1 | |
| 50 | 55-2536 | CLAMP | 1 | |
| 51 | 66-8928 | FITTING - o-ring seal | 1 | |
| 52 | 33-1461 | O-RING - hose | 1 | |
| 53 | 61-1831 | HOSE - throttling (o-ring seal) | 1 | |
| 54 | 66-9954 | TUBE - 3-way to defrost | 1 | |
| 55 | 66-9659 | TUBE - defrost to receiver | 1 | |
| 56 | 66-9369 | VALVE - check | 1 | |
| 57 | 60-493 | KIT -3-way valve external condenser | 1 |
