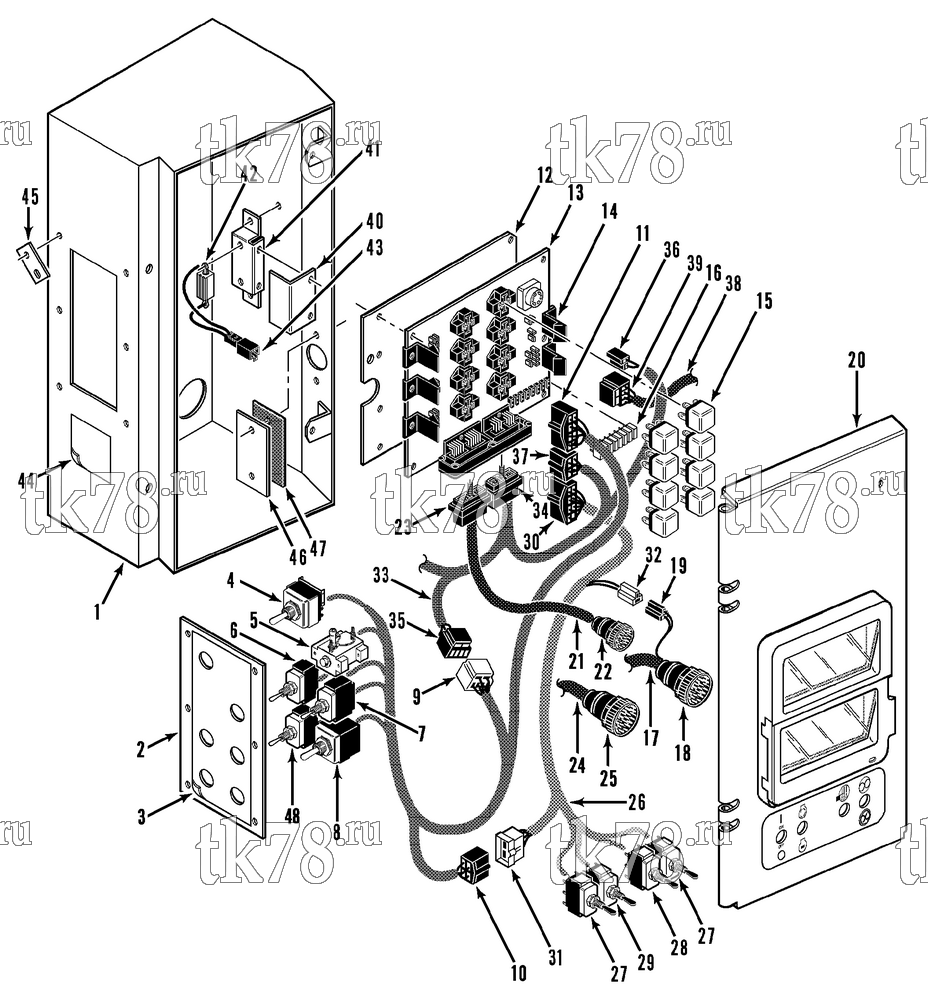

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема CONTROL BOX ASSEMBLY (SR MP IV) – 102A3
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4602 | BOX - control | 1 | |
| 2 | 91-3354 | PANEL - circuit breaker | 1 | |
| 55-3842 | SCREW - panel | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 3 | 91-3355 | NAMEPLATE - panel | 1 | |
| 91-3713 | NAMEPLATE - panel mod | 1 | ||
| 4 | 44-5169 | SWITCH - emergency | 1 | |
| 5 | 40-1082 | SWITCH - reset | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 6 | 44-9234 | BREAKER - circuit (15 amp, CB1) | 1 | |
| 7 | 44-9233 | BREAKER - circuit (40 amp, CB2) | 1 | |
| 8 | 44-9235 | BREAKER - circuit (1.5 amp, processor) | 1 | |
| 9 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 10 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 11 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 12 | 91-3356 | PANEL - relay board | 1 | |
| 55-4953 | NUT - panel | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 44-9468 | BOARD - pc (see 126A11) | 1 | |
| 55-2977 | SCREW - board | 9 | ||
| 55-2998 | LOCKWASHER | 9 | ||
| 14 | 91-1277 | RETAINER - harness connector | 5 | |
| 55-3044 | RIVET - retainer | 5 | ||
| 15 | 44-9111 | RELAY - mini | 7 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 16 | 44-9524 | FUSE (3.5 amp) | 9 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 17 | 44-8873 | HARNESS - signal | 1 | |
| 18 | 41-743 | CONNECTOR (14-pin) | 1 | |
| 44-8779 | CLAMP - cable | 1 | ||
| 44-8540 | PIN | 7 | ||
| 19 | 44-5620 | CONNECTOR | 1 | |
| 20 | NSS | DOOR - control box (see 102A4) | 1 | |
| 21 | 44-9851 | HARNESS - interface | 1 | |
| 22 | 41-745 | CONNECTOR (37-pin) | 1 | |
| 55-7148 | CLAMP - cable | 1 | ||
| 44-8540 | PIN - plug | 28 | ||
| 23 | 44-8857 | CONNECTOR (30-pin) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | 28 | ||
| 24 | 41-588 | HARNESS - sensor | 1 | |
| 25 | 41-744 | CONNECTOR (19-pin) | 1 | |
| 44-8540 | PIN | 15 | ||
| 26 | 44-8877 | HARNESS - switch | 1 | |
| 27 | 44-7929 | SWITCH - on/off (Cycle Sentry) | 2 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 28 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 29 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 30 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 31 | 44-5827 | CONNECTOR (4-pin, female) | 1 | |
| 32 | 44-5219 | CONNECTOR (2-pin, female) | 1 | |
| 33 | 41-1168 | HARNESS - main | 1 | |
| 34 | 44-8858 | CONNECTOR (18-pin) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | 18 | ||
| 35 | 44-5600 | CONNECTOR (6-pin, female) | 1 | |
| 36 | 44-5219 | CONNECTOR (2-pin, female) | 1 | |
| 37 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 38 | 44-8878 | HARNESS - evaporator | 1 | |
| 39 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 40 | 91-3856 | PLATE - guard | 1 | |
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 41 | 91-3359 | BRACKET - shunt | 1 | |
| 55-3021 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 42 | 44-9241 | SHUNT | 1 | |
| 55-3031 | SCREW - shunt | 2 | ||
| 55-3006 | WASHER - shoulder | 4 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 43 | 44-9589 | RECEPTACLE | 1 | |
| 44-9587 | PIN | 2 | ||
| 44-9590 | WEDGE | 1 | ||
| 44 | 91-3360 | NAMEPLATE | 1 | |
| 45 | 91-3361 | PLATE - guard (switch) | 1 | |
| 46 | 91-3455 | COVER | 1 | |
| 55-1329 | SCREW - plate | 2 | ||
| 47 | 33-2233 | GASKET - plate | 1 | |
| 48 | 44-9410 | BREAKER - circuit (modulation valve, optional) | 1 |
