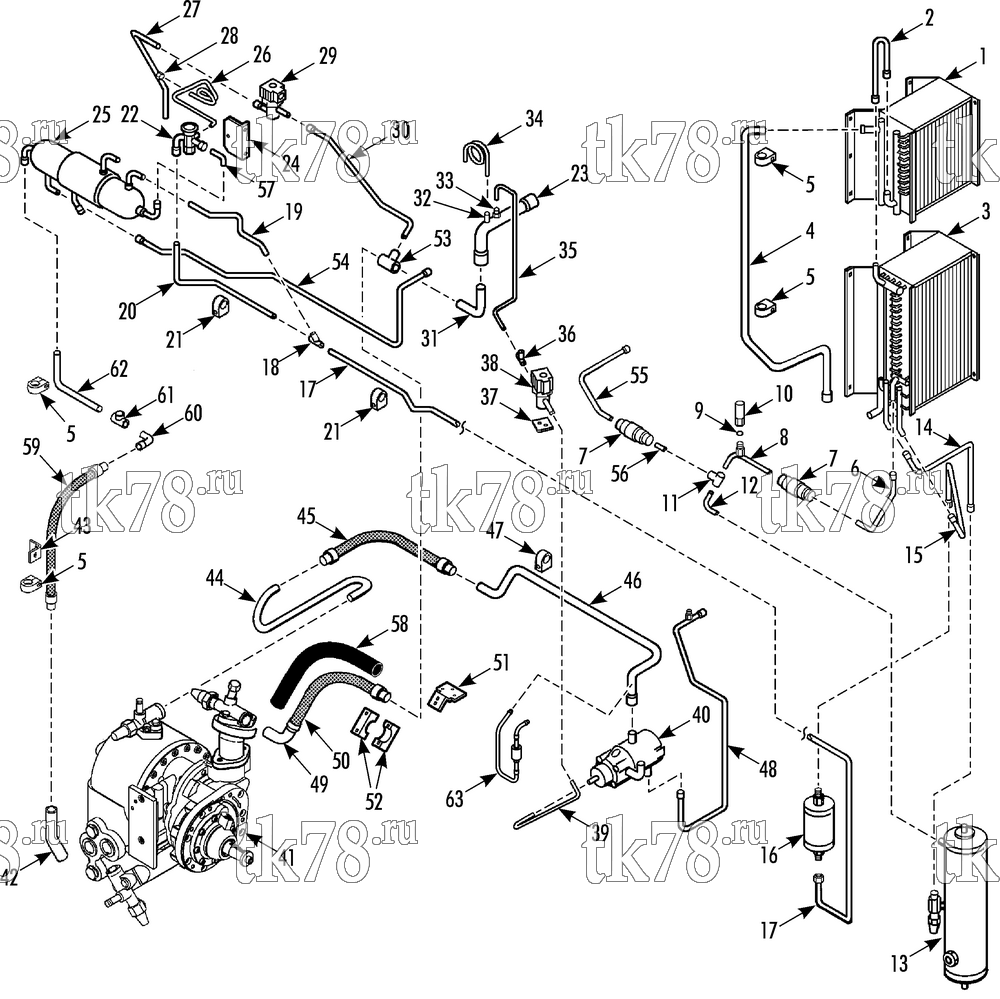

Установкa Thermo King SB-III S+ w/se 2.2 Engine схема REFRIGERATION COMPONENTS - CONDENSER – 105E1
Обновление от: 7/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1207 | COIL - condenser (upper, see 119E4) | 1 | |
| 2 | 66-7428 | TUBE - connecting coil | 1 | |
| 3 | 67-1205 | COIL - condenser/radiator (lower, see 119E4) | 1 | |
| 4 | 61-1378 | TUBE - 3-way to condenser | 1 | |
| 5 | 91-372 | CLAMP - tube | 2 | |
| 6 | 66-7430 | TUBE - condenser to check valve | 1 | |
| 7 | 66-5721 | VALVE - check | 2 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 8 | 66-9731 | TUBE - condenser to tee | 1 | |
| 9 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 11 | 55-904 | TEE | 1 | |
| 12 | 66-6483 | TUBE - tee | 1 | |
| 13 | 67-1179 | TANK - receiver (see 117G11) | 1 | |
| 14 | 66-9728 | TUBE - receiver to subcool inlet | 1 | |
| 15 | 66-7433 | TUBE - sub outlet to drier | 1 | |
| 16 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 17 | 66-7434 | TUBE - dehydrator to tee | 1 | |
| 18 | 55-2296 | TEE | 1 | |
| 19 | 66-7435 | TUBE - tee, liquid inlet economizer | 1 | |
| 20 | 66-7436 | TUBE - tee to expansion valve | 1 | |
| 21 | 55-6389 | CLAMP - tube | 2 | |
| 22 | 66-7438 | VALVE - expansion (economizer) | 1 | |
| 60-289 | KIT - repair | 1 | ||
| 23 | 66-7602 | TUBE - suction | 1 | |
| 24 | 91-5798 | BRACKET - expansion valve | 1 | |
| 25 | 67-1516 | ECONOMIZER (see 119E5) | 1 | |
| 26 | 66-7437 | TUBE - equalizer economizer | 1 | |
| 27 | 66-7439 | TUBE - tee to solenoid | 1 | |
| 28 | 66-5752 | FITTING | 1 | |
| 29 | 66-6494 | VALVE - solenoid (economizer bypass, see 138B4) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 30 | 66-9053 | TUBE - tee suction to solenoid | 1 | |
| 31 | 66-9052 | TUBE - suction bulkhead to tee | 1 | |
| 32 | 66-5752 | FITTING - header tube | 1 | |
| 33 | 66-6480 | FITTING - orifice | 1 | |
| 34 | 66-9712 | TUBE - hot gas suction | 1 | |
| 35 | 66-9249 | TUBE - pilot solenoid to suction | 1 | |
| 36 | 66-4346 | TEE | 1 | |
| 37 | 91-1434 | SPACER - solenoid | 1 | |
| 38 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1385 | SCREW - valve | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 39 | 66-9250 | TUBE - 3-way to solenoid | 1 | |
| 40 | 66-6393 | VALVE - 3-way (see 106D12) | 1 | |
| 66-8804 | VALVE - 3-way (w/ valve in cap, see 86A3) | 1 | ||
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 41 | 8102-816 | COMPRESSOR (see 144B13) | 1 | |
| 42 | 66-8119 | TUBE - suction | 1 | |
| 43 | 91-5795 | ANGLE - vibrasorber | 1 | |
| 44 | 66-6486 | TUBE - valve to discharge vibrasorber | 1 | |
| 45 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 46 | 66-5380 | TUBE - vibrasorber to 3-way | 1 | |
| 47 | 55-6389 | CLAMP - tube (0.500 dia) | 1 | |
| 55-7013 | CLAMP - tube (0.875 dia) | 1 | ||
| 91-445 | CLAMP - tube (0.750 dia) | 3 | ||
| 55-5677 | SCREW - clamp | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-4118 | NUT | 2 | ||
| 48 | 66-7972 | TUBE - 3-way to defrost | 1 | |
| 66-5752 | FITTING | 1 | ||
| 49 | 66-7445 | TUBE - vibrasorber (suction) | 1 | |
| 50 | 66-8117 | VIBRASORBER - suction | 1 | |
| 51 | 91-5799 | BRACKET - clamp | 1 | |
| 55-145 | SCREW - bracket | 3 | ||
| 55-411 | FLATWASHER | 3 | ||
| 55-6863 | INSERT | 3 | ||
| 52 | 55-6020 | CLAMP - suction tube | 2 | |
| 55-4770 | SCREW - clamp | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 53 | 55-7448 | TEE | 1 | |
| 54 | 66-7446 | TUBE - econo line to bulkhead | 1 | |
| 55 | 66-6488 | TUBE - valve | 1 | |
| 56 | 66-6487 | TUBE - valve to receiver | 1 | |
| 57 | 66-7973 | TUBE - expansion valve | 1 | |
| 58 | 98-4836 | HOSE - sponge | A/R | |
| 59 | 66-6493 | VIBRASORBER | 1 | |
| 60 | 66-634 | ELBOW | 1 | |
| 61 | 55-3127 | TEE | 1 | |
| 62 | 66-7426 | TUBE - outlet | 1 | |
| 63 | 60-493 | KIT - 3-way valve external condenser pressure by-pass check valve | 1 |
