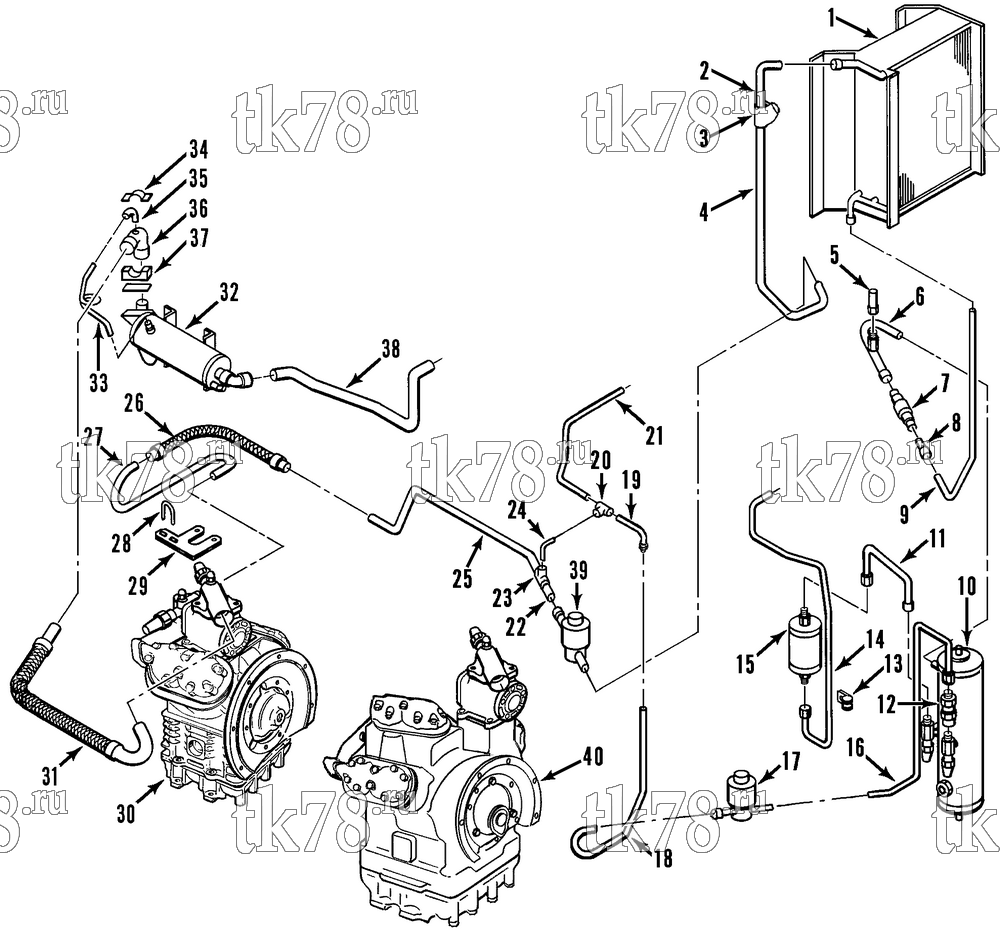

Установкa Thermo King SB-III MULTI-TEMP w/se 2.2 ENGINE схема REFRIGERATION COMPONENTS - CONDENSER – 109A2
Обновление от: 5/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-912 | COIL - condenser (see 106B13) | 1 | |
| 2 | 66-6386 | TUBE - valve to condenser | 1 | |
| 3 | 66-6586 | VALVE - check | 1 | |
| 4 | 66-6478 | TUBE - solenoid to valve | 1 | |
| 5 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 66-5828 | TUBE - valve to tank | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 7 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 8 | 66-4223 | TUBE - valve | 1 | |
| 9 | 66-5498 | TUBE - coil to valve | 1 | |
| 10 | 67-1179 | TANK - receiver (see 66B4) | 1 | |
| 11 | 66-6444 | TUBE - receiver to drier | 1 | |
| 12 | 66-5501 | VALVE - check (see note) | 1 | |
| 13 | 55-3065 | CLAMP - tube | 1 | |
| 14 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 15 | 61-600 | DEHYDRATOR (see 104D6) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 16 | 66-6065 | TUBE - valve to tank (before 4/95) | 1 | |
| 66-7940 | TUBE - valve to tank (4/95 & after) | 1 | ||
| 17 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL (12V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 18 | 66-6388 | TUBE - reducer to solenoid | 1 | |
| 19 | 66-6477 | TUBE - coupling to tee | 1 | |
| 55-7450 | COUPLING | 1 | ||
| 20 | 55-2296 | TEE | 1 | |
| 21 | 66-6476 | TUBE - tee to defrost | 1 | |
| 22 | 66-6474 | TUBE - tee to valve (X430) | 1 | |
| 66-7273 | TUBE - tee to valve (X640) | 1 | ||
| 23 | 55-3518 | TEE | 1 | |
| 24 | 66-6385 | TUBE - bypass | 1 | |
| 25 | 66-6723 | TUBE - discharge | 1 | |
| 26 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 27 | 66-4987 | TUBE - discharge | 1 | |
| 28 | 55-5920 | U-BOLT | 1 | |
| 55-5292 | NUT | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 29 | 91-9135 | BRACKET - discharge tube | 1 | |
| 30 | 102-490 | COMPRESSOR - X430 (see 72A12) | 1 | |
|
101-X430 | Компрессор X430 | 196 270 ₽ |
|
| 31 | 66-6024 | VIBRASORBER - suction (X430) | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 66-6516 | VIBRASORBER - suction (X640) | 1 | ||
| 32 | 67-1195 | TANK - accumulator | 1 | |
| 67-1195 | TANK - accumulator (11/93 & after, w/o coolant coil) | 1 | ||
| 33 | 66-5327 | TUBE - accumulator balance | 1 | |
| 34 | 91-1748 | CLAMP | 1 | |
| 35 | 55-6436 | ELBOW (1/4) | 1 | |
| 36 | 55-6437 | ELBOW (1-3/8) | 1 | |
| 37 | 55-6020 | CLAMP - u-bolt | 1 | |
| 91-1749 | SPACER | 1 | ||
| 38 | 66-5321 | TUBE - exchanger to accumulator (before 11/93) | 1 | |
| 66-7326 | TUBE - exchanger to accumulator (11/93 & after) | 1 | ||
| 39 | 61-1300 | VALVE - solenoid (see 127B14) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 40 | N/A | COMPRESSOR - X640 (see 78B9) | 1 |
