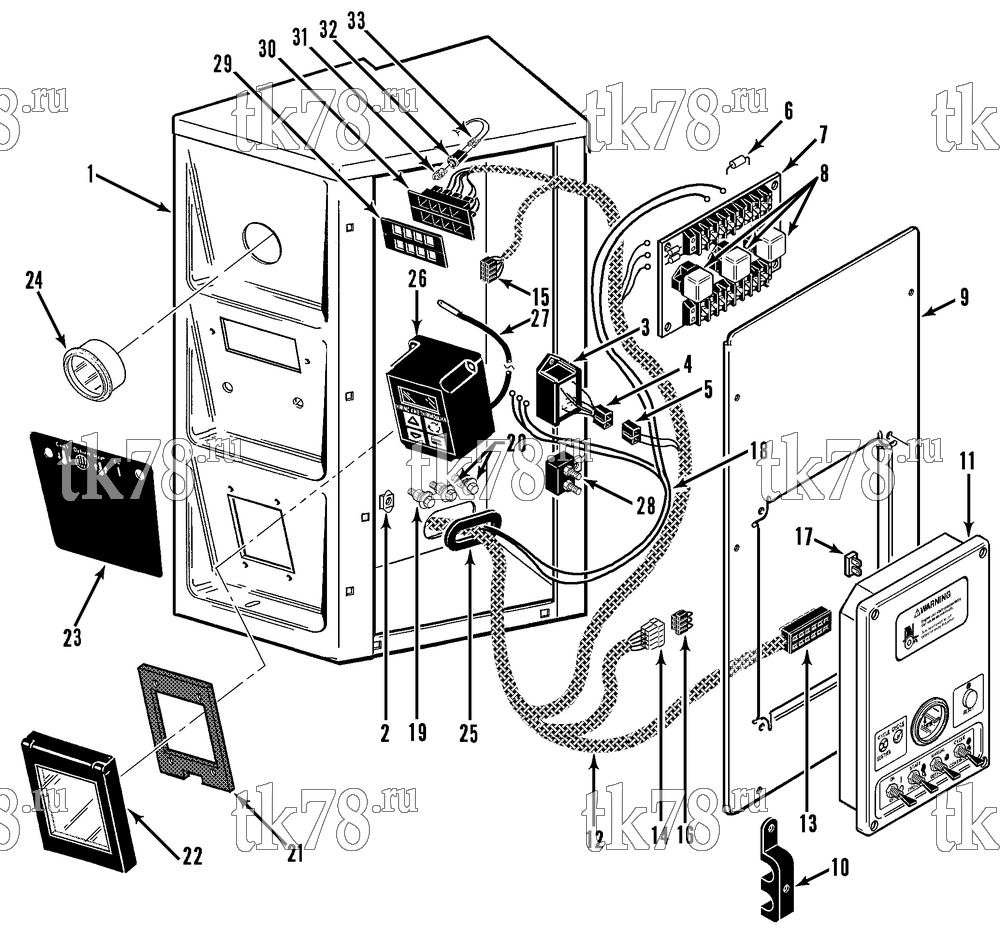

Установкa Thermo King SB-III 30 MAX w/se 2.2 Engine схема CONTROL BOX (TF) – 112F12
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3927 | BOX - control | 1 | |
| 2 | 55-3085 | NUT - captive | 11 | |
| 3 | 44-8017 | DETECTOR - liquid level | 1 | |
| 4 | 44-5827 | CONNECTOR (4-pin) | 1 | |
| 55-3022 | SCREW - detector | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 5 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 6 | 44-2756 | DIODE | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 7 | 44-7527 | BOARD - relay | 1 | |
| 8 | 41-895 | RELAY (1pdt) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 9 | 98-3865 | PANEL - control box | 1 | |
| 99-4976 | STRIP - sealing | A/R | ||
| 55-5046 | SCREW - panel | 8 | ||
| 55-2993 | LOCKWASHER | 8 | ||
| 10 | 91-2803 | CLAMP - harness | 1 | |
| 55-3121 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 11 | 45-1470 | PANEL - switch (w/o Cycle Sentry, see 100D9) | 1 | |
| 55-6352 | SCREW - panel | 4 | ||
| 12 | 44-9372 | HARNESS - main | 1 | |
| 44-6451 | CONNECTOR (1-pin, female) | 1 | ||
| 44-6381 | CONNECTOR (1-pin, female) | 2 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 13 | 44-7523 | SOCKET (14-pin) | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 14 | 44-5718 | CONNECTOR (8-pin) | 1 | |
| 15 | 44-5719 | CONNECTOR - remote light box (8-pin) | 1 | |
| 16 | 44-7625 | CONNECTOR - jumper (units w/o Cycle Sentry) | 1 | |
| 17 | 44-9344 | FUSE (15 amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 18 | 44-9374 | HARNESS - modulation | 1 | |
| 19 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 20 | 55-2977 | SCREW - ground | 2 | |
| 55-2993 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1801 | NUT | 4 | ||
| 21 | 33-2128 | GASKET - cover | 1 | |
| 22 | 91-2674 | COVER - thermostat | 1 | |
|
10-91-2674 | Крышка термостата | 9 200 ₽ |
|
| 23 | 91-3609 | NAMEPLATE - gauge panel | 1 | |
| 24 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 25 | 33-628 | GROMMET | 1 | |
| 26 | 45-1579 | MICROPROCESSOR - TG V | 1 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 55-1512 | SCREW - thermostat | 4 | ||
| 27 | 44-8959 | SENSOR - return air | 1 | |
| 28 | 44-5808 | BREAKER - circuit (throttle solenoid) | 1 | |
| 55-3842 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 29 | 33-1606 | GASKET - lamp housing | 1 | |
| 30 | 44-6489 | HOUSING - lamp | 1 | |
| 55-3022 | SCREW - housing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 31 | 44-3711 | BULB | 4 | |
| 32 | 44-6462 | SOCKET - light | 4 | |
| 33 | 44-7054 | TERMINAL - special | 5 |
