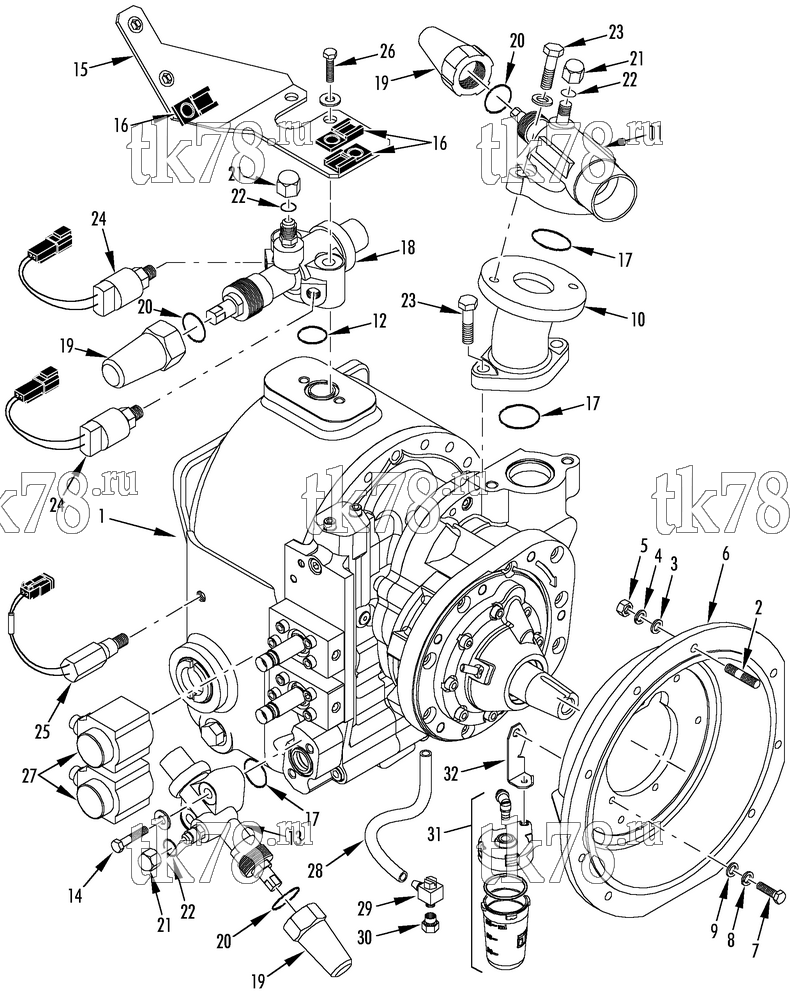

Установкa Thermo King SB-400 30 схема COMPRESSOR GROUP – 171H6
Обновление от: 10/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-851 | COMPRESSOR - screw (w/ 1.187 shaft, see 170E9) | 1 | |
| 2 | 55-1525 | STUD - housing | 8 | |
| 3 | 55-375 | FLATWASHER | 8 | |
| 4 | 55-402 | LOCKWASHER | 8 | |
| 5 | 55-8318 | NUT | 8 | |
| 6 | 22-1041 | FLANGE - compressor mounting | 1 | |
| 7 | 55-6215 | SCREW - flange | 6 | |
| 8 | 55-790 | LOCKWASHER | 6 | |
| 9 | 55-4613 | FLATWASHER | 6 | |
| 10 | 61-5112 | SPACER - suction valve | 1 | |
| 11 | 66-5318 | VALVE - suction (include cap & gasket) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 12 | 33-727 | O-RING - valve | 1 | |
| 13 | 66-6398 | VALVE - service (economizer) | 1 | |
| 14 | 55-7022 | SCREW - valve | 2 | |
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 15 | 92-3258 | BRACKET - discharge valve | 1 | |
| 16 | 44-9906 | TAB - connector | 3 | |
| 55-3136 | RIVET - tab | 3 | ||
| 17 | 33-4359 | O-RING - valve | 3 | |
| 18 | 66-6485 | VALVE - discharge (include cap & gasket) | 1 | |
| 19 | 66-3015 | CAP - valve (brass, incl gasket) | 3 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 66-2296 | CAP - service valve (plastic, incl gasket) | 3 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 20 | 33-350 | GASKET - brass cap | 3 | |
| 33-3007 | GASKET - plastic cap | 3 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 21 | 55-1983 | CAP - flare | 3 | |
| 22 | 33-768 | GASKET - flare | 3 | |
| 23 | 55-2683 | SCREW - valve & spacer | 4 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-8799 | WASHER - special | 4 | ||
| 24 | 41-3669 | SWITCH - hpco (R404A) | 1 | |
|
10-41-3669 | Выключатель высокого давления, SB/SB-III/SL/SLe | 8 900 ₽ |
|
|
PP-41-3669 | Выключатель высокого давления, SB/SB-III/SL/SLe | 1 500 ₽ |
|
| 25 | 41-2843 | SENSOR - temperature (comp discharge) | 1 | |
| 26 | 55-7167 | SCREW - valve | 2 | |
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 27 | 41-4607 | COIL - valve solenoid | 2 | |
| 28 | 11-9225 | HOSE | 1 | |
| 29 | 55-9279 | FITTING - elbow | 1 | |
| 30 | 51-713 | PLUG - fitting | 1 | |
| 31 | 20-182 | KIT - oil collection | 1 | |
| 22-1183 | DEVICE - oil collection | 1 | ||
| 51-967 | ELBOW - swivel (1/8) | 1 | ||
| 33-3742 | GASKET - o-ring (1-3/4) | 1 | ||
| 32 | 92-2946 | BRACKET | 1 | |
| 55-7035 | SCREW - bracket | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 |
