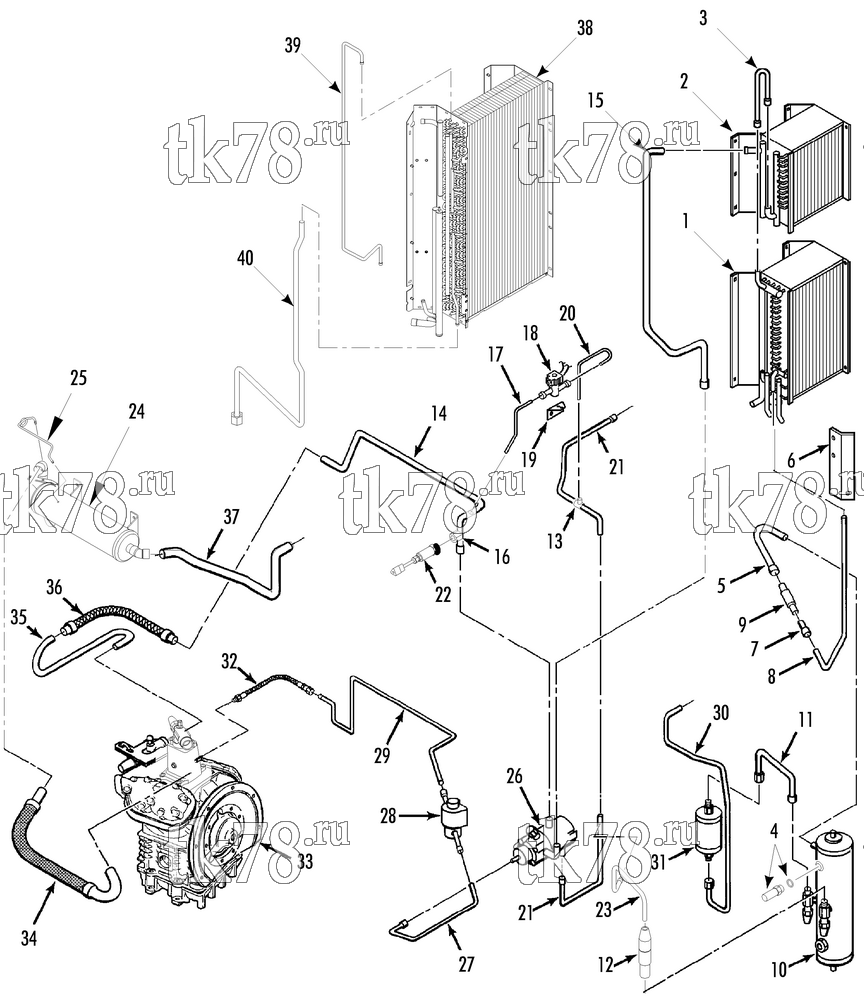

Установкa Thermo King SB-300 30 схема REFRIGERATION - CONDENSER – 161H5
Обновление от: 8/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1687 | COIL - condenser/radiator (see 158G4, before 8/01) | 1 | |
| 2 | 67-1686 | COIL - condenser (upper, before 8/01) | 1 | |
| 3 | 66-9429 | TUBE - connecting coil | 1 | |
| 4 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-9660 | TUBE - valve to tank | 1 | |
| 6 | 92-402 | BRACKET - tube | 1 | |
| 91-759 | CLAMP - tube | 1 | ||
| 55-731 | SCREW - clamp | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 1 | ||
| 7 | 66-4223 | TUBE - valve | 1 | |
| 8 | 61-281 | TUBE - coil to valve | 1 | |
| 9 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 10 | 67-2654 | TANK - receiver (see 153A3) | 1 | |
| 11 | 66-6444 | TUBE - receiver to drier | 1 | |
| 12 | 66-9369 | VALVE - check | 1 | |
| 13 | 55-6434 | TEE | 1 | |
| 14 | 61-1719 | TUBE - discharge to 3-way valve | 1 | |
| 15 | 61-1378 | TUBE - 3-way to condenser | 1 | |
| 16 | 66-6996 | FITTING - saddle | 1 | |
| 17 | 66-9718 | TUBE - solenoid (hot gas inlet) | 1 | |
| 18 | 66-5374 | VALVE - solenoid | 1 | |
| 41-3681 | COIL | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 55-1384 | SCREW | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 19 | 91-2599 | BRACKET - valve | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-6863 | INSERT - threaded | 2 | ||
| 20 | 66-9657 | TUBE - solenoid hot gas outlet | 1 | |
| 21 | 66-9656 | TUBE - hot gas | 1 | |
| 22 | 41-7956 | TRANSDUCER - discharge pressure (w/3-pin connector) | 1 | |
| 41-7959 | TRANSDUCER - discharge pressure (w/4-pin connector) | 1 | ||
| 42-1309 OEM | Трансдьюсер | 13 900 ₽ |
|
|
|
10-42-1309 | Трансдьюсер, SB-XXX/SB-III | 7 140 ₽ |
|
| 23 | 61-398 | TUBE - to receiver tank (defrost) | 1 | |
| 24 | 67-1195 | TANK - accumulator | 1 | |
| 55-529 | SCREW - tank | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 25 | 66-5327 | TUBE - accumulator balance (before 1/01) | 1 | |
| 61-1326 | TUBE - accumulator balance (1/01 & after) | 1 | ||
| 26 | 66-8804 | VALVE - 3-way (see 139A10) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 27 | 66-6023 | TUBE - 3-way to solenoid | 1 | |
| 28 | 66-7636 | VALVE - solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1384 | SCREW - solenoid | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 29 | 66-9658 | TUBE - hose to tee | 1 | |
| 30 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 31 | 61-600 | DEHYDRATOR (see 160A4) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 32 | 61-1831 | HOSE - pilot solenoid | 1 | |
| 33 | NSS | COMPRESSOR (X430, see 154F5) | 1 | |
| 34 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 35 | 66-4987 | TUBE - discharge | 1 | |
| 36 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 37 | 66-7326 | TUBE - exchanger to accumulator | 1 | |
| 38 | 67-2219 | COIL - condenser/radiator (SB-300, 8/01 & after, see 178E0) | 1 | |
| 39 | 61-1318 | TUBE - receiver tank to condenser (SB-300, 8/01 & after) | 1 | |
| 40 | 61-1319 | TUBE - outlet (SB-300, 8/01 - 7/03) | 1 | |
| 61-2969 | TUBE - outlet (SB-300, 7/03 & after) | 1 |
