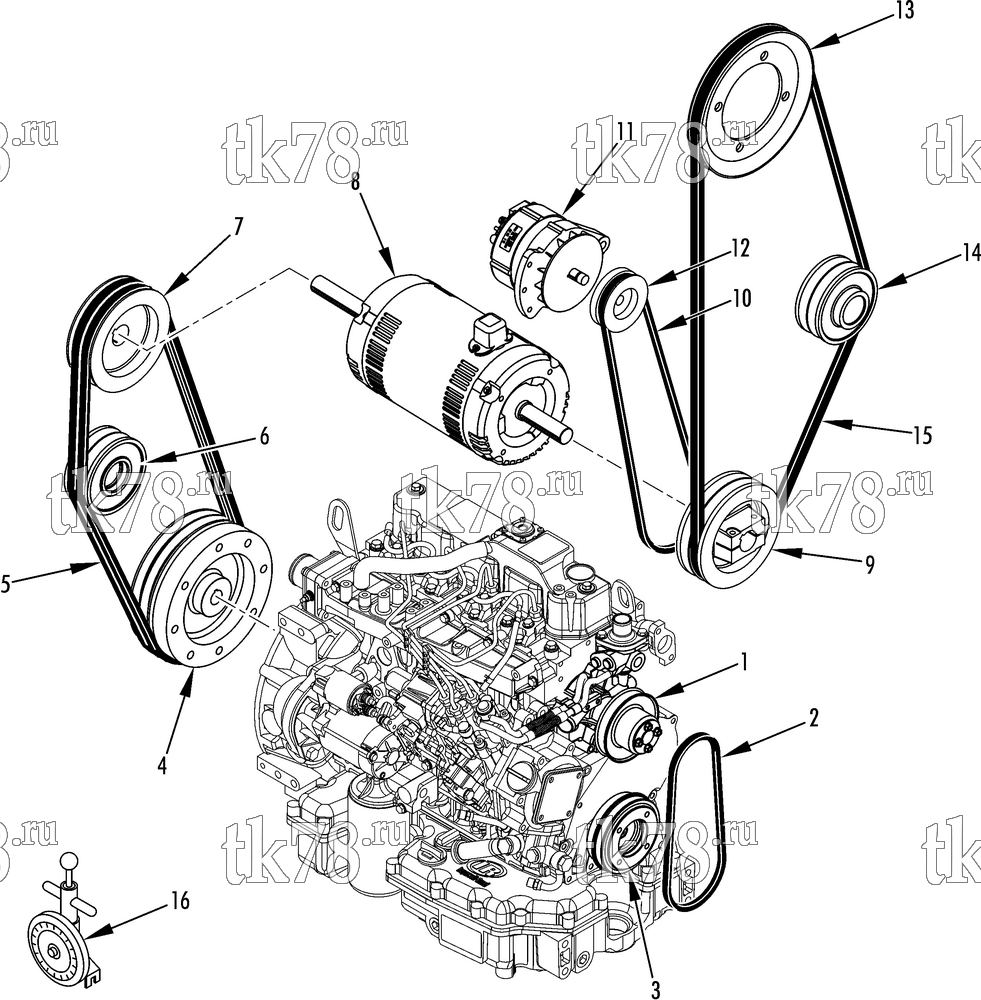

Установкa Thermo King SB-230 & SB-230 RR 30 & 50 схема PULLEYS & BELT GROUP (50s w/ 24 hp motor) – 240D3
Обновление от: 5/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-509 | PUMP - water (ELC compatible) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 2 | 78-1340 | BELT - water pump | 1 | |
|
20-78-1968 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 5 210 ₽ |
|
| 10-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 3 460 ₽ |
|
|
|
PP-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 890 ₽ |
|
| 3 | 13-353 | PULLEY - crankshaft | 1 | |
| 4 | 107-343 | CLUTCH (8-pin, large shaft) | 1 | |
|
10-107-343 | Сцепление, 8 втулок (large shaft) | 130 520 ₽ |
|
| 70-194 | KIT - clutch repair | 1 | ||
| 70-208 | BUSHING - drive (set of 8) | 8 | ||
| 10-70-208 | Втулки муфты сцепления, к-т, SB/SMX/SL/SLe/SLX/SLXe | 19 600 ₽ |
|
|
| 5 | 78-1738 | BELT - compressor drive (matched pair) | 1 | |
| 6 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 7 | 77-2975 | PULLEY - motor | 1 | |
| 55-201 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 8 | 104-785 | MOTOR - 24 hp (see 240D4) | 1 | |
| 44-6785 | CONNECTOR - conduit grip | 1 | ||
| 41-162 | CONDUIT - motor leads | A/R | ||
| 9 | 77-2976 | PULLEY - motor | 1 | |
| 55-201 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 10 | 78-845 | BELT - alternator | 1 | |
| 10-78-845 | Ремень генератора, SB-III/SB-2XX | 2 470 ₽ |
|
|
| PP-78-845 | Ремень генератора, SB-III/SB-2XX | 1 470 ₽ |
|
|
| 11 | 41-2195 | ALTERNATOR (37 amp, see 144C4) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 45-2254 | ALTERNATOR (TK extended life, 37 amp, see 208F4) | 1 | ||
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-2197 | ALTERNATOR (65 amp, see 144C6) | 1 | ||
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 41-3372 | ALTERNATOR (105 amp) | 1 | ||
| 12 | 77-1598 | PULLEY - alternator (37 & 65 amp) | 1 | |
| 77-2978 | PULLEY - alternator (45-2254, 37 amp) | 1 | ||
| 77-2166 | PULLEY - alternator (105 amp) | 1 | ||
| 13 | 77-1842 | PULLEY - blower | 1 | |
| 14 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 15 | 78-1738 | BELT - blower | 1 | |
| 16 | 204-427 | GAUGE - belt tension | 1 |
