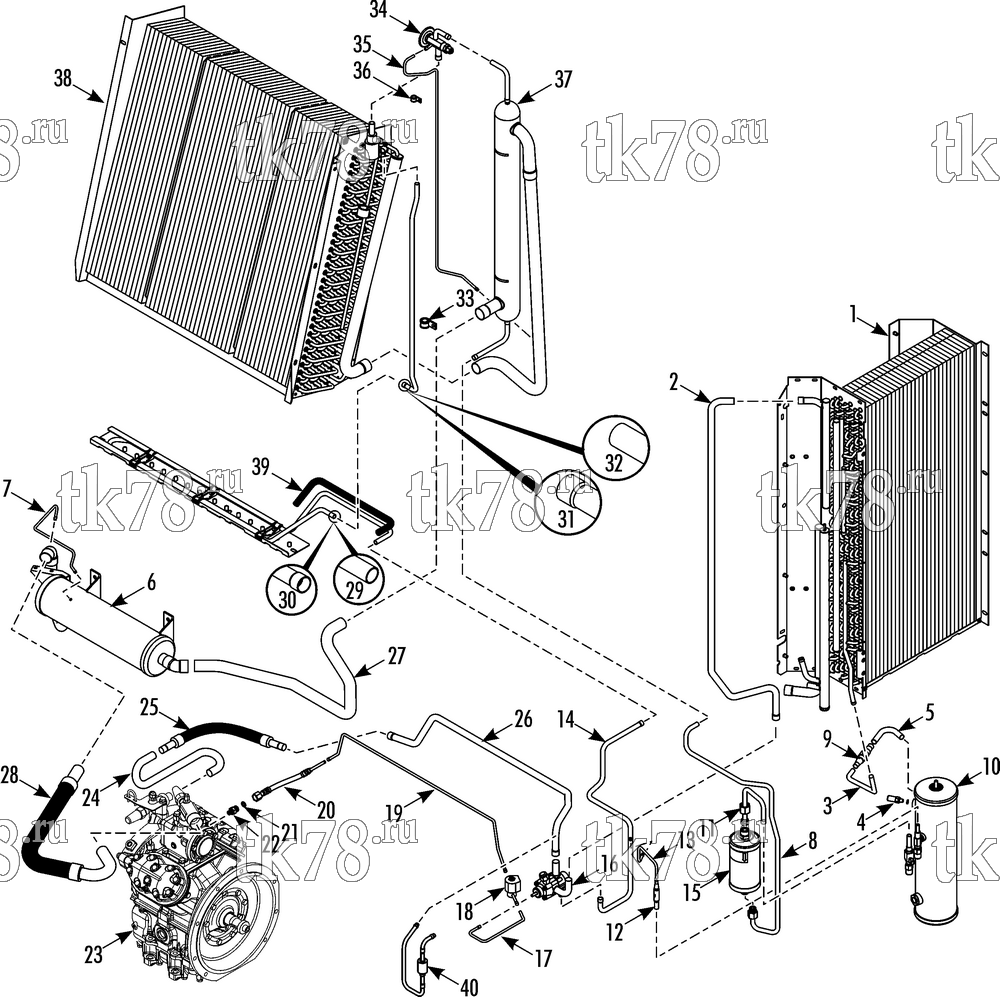

Установкa Thermo King SB-200TG схема REFRIGERATION COMPONENTS – 221G1
Обновление от: 8/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1822 | COIL - condenser/radiator | 1 | |
| 2 | 61-1378 | TUBE - 3-way to condenser | 1 | |
| 3 | 61-1450 | TUBE - coil to check valve | 1 | |
| 4 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-9660 | TUBE - valve to tank | 1 | |
| 6 | 67-1195 | TANK - accumulator | 1 | |
| 7 | 61-2925 | TUBE - accumulator balance | 1 | |
| 55-529 | SCREW - tank | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 8 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 9 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 10 | 67-2654 | TANK - receiver (see 66B4 or 153A3) | 1 | |
| 11 | 66-6444 | TUBE - receiver to drier | 1 | |
| 12 | 66-9369 | VALVE - check | 1 | |
| 13 | 61-398 | TUBE - check valve to tee | 1 | |
| 14 | 66-9954 | TUBE - hot gas | 1 | |
| 15 | 61-600 | DEHYDRATOR (see 160A4) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 16 | 66-8804 | VALVE - 3-way (see 139A10) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 17 | 61-3106 | TUBE - 3-way to solenoid | 1 | |
| 18 | 66-7636 | VALVE - solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1384 | SCREW - solenoid | 2 | ||
| 19 | 66-9658 | TUBE - hose to tee | 1 | |
| 20 | 61-1831 | HOSE - throttling (o-ring) | 1 | |
| 21 | 33-1461 | O-RING - hose | 1 | |
| 22 | 66-8928 | FITTING - o-ring seal | 1 | |
| 23 | NSS | COMPRESSOR - X430 (see 124C11) | 1 | |
| 24 | 66-4987 | TUBE - discharge | 1 | |
| 25 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 26 | 61-1902 | TUBE - discharge to 3-way valve | 1 | |
| 27 | 61-3962 | TUBE - exchanger to accumulator | 1 | |
| 28 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 29 | 67-2276 | DRAIN PAN ASSY (wo/swedge, before 4/08) | 1 | |
| 30 | 67-2371 | DRAIN PAN ASSY (w/swedge, 4/08 & after) | 1 | |
| 92-4707 | PAN - defrost | 1 | ||
| 31 | 61-1786 | TUBE - defrost to distributor (w/swedge, before 4/08) | 1 | |
| 32 | 61-4305 | TUBE - defrost to distributor (wo/swedge, 4/08 & after) | 1 | |
| 33 | 55-2240 | CLAMP - defrost tube | 3 | |
| 34 | 61-1900 | VALVE - expansion | 1 | |
| 66-4453 | SCREEN - outlet | 1 | ||
| 203-428 | TAPE - cork | A/R | ||
| 35 | 61-1787 | TUBE - equalizer | 1 | |
| 36 | 55-5129 | CLAMP - equalizer tube | 2 | |
| 37 | 67-2255 | HEAT EXCHANGER | 1 | |
| 38 | 67-916 | COIL - evaporator | 1 | |
| 55-2969 | SCREW - coil (1.0 in long) | 1 | ||
| 55-3089 | SCREW - coil (1.5 in long) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 39 | 92-4709 | HOSE - sponge | 1 | |
| 40 | 60-493 | KIT - 3-way valve external condenser pressure by-pass check valve | 1 |
