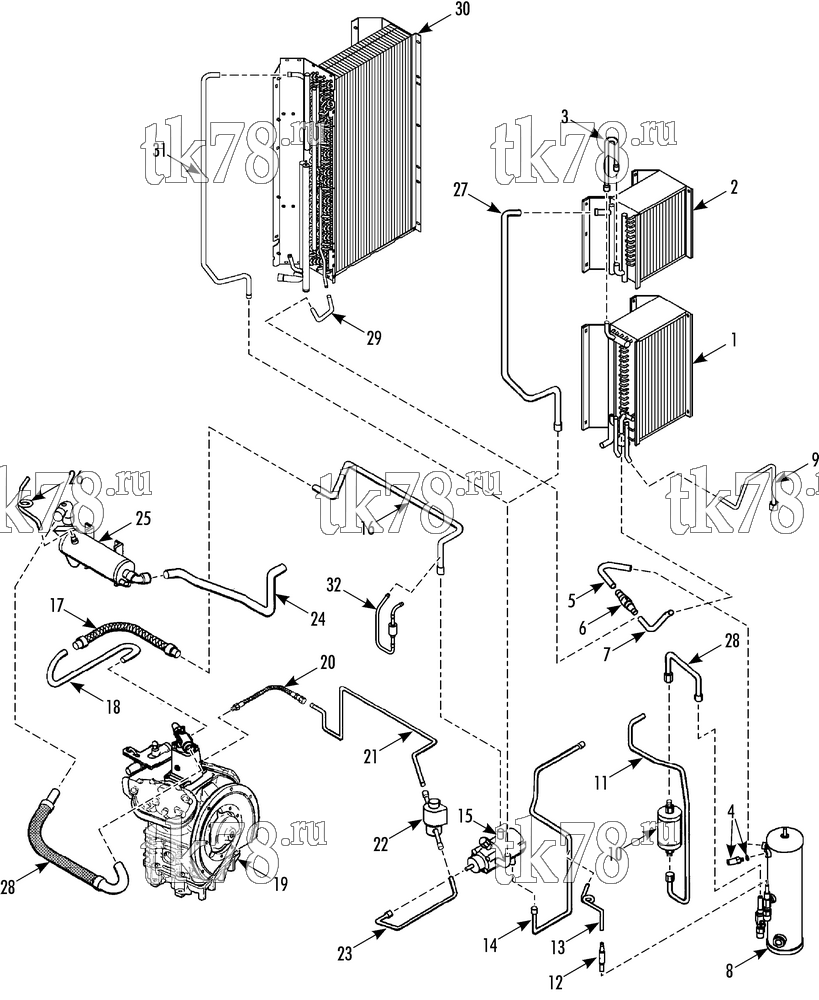

Установкa Thermo King SB-190 30 схема REFRIGERATION - CONDENSER – 166C4
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1743 | COIL - condenser/radiator (before 10/01) | 1 | |
| 2 | 67-1686 | COIL - condenser (upper, before 10/01) | 1 | |
| 3 | 66-9429 | TUBE - connecting coil | 1 | |
| 4 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-9660 | TUBE - valve to tank | 1 | |
| 6 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 7 | 61-807 | TUBE - coil to valve (before 10/01) | 1 | |
| 8 | 67-2654 | TANK - receiver (see 153A3) | 1 | |
| 9 | 61-806 | TUBE - condenser to drier | 1 | |
| 10 | 61-600 | DEHYDRATOR (see 160A4) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 11 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 12 | 66-9369 | VALVE - check | 1 | |
| 13 | 61-398 | TUBE - check valve to tee | 1 | |
| 14 | 66-9954 | TUBE - hot gas | 1 | |
| 15 | 66-8804 | VALVE - 3-way (see 139A10) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 16 | 61-1902 | TUBE - discharge to 3-way valve | 1 | |
| 17 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 18 | 66-4987 | TUBE - discharge | 1 | |
| 19 | 8102-900 | COMPRESSOR - X430 LS C5 (new exchange dry, see 223C5) | 1 | |
| 8102-911 | COMPRESSOR - X426 LS C5 (dry new exchange, see 226C5) | 1 | ||
| 20 | 61-1831 | HOSE - throttling | 1 | |
| 21 | 66-9658 | TUBE - hose to tee | 1 | |
| 22 | 66-7636 | VALVE - solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1384 | SCREW - solenoid | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 23 | 66-6023 | TUBE - 3-way to solenoid | 1 | |
| 24 | 66-7326 | TUBE - exchanger to accumulator (before 12/03) | 1 | |
| 61-3107 | TUBE - exchanger to accumulator (12/03 & after) | 1 | ||
| 25 | 67-1195 | TANK - accumulator | 1 | |
| 55-529 | SCREW - tank | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 26 | 61-1326 | TUBE - accumulator balance | 1 | |
| 27 | 61-1378 | TUBE - 3-way to condenser (before 10/01) | 1 | |
| 28 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 28 | 66-6444 | TUBE - receiver to condenser | 1 | |
| 29 | 61-1450 | TUBE - coil to check valve (10/01 & after) | 1 | |
| 30 | 67-2218 | COIL - condenser/radiator (one piece, 10/01 & after) | 1 | |
| 31 | 61-1378 | TUBE - 3-way to condenser | 1 | |
| 32 | 60-493 | KIT - 3-way valve external condenser pressure by-pass check valve | 1 |
