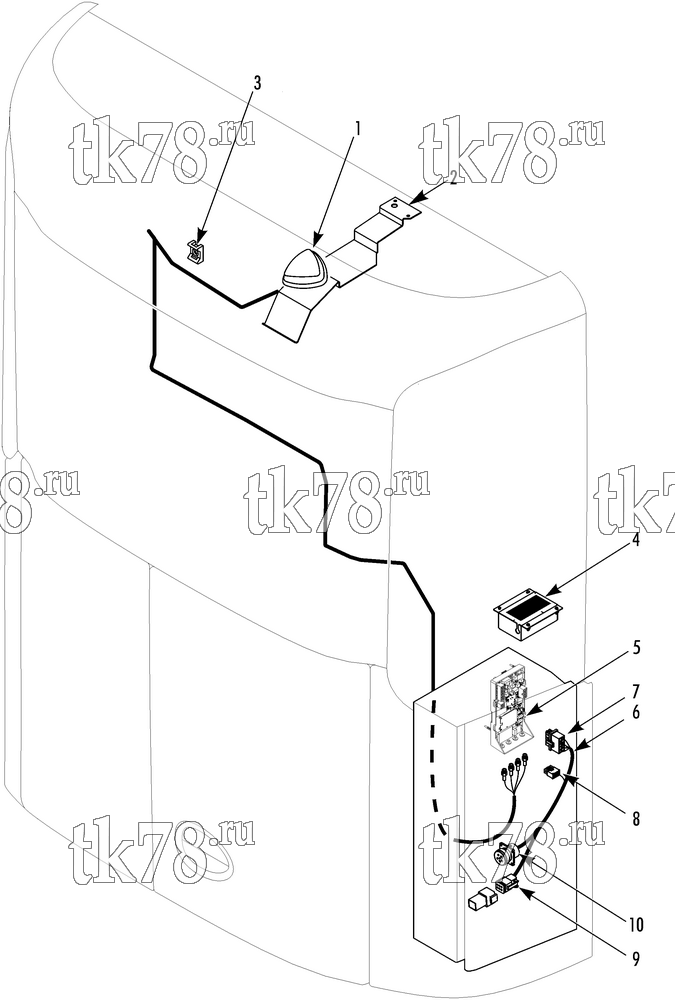

Установкa Thermo King SB-130 30 схема REB ANTENNA & BATTERY – 250D0
Обновление от: 6/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-1136 | KIT - REB iBox | 1 | ||
| 40-1137 | KIT - REB iBox + cellular, | 1 | ||
| 1 | 42-384 | ANTENNA - cellular, WIFI, GPS | 1 | |
| 2 | 92-9700 | BRACKET - antenna | 1 | |
| 55-101 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 203-500 | TAPE - foam | 1 | ||
| 3 | 99-6093 | MOUNT - band wrap | 13 | |
| 51-321 | RIVET - mount | 13 | ||
| 55-2332 | BANDWRAP | 13 | ||
| 4 | 203-788 | BATTERY ASSEMBLY, complete | 1 | |
| 98-8744 | BOLTPLATE - battery box | 1 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-5292 | NUT - battery box | 4 | ||
| 5 | 45-2387 | RADIO EXPANSION BOARD - iBox | 1 | |
| 45-2388 | RADIO EXPANSION BOARD - iBox + cellular | 1 | ||
| 45-2465 | RADIO EXPANSION BOARD - iBox + T-Mobile | 1 | ||
| 45-2466 | RADIO EXPANSION BOARD - iBox + WIFI | 1 | ||
| 45-2444 | RADIO EXPANSION BOARD - iBox + WIFI + T-Mobile | 1 | ||
| 45-2445 | RADIO EXPANSION BOARD - iBox + WIFI + cellular | 1 | ||
| 44-9524 | FUSE (3 amp) | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 51-2132 | SCREW - REB module | 2 | ||
| 6 | 41-9951 | HARNESS - iBox REB (3rd party) | 1 | |
| 41-9171 | HARNESS - iBox REB (3rd party, two way) | 1 | ||
| 7 | 41-9926 | PLUG - REB module (16-pin) | 1 | |
| 33-4798 | GASKET - plug | 1 | ||
| 41-6256 | SEAL | 9 | ||
| 41-5719 | SOCKET (18 ga) | 9 | ||
| 8 | 44-5719 | CONNECTOR - 8-pin (J12) | 1 | |
| 9 | 44-8914 | RECEPTACLE - 6-pin (3rd connector, see 112D9) | 1 | |
| 10 | 41-2405 | CONNECTOR - 5-pin (configuration connector) | 1 | |
| 44-9591 | PIN (18 ga) | 3 | ||
| 44-9602 | PIN - sealing | 2 |
