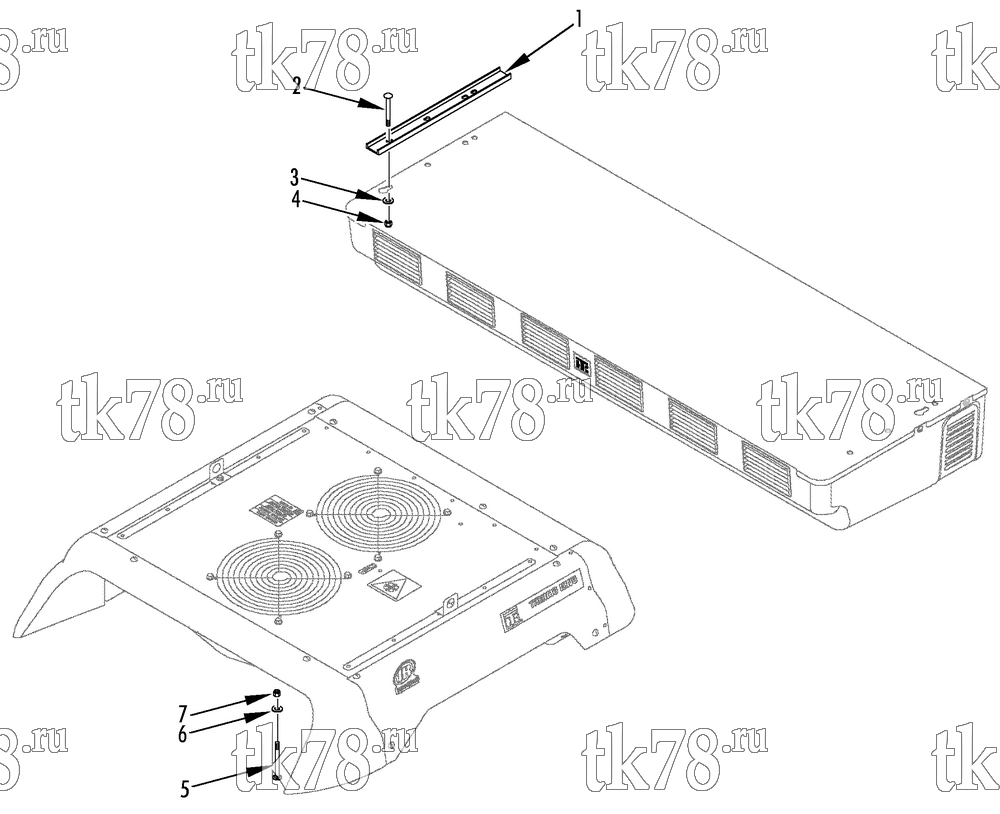

Установкa Thermo King S-40E & S-45C 12V схема UNIT MOUNTING – 188A8
Обновление от: 8/28/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7582 | CHANNEL - evaporator mounting | 4 | |
| 2 | 55-4151 | BOLT - mounting (evaporator) | 8 | |
| 3 | 55-402 | FLATWASHER | 8 | |
| 4 | 55-5078 | NUT | 8 | |
| 5 | 55-7060 | BOLT - mounting (condenser) | 8 | |
| 6 | 55-2641 | FLATWASHER | 8 | |
| 7 | 55-4955 | NUT | 8 |
