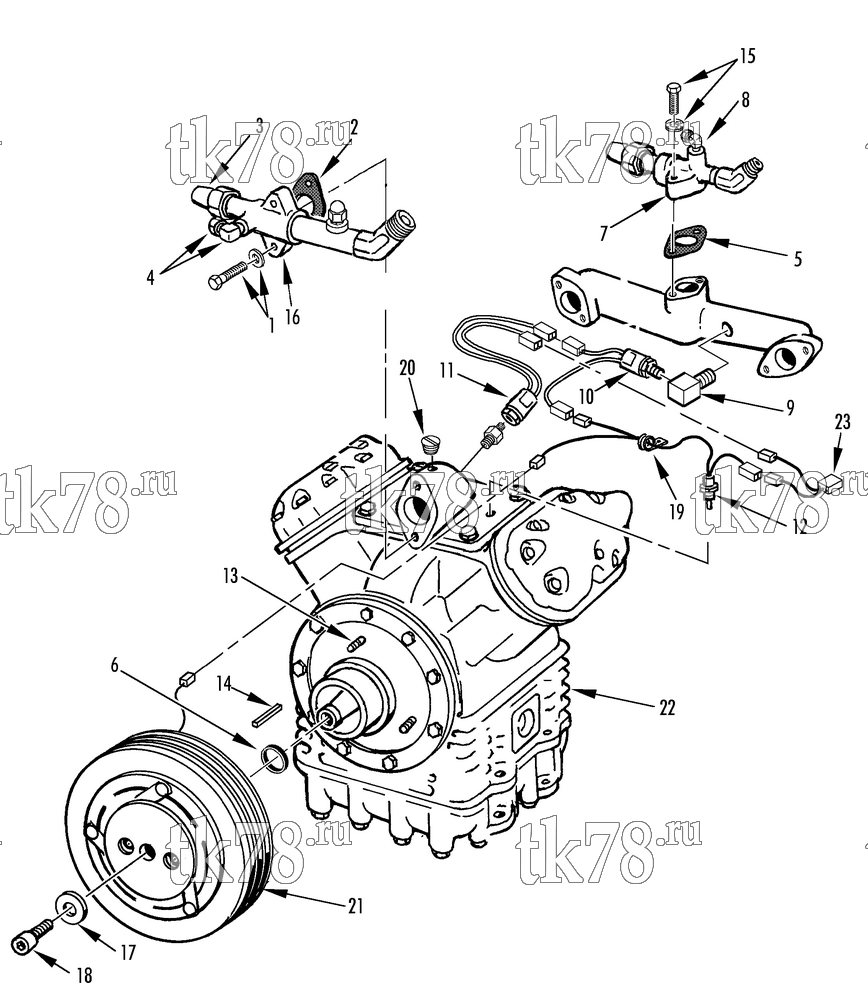

Установкa Thermo King RT-II Series схема COMPRESSOR GROUP (KITS 714760, 714761, 714762, 714768 & 714769) – 139A15
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-201 | SCREW - valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 2 | 33-2541 | GASKET - valve | 1 | |
| 3 | 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 4 | 55-466 | ELBOW - suction valve | 1 | |
| 55-1983 | CAP - elbow | 1 | ||
| 33-768 | GASKET - cap | 1 | ||
| 5 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 6 | 33-2120 | SEAL | 1 | |
|
10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 7 | 66-2140 | VALVE - discharge (incl 3) | 1 | |
| 8 | 55-459 | COUPLING | 2 | |
| 55-1983 | CAP - elbow | 1 | ||
| 33-768 | GASKET - cap | 1 | ||
| 9 | 55-1653 | ELBOW | 1 | |
| 33-768 | GASKET - coupling | 1 | ||
| 10 | 44-6357 | SWITCH - hpco (R134a) | 1 | |
| 44-6312 | SWITCH - hpco (R22) | 1 | ||
| 11 | 44-6356 | SWITCH - lpco | 1 | |
| 12 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 13 | 55-3451 | STUD - clutch | 3 | |
| 14 | 55-9088 | KEY - shaft (1.5 in lg) | 1 | |
| 15 | 55-6776 | SCREW - valve | 2 | |
| 55-6804 | WASHER - special | 2 | ||
| 16 | 66-3576 | VALVE - suction (incl 3) | 1 | |
| 17 | 77-2498 | SPACER - clutch | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 18 | 55-5283 | SCREW - clutch | 1 | |
| 19 | 55-5261 | CLAMP - harness | 3 | |
| 20 | 11-2886 | VALVE (Schrader) | 1 | |
| 55-1983 | CAP - valve | 1 | ||
| 11-7777 | CORE | 1 | ||
| 21 | See Note | CLUTCH (24VDC, see 94G5 & 116B6) | 1 | |
| 77-1663 | PULLEY (2-B/2-A grooves, 7.75/8.9 in od) | 1 | ||
| 22 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 23 | 44-6942 | HARNESS - compressor | 1 |
