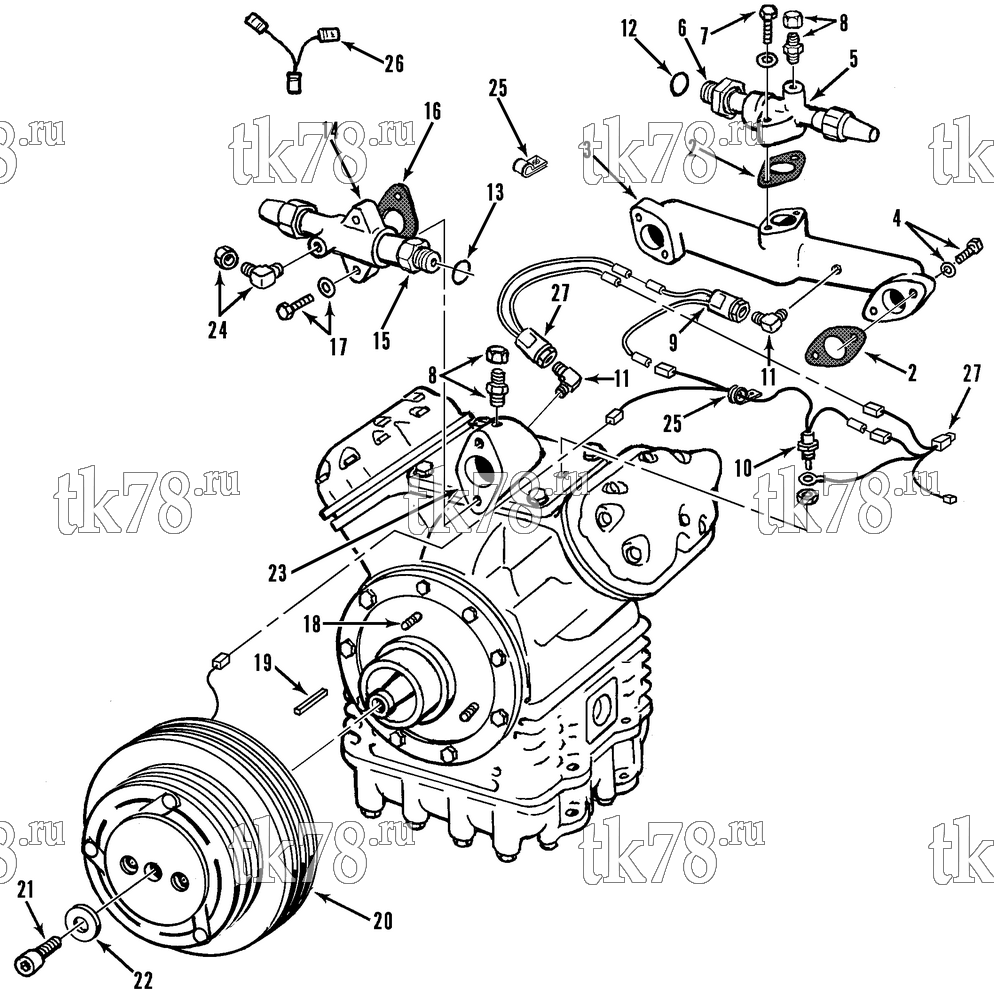

Установкa Thermo King RT-II Series схема COMPRESSOR GROUP (R134a, KIT 714762) – 131D4
Обновление от: 9/17/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-910 | COMPRESSOR - X426 C5 (subassy, see 231C1) | 1 | |
| 2 | 33-2805 | GASKET - manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 22-660 | MANIFOLD - discharge | 1 | |
|
10-22-660 | Коллектор компрессора X430 | 29 550 ₽ |
|
| 4 | 55-6822 | SCREW - manifold | 4 | |
| 55-6804 | WASHER - sealing | 4 | ||
| 5 | 66-8230 | VALVE - discharge (assembly) | 1 | |
| 66-2140 | VALVE - discharge | 1 | ||
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-350 | GASKET - cap | 1 | ||
| 6 | 55-3808 | ADAPTER - tube | 1 | |
| 66-8231 | TUBE - adapter | 1 | ||
| 7 | 55-3149 | SCREW - discharge valve | 2 | |
| 55-6804 | FLATWASHER | 2 | ||
| 8 | 11-2886 | VALVE - service port (Schrader) | 2 | |
| 11-7777 | CORE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 9 | 44-2907 | SWITCH - hpco (300 psi, R134a) | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 44-5834 | SWITCH - only | 1 | ||
| 10 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 11 | 55-459 | COUPLING | 1 | |
| 12 | 33-594 | O-RING - discharge valve | 1 | |
| 13 | 33-544 | O-RING - suction valve | 1 | |
| 14 | 66-3986 | VALVE - suction | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 15 | 55-4185 | ADAPTER - tube | 1 | |
| 66-7967 | TUBE - adapter | 1 | ||
| 16 | 33-2541 | GASKET - suction valve | 1 | |
| 17 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 18 | 55-3451 | STUD - clutch | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT - clutch | 3 | ||
| 19 | 55-9088 | KEY - clutch (1-1/2 in lg) | 1 | |
| 20 | 107-150 | KIT - clutch drive repair ((24VDC, see 116B7) | 1 | |
| 77-1229 | PULLEY (2-B/2-A grooves, 9.0/10.0 in od) | 1 | ||
| 45-271 | FIELD - coil (24VDC) | 1 | ||
| 21 | 55-3631 | SCREW - clutch | 1 | |
| 22 | 77-2498 | SPACER - clutch | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 23 | 66-1896 | ADAPTER - suction valve | 1 | |
| 24 | 55-466 | ELBOW - test port | 1 | |
| 55-1983 | CAP - test port | 1 | ||
| 33-768 | GASKET - flare | 1 | ||
| 25 | 55-5261 | CLAMP - harness | 3 | |
| 26 | 44-6942 | HARNESS | 1 | |
| 27 | 44-3843 | SWITCH - lpco | 1 |
