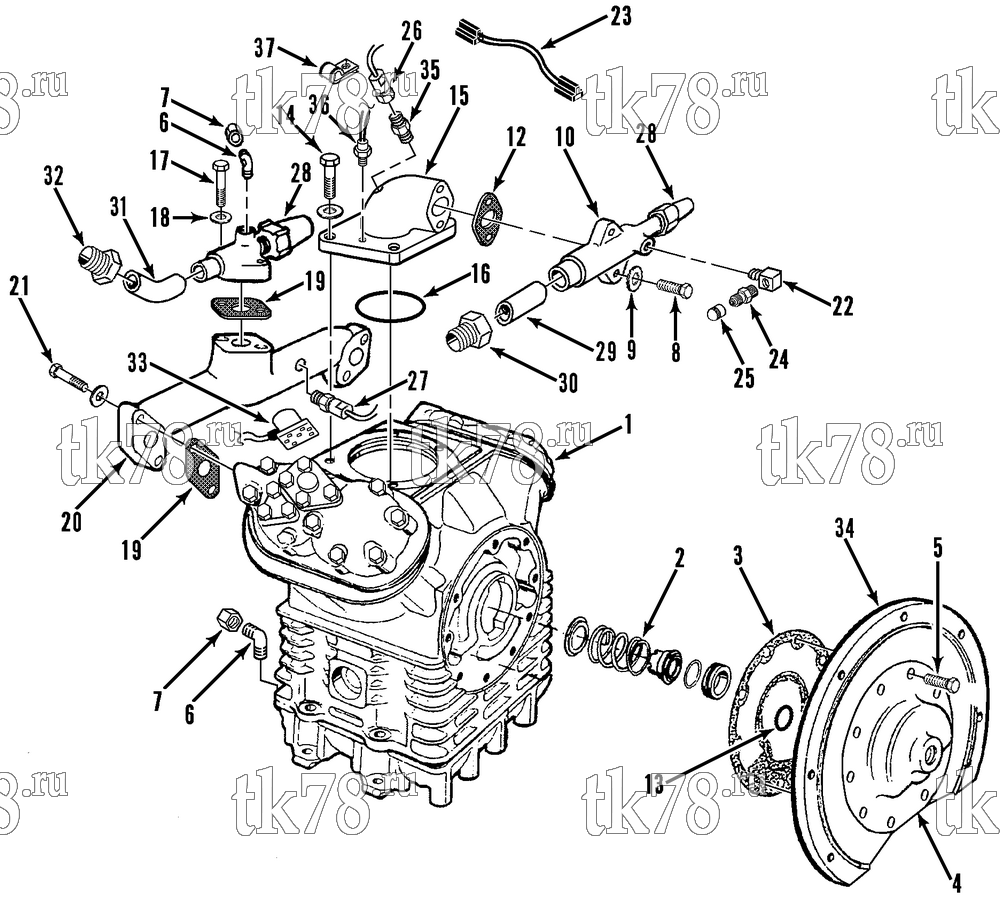

Установкa Thermo King RT-II Series схема COMPRESSOR GROUP (KIT 714761) – 131D11
Обновление от: 9/12/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-909 | COMPRESSOR - X426 C5 w/unloader head (see 242H7) | 1 | |
| 2 | 22-778 | SEAL - crankshaft | 1 | |
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
| 3 | 33-2513 | GASKET - drive end | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 4 | 22-244 | PLATE - drive end | 1 | |
|
10-22-244 | Крышка компрессора Drive Bearing | 13 980 ₽ |
|
| 55-1525 | STUD - cover to ring | 6 | ||
| 55-8318 | NUT | 6 | ||
| 55-375 | LOCKWASHER | 6 | ||
| 55-402 | FLATWASHER | 6 | ||
| 5 | 55-2306 | SCREW - plate | 6 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 6 | 55-308 | ELBOW - test port | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 7 | 55-1983 | CAP - flare | 3 | |
| 33-768 | GASKET - flare | 1 | ||
| 8 | 55-201 | SCREW - valve | 2 | |
| 9 | 55-895 | FLATWASHER | 6 | |
| 10 | 22-312 | VALVE - suction | 1 | |
| 11 | 55-6804 | WASHER - sealing | 2 | |
| 12 | 33-2541 | GASKET - valve | 1 | |
| 13 | 33-235 | O-RING | 1 | |
| 14 | 55-2381 | SCREW - throttling valve | 4 | |
| 55-896 | FLATWASHER | 4 | ||
| 15 | 66-1896 | ADAPTER - suction valve | 1 | |
| 16 | 33-1221 | O-RING - valve | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 17 | 55-6776 | SCREW - discharge valve | 2 | |
| 18 | 66-2140 | VALVE - discharge | 1 | |
| 19 | 33-2805 | GASKET - valve & manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 20 | 22-833 | MANIFOLD - discharge | 1 | |
| 21 | 55-6822 | SCREW - manifold | 4 | |
| 55-896 | FLATWASHER | 4 | ||
| 22 | 55-466 | ELBOW | 1 | |
| 23 | 44-6101 | HARNESS | 1 | |
| 24 | 11-2886 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 25 | 55-5672 | CAP - valve | 1 | |
| 26 | 44-3843 | SWITCH - lpco | 1 | |
| 203-442 | ADHESIVE | A/R | ||
| 27 | 44-6312 | SWITCH - hpco | 1 | |
| 44-6265 | SWITCH (450 psi) | 1 | ||
| 28 | 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 66-8221 | VALVE - suction (incl 10, 28) | 1 | ||
| 29 | 66-8222 | TUBE | 1 | |
| 30 | 55-8208 | ADAPTER (#20) | 1 | |
| 31 | 66-8229 | TUBE | 1 | |
| 32 | 55-7959 | ADAPTER (#16) | 1 | |
| 33 | 22-625 | HEAD - unloader (see 51B2) | 1 | |
| 44-7463 | COIL (24V) | 1 | ||
| 34 | 77-1975 | PLATE - adapter | 1 | |
| 55-5579 | SCREW - plate to engine | 8 | ||
| 55-5411 | LOCKWASHER | 8 | ||
| 35 | 55-459 | COUPLING | 1 | |
| 36 | 44-3842 | DIODE | 1 | |
| 37 | 55-5129 | CLAMP | 2 |
