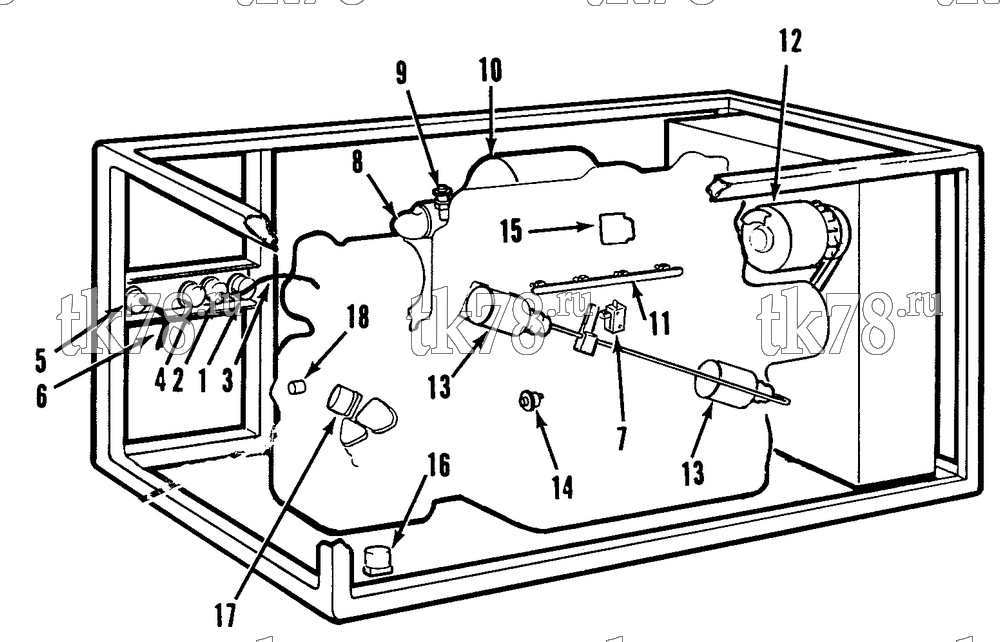

Установкa Thermo King RMU-II M10 RMUE-II M5 схема ELECTRICAL COMPONENTS & GAUGES – 81A7
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7486 | GAUGE - water temperature | 1 | |
| 55-7485 | BUSHING | 1 | ||
| 2 | 44-7485 | GAUGE - oil pressure | 1 | |
|
10-44-7485 | Датчик давления масла | 4 800 ₽ |
|
| 3 | 11-4372 | HOSE - oil pressure gauge (3/8 od x 35 ft, cut to 35 in) | A/R | |
| 10-242 | KIT - sleeve & eyelet (3/8) | 2 | ||
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - hose fitting (3/8) | 2 | ||
| 11-5607 | ELBOW - oil pressure gauge | 1 | ||
| 4 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 5 | 66-527 | GAUGE - compound pressure | 1 | |
|
10-66-527 | Датчик давления | 5 990 ₽ |
|
| 66-214 | RIM - gauge | 1 | ||
| 6 | 55-1253 | COUPLING - gauge | 1 | |
| 91-4588 | NAMEPLATE - gauges | 1 | ||
| 66-6530 | HOSE (1/4 id) | 1 | ||
| 7 | 44-7325 | SWITCH - micro (fan speed) | 1 | |
| 44-7326 | HARNESS - micro switch | 1 | ||
| 99-8137 | BRACKET - microswitch | 1 | ||
| 99-8136 | SUPPORT - microswitch | 1 | ||
| 8 | 845-1285 | STARTER - engine (see engine section) | 1 | |
| 9 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 10 | 104-485 | ALTERNATOR | 1 | |
| 11 | 44-2922 | GLOW PLUG (12V) | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 11-4061 | CONNECTOR - glow plug | 1 | ||
| 12 | 44-6266 | ALTERNATOR (37 amp) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 13 | 44-2823 | SOLENOID - throttle & fuel | 2 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2756 | DIODE - solenoid | 2 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-4720 | WIRE - resistance | 1 | ||
| 14 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 15 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 44-5792 | HARNESS - alternator to regulator | 1 | ||
| 99-9592 | BRACKET - regulator | 1 | ||
| 55-5022 | SCREW - bracket | 2 | ||
| 55-415 | FLATWASHER | 2 | ||
| 55-736 | SCREW - regulator | 3 | ||
| 55-431 | FLATWASHER | 6 | ||
| 55-5292 | NUT | 3 | ||
| 16 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore, see Parts Bulletin 774) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 17 | 22-689 | VALVE - compressor unloader | 1 | |
| 44-6595 | COIL (12V) | 1 | ||
| 18 | 44-5508 | SWITCH - hpco | 1 | |
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
