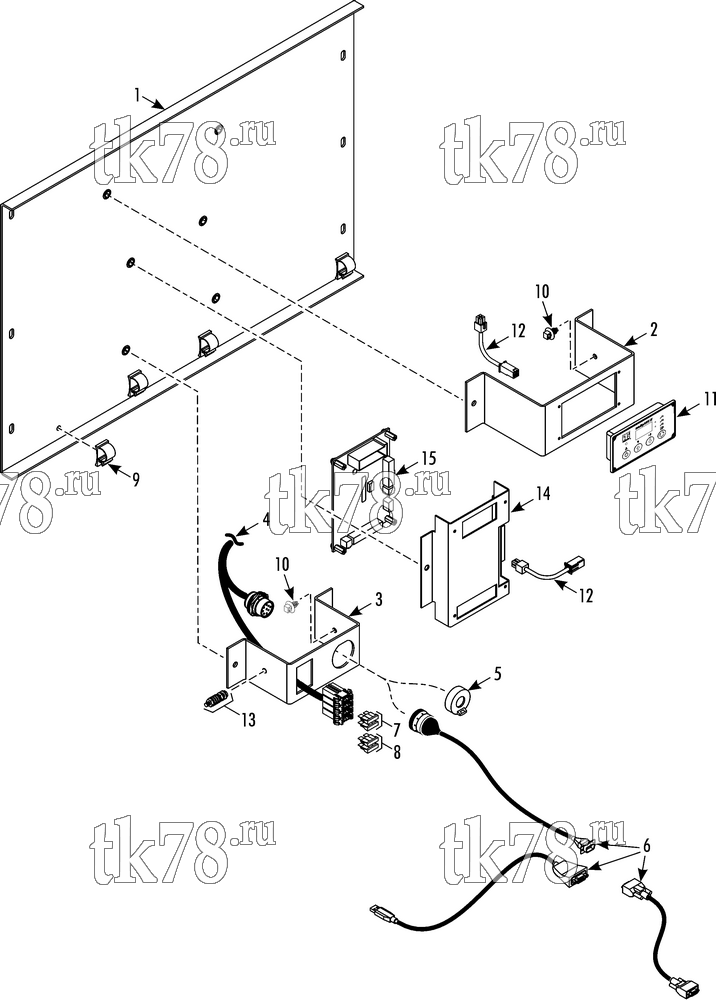

Установкa Thermo King REH-M6 схема CONTROL PANEL ASSEMBLY – 248C1
Обновление от: 10/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8581 | PANEL - control | 1 | |
| 2 | 92-8620 | BRACKET - display | 1 | |
| 3 | 92-8621 | BRACKET - diagnostics | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 4 | 91-6272 | CAP - dust | 1 | |
| 41-7774 | LANYARD - nylon | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 5 | 41-9558 | HARNESS - main, IntelligAIRE III (see 248B0) | 1 | |
| 6 | 204-1927 | KIT - IntelligAIRE III CAN diagnostic | 1 | |
| 7 | 44-9524 | FUSE (3 amp) | 2 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-1292 | FUSE (5 amp) | 2 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 9 | 99-9647 | CLIP - wire | 4 | |
| 10 | 51-1768 | MOUNT - bandwrap | 2 | |
| 11 | 45-2339 | MODULE - display IntelligAIRE III (see 244F2) | 1 | |
| 51-802 | SCREW - display | 4 | ||
| 12 | 41-9432 | HARNESS - resistor (see 244F2) | 2 | |
| 13 | 55-3031 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 3 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 14 | 92-8401 | BRACKET - controller | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 15 | 41-9353 | MODULE - main (IntelligAIRE III) | 1 | |
| 55-2997 | SCREW - module | 8 | ||
| 51-2034 | STANDOFF | 4 | ||
| 55-3014 | LOCKWASHER | 8 | ||
| 55-3013 | FLATWASHER | 8 |
