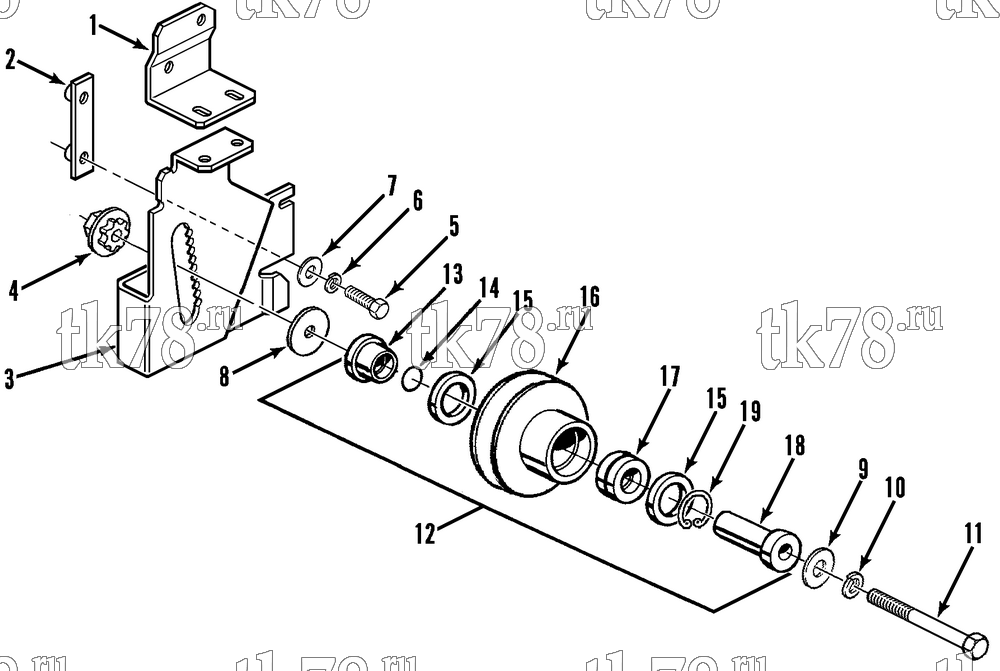

Установкa Thermo King RD-II TLE схема IDLER PULLEY GROUP (Before 12/99) – 150C6
Обновление от: 3/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7561 | BRACKET - upper | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 2 | 91-1274 | NUTSTRIP (2.75 center) | 1 | |
| 91-3214 | NUTSTRIP (3.25 center) | 1 | ||
| 3 | 91-9763 | BRACKET - idler pulley | 1 | |
| 4 | 77-2409 | SPROCKET - pulley | 1 | |
| 5 | 55-2977 | SCREW - bracket | 4 | |
| 6 | 55-1800 | LOCKWASHER | 4 | |
| 7 | 55-2086 | FLATWASHER | 4 | |
| 8 | 55-5871 | WASHER - special | 1 | |
| 9 | 55-2173 | FLATWASHER - pulley | 1 | |
| 10 | 55-2159 | LOCKWASHER | 1 | |
| 11 | 55-4796 | SCREW - pulley | 1 | |
| 12 | 70-199 | PULLEY - idler | 1 | |
|
10-70-199 | Ремкомплект шкива | 17 600 ₽ |
|
| PP-70-199 | Ремкомплект шкива | 7 370 ₽ |
|
|
| 70-173 | KIT - idler pulley repair | 1 | ||
| 70-173 OEM | Р/к ролика натяжителя | 46 230 ₽ |
|
|
| 13 | 33-1163 | RING - seal | 1 | |
| 14 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 15 | 33-1924 | SEAL | 2 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 16 | 77-2408 | PULLEY | 1 | |
| 17 | 77-2389 | BEARING | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 18 | 77-1762 | SPINDLE - idler | 1 | |
| 19 | 55-7437 | RING - retaining | 1 |
