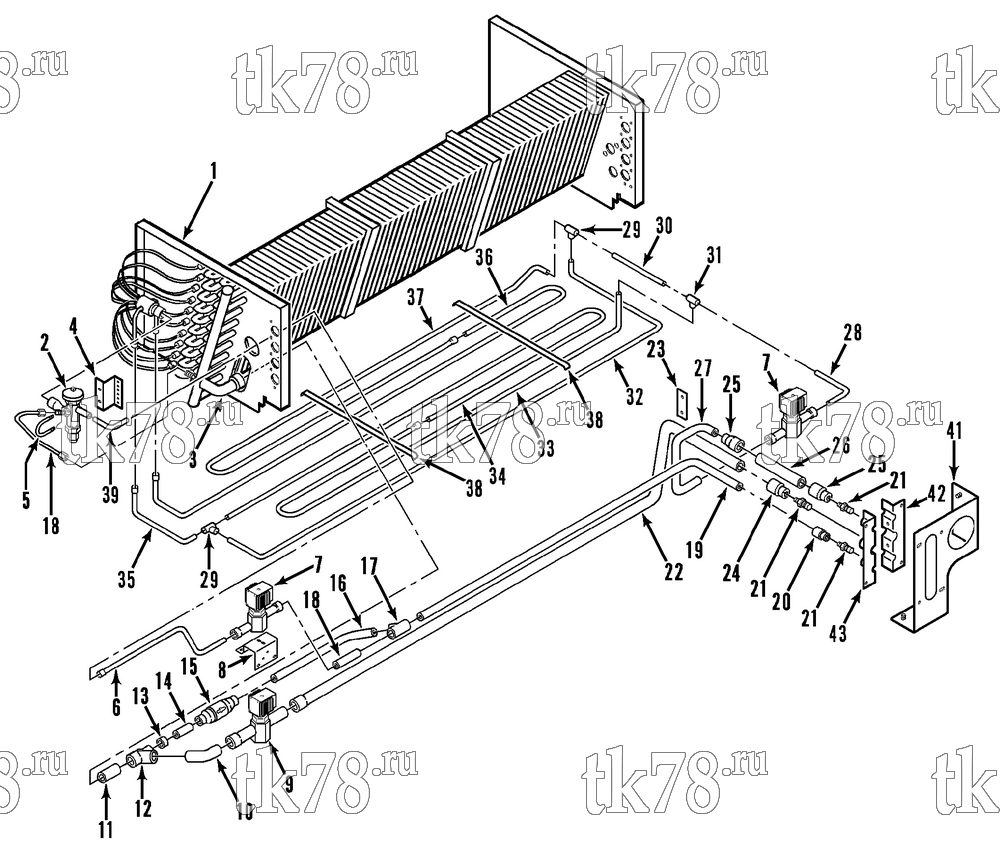

Установкa Thermo King RD-II TCI-Z EMEIA w/TK 3.95 Engine схема REFRIGERATION - EVAPORATOR (ERT) – 134D1
Обновление от: 3/19/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2327 | COIL - evaporator | 1 | |
| 55-5437 | INSERT - threaded | 8 | ||
| 2 | 66-5794 | VALVE - expansion | 1 | |
| 66-3650 | ELEMENT - power | 1 | ||
| 3 | 55-3310 | ELBOW - header | 1 | |
| 66-874 | FITTING | 1 | ||
| 4 | 91-2598 | BRACKET - valve | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 2 | ||
| 5 | 55-4509 | U-BOLT - valve | 1 | |
| 55-4953 | NUT - u-bolt | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 66-8419 | TUBE - solenoid to expansion | 1 | |
| 7 | 66-6102 | VALVE - solenoid (see 116G10, for connectors see 115D14) | 2 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 8 | 91-7584 | BRACKET - valve | 1 | |
| 55-2995 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2002 | LOCKWASHER | 4 | ||
| 9 | 66-6127 | VALVE - solenoid (see 117A1, for connectors see 112D9) | 2 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 10 | 66-8435 | TUBE - tee to valve | 1 | |
| 11 | 66-8431 | TUBE - tee to coil | 1 | |
| 12 | 55-8716 | TEE (1-1/8 x 5/8 x 7/8) | 1 | |
| 13 | 55-2182 | BUSHING | 1 | |
| 14 | 66-8432 | TUBE - bypass | 1 | |
| 15 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 16 | 66-8434 | TUBE - tee to check valve | 1 | |
| 17 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 18 | 66-8433 | TUBE - tee to evaporator | 1 | |
| 19 | 66-8436 | TUBE - tee to valve | 1 | |
| 20 | 55-8432 | COUPLING | 1 | |
| 21 | 66-6401 | VALVE | 1 | |
| 22 | 66-8437 | TUBE - suction | 1 | |
| 23 | 91-7586 | BRACKET - defrost switch | 1 | |
| 24 | 55-7500 | COUPLING - reducing | 1 | |
| 25 | 55-3627 | COUPLING - reducing | 2 | |
| 26 | 66-8423 | TUBE - defrost | 1 | |
| 27 | 66-8421 | TUBE - coupling to valve | 1 | |
| 28 | 66-8422 | TUBE - valve to tee | 1 | |
| 29 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 2 | |
| 30 | 66-8430 | TUBE - defrost | 1 | |
| 31 | 55-6218 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 32 | 66-8429 | TUBE - tee to tee | 1 | |
| 33 | 66-8424 | TUBE - defrost | 1 | |
| 34 | 66-8425 | TUBE - defrost to tee | 1 | |
| 35 | 66-8426 | TUBE - tee to expansion valve | 1 | |
| 36 | 66-8427 | TUBE - defrost to expansion valve | 1 | |
| 37 | 66-8428 | TUBE - tee to defrost | 1 | |
| 38 | 91-7585 | CHANNEL - stabilizer | 2 | |
| 99-5966 | STRIP (neoprene, bulk) | A/R | ||
| 39 | 66-8420 | TUBE - tube to expansion valve | 1 | |
| 40 | 66-4679 | TUBE - equalizer | 1 | |
| 41 | 91-7583 | BRACKET - tubes | 1 | |
| 55-2991 | SCREW - bracket | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 42 | 91-3336 | BRACKET - tube | 1 | |
| 43 | 91-3337 | BRACKET - tube | 1 | |
| 55-3000 | SCREW - clamp | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 |
