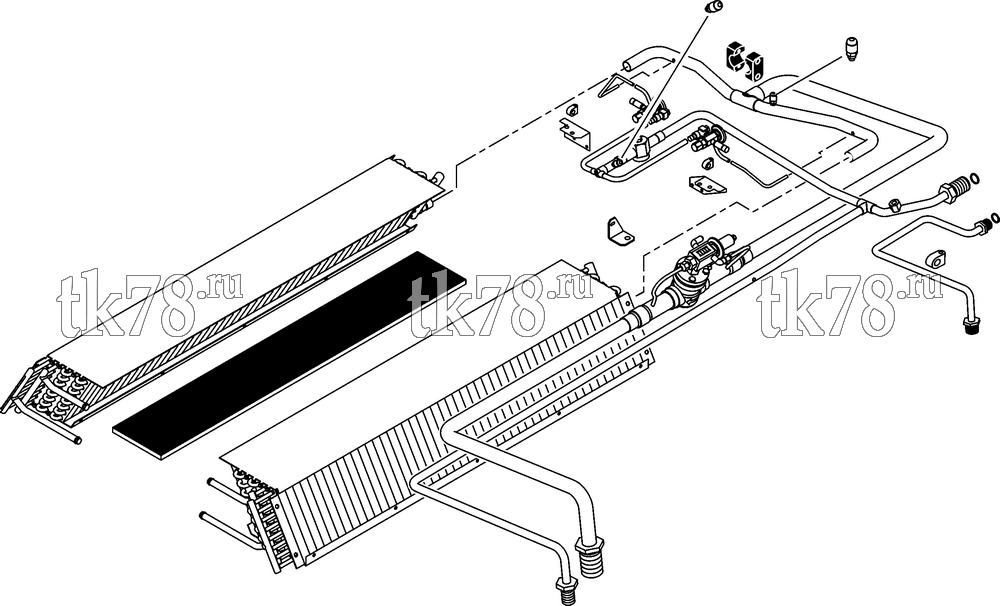

Установкa Thermo King R5-M32 схема REFRIGERATION EVAPORATOR – 193C3
Обновление от: 8/23/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 55-2991 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-6721 | INSERT | 20 | ||
| 91-8127 | STRIP - sealing | A/R | ||
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1819 | VALVE - expansion | 2 | |
| 66-4213 | ELEMENT | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 6 | 61-1308 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 66-9861 | TUBE - indicator to tee | 1 | |
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 10 | 61-1313 | TUBE - adapter to indicator | 1 | |
| 11 | 66-4139 | FITTING - saddle | 1 | |
| 12 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 55-6812 | NUT - adapter | 1 | ||
| 55-9146 | LOCKWASHER | 1 | ||
| 13 | 61-1897 | TUBE - coil to tee | 2 | |
| 14 | 66-9842 | FITTING | 1 | |
| 15 | 55-6508 | TEE | 1 | |
| 16 | 61-1899 | TUBE - tee to epr valve | 1 | |
| 55-3307 | BUSHING - tube | 1 | ||
| 17 | 55-7143 | CLAMP - expansion valve | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 66-5752 | FITTING - header | 1 | |
| 19 | 66-5136 | VALVE - epr (see 129C13) | 1 | |
| 55-4488 | HANGER - valve | 1 | ||
| 55-3462 | SCREW - hanger (1/4-20 x 2.0 in lg) | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2977 | SCREW - hanger (1/4-20 x 1.0 in lg) | 1 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-6526 | INSERT | 1 | ||
| 55-4953 | NUT | 1 | ||
| 20 | 66-7903 | TUBE - bypass | 1 | |
| 21 | 66-4102 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - shutoff valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-7062 | INSERT | 2 | ||
| 22 | 66-7902 | TUBE - bypass | 1 | |
| 23 | 91-6048 | BAFFLE - drain pan (foam, 8.4 in wide x 38.9 in lg) | 1 | |
| 91-6049 | BAFFLE - drain pan (foam, 8.4 in wide x 38.9 in lg) | 1 | ||
| 24 | 66-7910 | TUBE - epr to adapter | 1 | |
| 33-489 | GROMMET (1.25 in id) | 1 | ||
| 25 | 55-8373 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5923 | NUT - bulkhead | 1 | ||
| 55-5742 | LOCKWASHER (2.0 id) | 1 | ||
| 26 | 66-9025 | TUBE - discharge | 1 | |
| 27 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 28 | 66-9031 | TUBE - discharge | 1 | |
| 55-7380 | ADAPTER - bulkhead (#16) | 1 | ||
| 55-5740 | NUT - bulkhead (#16) | 2 | ||
| 29 | 66-9842 | VALVE | 1 | |
| 30 | 61-1898 | TUBE - coil to tee | 1 | |
| 31 | 92-1345 | BRACKET - sight glass | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 32 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 33 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 91-372 | CLAMP - tube | 1 | ||
| 55-3462 | SCREW - clamp | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-6526 | INSERT | 4 | ||
| 34 | 91-5143 | CLAMP - tube | 1 | |
| 92-3265 | SPACER - plate | 1 | ||
| 91-6158 | PLATE - clamp | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 35 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 36 | 33-1785 | O-RING (15/16 id) | 2 | |
| 37 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
