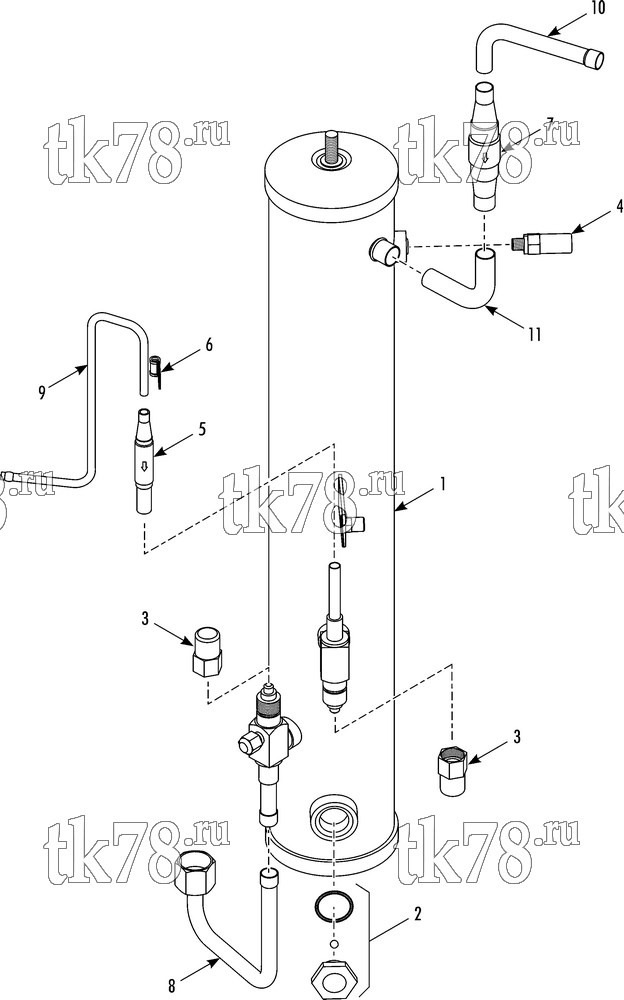

Установкa Thermo King PRECEDENT C-600 схема RECEIVER TANK – 261G1
Обновление от: 9/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2687 | TANK - receiver | 1 | |
| 2 | 67-2668 | INDICATOR - liquid | 1 | |
| 66-9257 | BALL | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 3 | 66-343 | CAP - valve | 2 | |
| 55-581 | WASHER - cap | 2 | ||
| 4 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 5 | 66-9369 | VALVE - check | 1 | |
| 6 | 55-2536 | CLAMP - tube | 1 | |
| 51-2199 | SCREW - clamp | 1 | ||
| 7 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 8 | 61-5987 | TUBE - receiver to dehydrator | 1 | |
| 9 | 61-5986 | TUBE - valve to tube | 1 | |
| 10 | 61-5985 | TUBE - coil to check valve | 1 | |
| 11 | 61-5984 | TUBE - valve to receiver | 1 |
