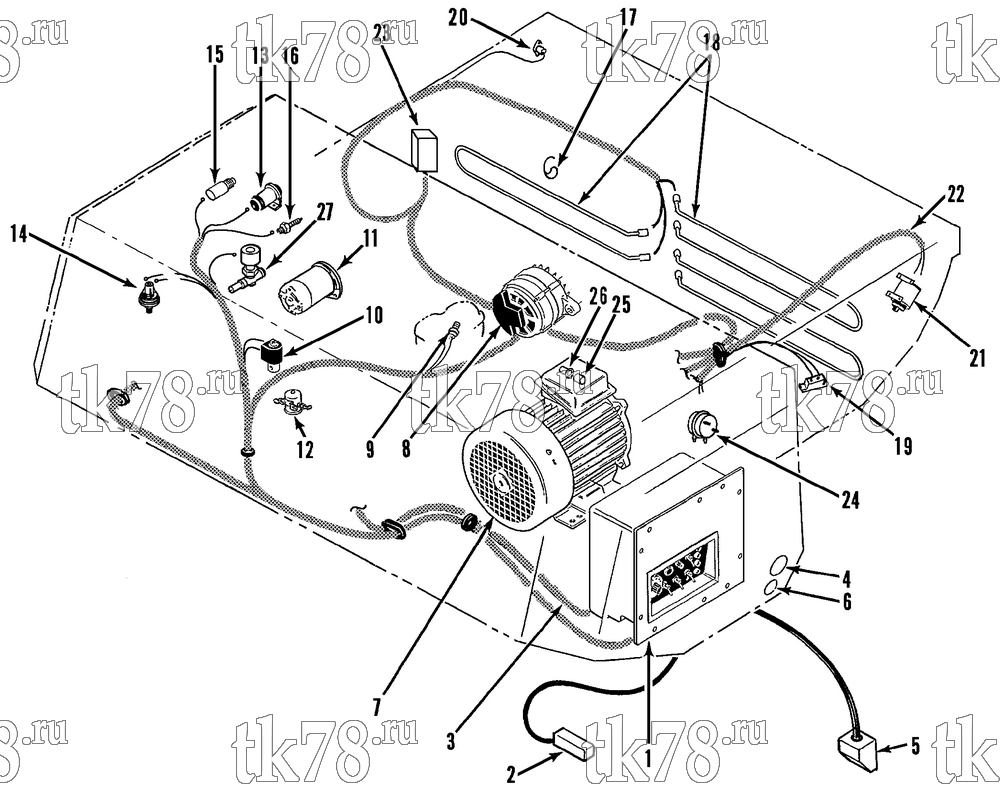

Установкa Thermo King PGM MAX & PGM-II MAX схема ELECTRICAL COMPONENTS – 117E11
Обновление от: 1/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4306 | BOX - control (see 112B12) | 1 | |
| 2 | 44-9217 | BOX - control (remote cab, F, see 101G8) | 1 | |
| 3 | 41-129 | HARNESS - main (see 101G5, for connectors see 115D14) | 1 | |
| 4 | 61-3467 | THERMOMETER - analog (white, F/C, see 125F1) | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 5 | 99-9501 | BOX - power receptacle (see 101G10) | 1 | |
| 6 | 44-9259 | HOURMETER (analog, see 125F1) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 7 | 104-774 | MOTOR - standby (220-230-380-460/3/50-60, see 126F4) | 1 | |
| 55-2788 | FITTING - barb | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 8 | 41-2194 | ALTERNATOR (23 amp, model 8MR, see 77B12) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 9 | 41-3846 | SWITCH - hpco (R502, R404A) | 1 | |
| 44-7992 | SWITCH - hpco (R12) | 1 | ||
| 44-9137 | SWITCH - hpco (R134a) | 1 | ||
| 10 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 11 | 10-301 | KIT - starter & flywheel (see note) | 1 | |
| 12 | 44-4397 | SOLENOID - starter | 1 | |
| 55-1587 | SCREW - solenoid | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 13 | 44-9165 | SOLENOID - speed control (see 101C13) | 1 | |
| 14 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 15 | 44-9230 | SOLENOID - choke (see 101C13) | 1 | |
| 16 | 44-8932 | SPARK PLUG (see 101C4) | 2 | |
| 17 | 91-240 | RETAINER - heater | 12 | |
| 18 | 45-1374 | HEATER | 3 | |
| 44-7187 | HARNESS - heater | 1 | ||
| 19 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5636 | SCREW - switch | 2 | ||
| 20 | 44-3627 | SWITCH - high temperature cutout (50 units only) | 1 | |
| 21 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 22 | 44-8040 | HARNESS - evaporator | 1 | |
| 23 | 99-9459 | BOX - junction (heaters) | 1 | |
| 44-4530 | COVER - box | 1 | ||
| 24 | 66-6243 | SWITCH - air pressure (see 125F5) | 1 | |
| 25 | 41-1105 | SLEEVE - crimp | 8 | |
| 26 | 44-6646 | CAP - wrap | 8 | |
| 27 | 61-283 | VALVE - solenoid (liquid, see 101C12) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 |
