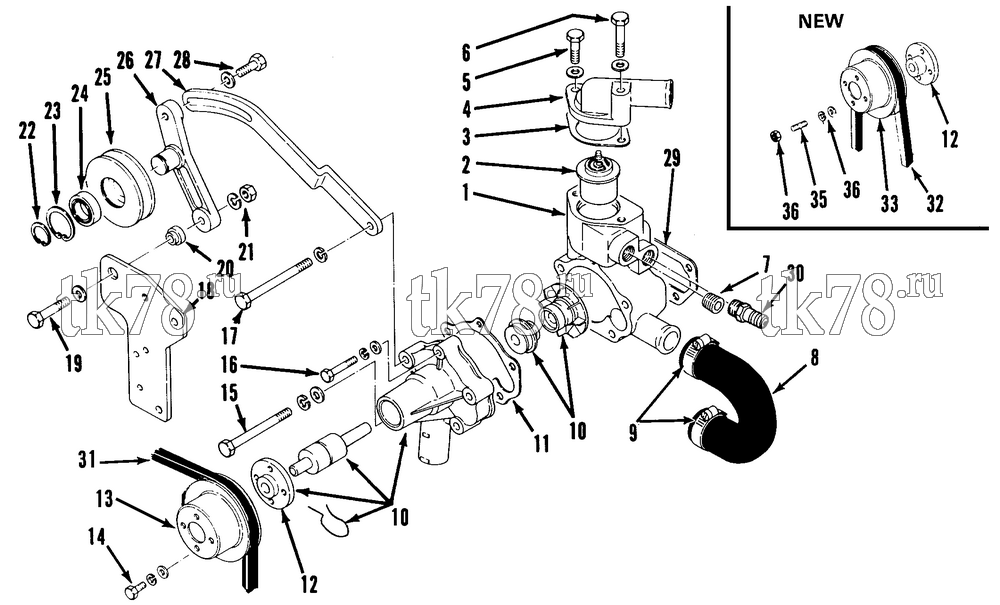

Установкa Thermo King MD-I схема WATER PUMP ASSEMBLY (TK 2.35 Engine) – 49C10
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5122 | HOUSING | 1 | |
| 2 | 11-9621 | THERMOSTAT | 1 | |
|
10-11-9621 | Термостат, Yanmar 235 / 353 / 388 / 395 | 5 730 ₽ |
|
| PP-11-9621 | Термостат, Yanmar 235 / 353 / 388 / 395 | 4 670 ₽ |
|
|
| 3 | 33-1520 | GASKET | 1 | |
|
10-33-1520 | Прокладка термостата, Yanmar 235 / 353 / 388 / 395 | 510 ₽ |
|
| 4 | 11-5124 | COVER - thermostat | 1 | |
| 5 | 55-4611 | BOLT (28 mm lg) | 1 | |
| 55-4612 | BOLT (40 mm lg) | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 7 | 55-4656 | PLUG | 2 | |
| 8 | 11-5046 | HOSE (neoprene) | 1 | |
| 11-5238 | HOSE (silicone) | 1 | ||
| 9 | 55-3402 | CLAMP - hose | 2 | |
| 10 | 13-508 | PUMP - water | 1 | |
|
10-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 14 920 ₽ |
|
|
PP-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 7 560 ₽ |
|
| 813-508 | KIT - water pump repair (reman) | 1 | ||
| 11 | 33-1527 | GASKET | 1 | |
| 12 | 77-1434 | FLANGE - pump | 1 | |
| 13 | 77-1311 | PULLEY | 1 | |
| 14 | 55-4646 | SCREW - pulley | 4 | |
| 55-4608 | LOCKWASHER | 4 | ||
| 15 | 55-4648 | SCREW - water pump (85 mm) | 3 | |
| 16 | 55-4655 | SCREW - water pump (35 mm) | 1 | |
| 17 | 55-4654 | SCREW - bracket & pump (90 mm) | 1 | |
| 55-790 | LOCKWASHER | 5 | ||
| 55-4613 | FLATWASHER | 5 | ||
| 18 | 99-5787 | BRACKET - alternator | 1 | |
| 19 | 55-4612 | BOLT - idler bracket | 1 | |
| 55-4613 | FLATWASHER | 1 | ||
| 20 | 55-5198 | SPACER - idler bracket | 1 | |
| 21 | 55-790 | LOCKWASHER | 1 | |
| 55-4621 | NUT | 1 | ||
| 22 | 55-4657 | CIRCLIP | 1 | |
| 23 | 55-4658 | CIRCLIP | 1 | |
| 24 | 11-5048 | BEARING | 1 | |
| 25 | 77-1303 | PULLEY - idler (incl 22-26) | 1 | |
| 77-1312 | PULLEY | 1 | ||
| 26 | 11-5126 | BRACKET - idler | 1 | |
| 27 | 11-5049 | ADJUSTER - arm | 1 | |
| 28 | 55-1140 | SCREW - arm | 1 | |
| 55-4613 | FLATWASHER | 1 | ||
| 29 | 33-4335 | GASKET - housing | 1 | |
| 30 | 55-4180 | ADAPTER - hose | 1 | |
| 31 | 78-503 | BELT - water pump (3 pulley system) | 1 | |
| 10-78-503 | Ремень водяной помпы, MD/KD/RD-I | 4 460 ₽ |
|
|
| 32 | 78-513 | BELT - water pump (2 pulley system) | 1 | |
| 33 | 77-1426 | PULLEY - split sheave | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 77-1428 | SPACER - split pulley | 1 | ||
| 34 | 77-1427 | SHIM (1 mm) | A/R | |
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 35 | 55-5138 | STUD - pulley | 4 | |
| 36 | 55-4750 | NUT | 4 | |
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4607 | FLATWASHER | 4 | ||
| 30-174 | GASKET SET - overhaul | 4 | ||
|
10-30-174 | Набор прокладок, Yanmar 235, KD/MD/RD-I | 16 910 ₽ |
|
