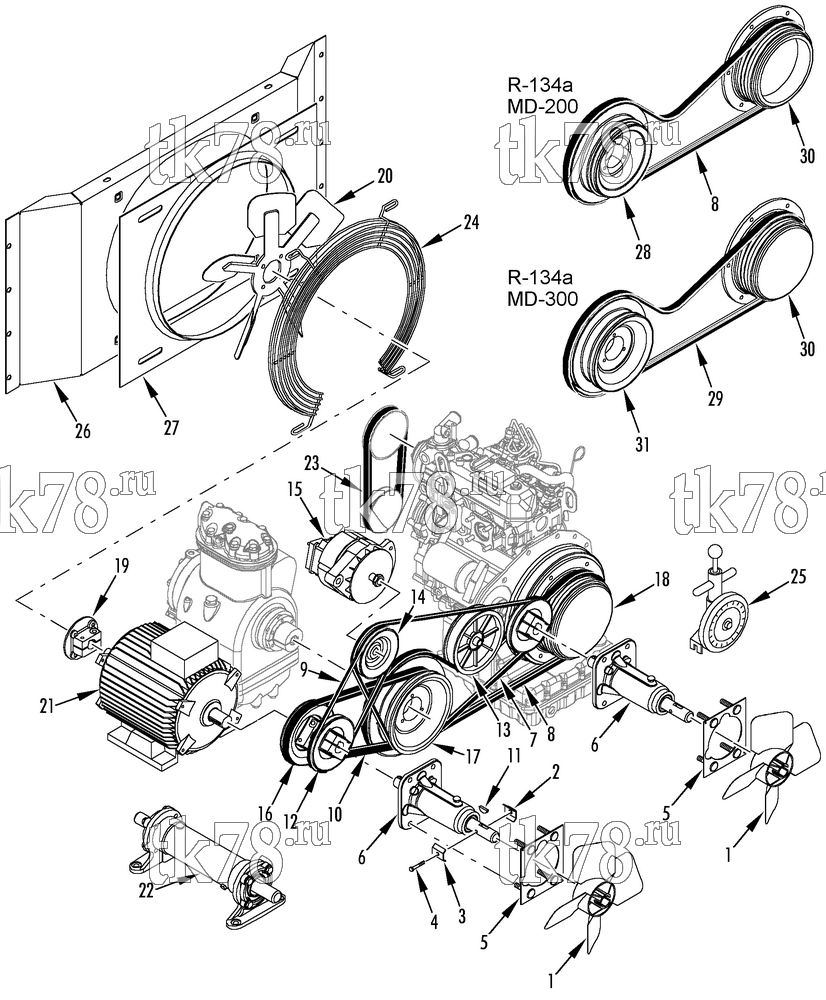

Установкa Thermo King MD-200 w/TK 3.74 Engine схема BELTS, PULLEYS & FAN GROUP – 191C6
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-558 | FAN - evaporator | 2 | |
| 78-558 OEM | Крыльчатка | 6 520 ₽ |
|
|
|
10-78-558 | Крыльчатка | 6 180 ₽ |
|
| 2 | 77-1522 | CLIP - fan hub | 2 | |
| 3 | 77-1464 | CLIP - fan | 2 | |
| 4 | 55-3675 | SCREW - fan | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 99-3261 | BOLTPLATE - fanshaft | 2 | |
| 6 | 78-782 | FANSHAFT - assembly (see 77A3) | 2 | |
| 55-2641 | FLATWASHER | 8 | ||
| 55-4955 | NUT - fanshaft | 8 | ||
| 7 | 78-684 | BELT - evaporator fan | 1 | |
| 10-78-684 | Ремень вентилятора, MD-XXX/KD-II/MD-II/TD-II | 7 090 ₽ |
|
|
| PP-78-684 | Ремень вентилятора, MD-XXX/KD-II/MD-II/TD-II | 2 000 ₽ |
|
|
| 8 | 78-1366 | BELT - engine | 1 | |
| 10-78-1366 | Ремень компрессора, MD-200 | 10 310 ₽ |
|
|
|
PP-78-1366 | Ремень компрессора, MD-200 | 5 140 ₽ |
|
| 9 | 78-700 | BELT - alternator to evaporator fan | 1 | |
| 10-78-700 | Ремень вентилятора, MD-XXX/KD-II/MD-II | 3 800 ₽ |
|
|
|
PP-78-700 | Ремень вентилятора, MD-XXX/KD-II/MD-II | 1 380 ₽ |
|
| 10 | 78-936 | BELT - motor to jackshaft (compressor) | 1 | |
| 10-78-936 | Ремень компрессор - промвал / электромотор, KD-II/MD-II/MD-XXX | 5 900 ₽ |
|
|
| PP-78-936 | Ремень компрессор - промвал / электромотор, KD-II/MD-II/MD-XXX | 1 680 ₽ |
|
|
| 11 | 55-457 | KEY - pulley | 2 | |
| 12 | 77-1697 | PULLEY - evaporator fan | 2 | |
| 55-6220 | SCREW - pulley | 6 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 13 | 70-199 | PULLEY - idler (see 205C3) | 1 | |
|
10-70-199 | Ремкомплект шкива | 17 600 ₽ |
|
| PP-70-199 | Ремкомплект шкива | 7 370 ₽ |
|
|
| 14 | 77-1703 | PULLEY - alternator | 1 | |
| 15 | 41-2194 | ALTERNATOR (23 amp, see 143E14) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2195 | ALTERNATOR (37 amp, see 144C4) | 1 | ||
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 16 | 77-1826 | PULLEY - motor (TSA) | 1 | |
| 77-1754 | PULLEY - motor (EMEIA) | 1 | ||
| 77-1980 | PULLEY - motor (single phase) | 1 | ||
| 77-1985 | PULLEY - jackshaft | 1 | ||
| 55-6220 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 17 | 77-1984 | PULLEY - compressor | 1 | |
| 77-2537 | BUSHING - pulley | 1 | ||
| 70-184 | KIT - screws & washers | 1 | ||
| 55-455 | KEY - pulley | 1 | ||
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 203-392 | SEALER - antiseize | A/R | ||
| 18 | 107-349 | CLUTCH (see 132D14) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 47 550 ₽ |
|
| 55-5022 | SCREW - clutch | 6 | ||
| 203-400 | SEALER - thread | A/R | ||
| 19 | 77-1699 | HUB - condenser fan | 1 | |
| 55-6220 | SCREW - hub | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 20 | 78-687 | FAN - condenser | 1 | |
| 78-954 | FAN - condenser (plastic, noise reduction option) | 1 | ||
| 55-7555 | KEY | 1 | ||
| 55-2963 | SCREW - fan | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 21 | 104-700 | MOTOR (220-230-380-460/3/50-60 & EMEIA, see 126F4) | 1 | |
| 104-774 | MOTOR (220-230-380-460/3/50-60, Leroy Somer) | 1 | ||
| 104-788 | MOTOR (220-230-380-460/3/50-60, China) | 1 | ||
| 55-3264 | KEY - pulley/fan | 2 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 22 | 77-1712 | JACKSHAFT (30 units, see 77B14) | 1 | |
| 23 | 78-1492 | BELT - water pump | 1 | |
| 10-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 2 820 ₽ |
|
|
|
PP-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 980 ₽ |
|
| 24 | 98-3631 | GUARD - fan | 1 | |
| 55-3121 | SCREW - guard | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 25 | 204-427 | GAUGE - belt tension | 1 | |
| 26 | 98-3117 | PLENUM - condenser fan | 1 | |
| 27 | 98-3116 | ORIFICE - fan | 1 | |
| 55-3018 | SCREW - orifice | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-3045 | WASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 28 | 77-2163 | PULLEY - compressor (R134a, MD-200 30/50) | 1 | |
| 29 | 78-1367 | BELT - engine (R134a, MD-300 30/50) | 1 | |
| 10-78-1367 | Ремень двигатель - компрессор, MD-300 | 17 600 ₽ |
|
|
| PP-78-1367 | Ремень двигатель - компрессор, MD-300 | 11 710 ₽ |
|
|
| 30 | 77-1660 | PULLEY - engine (R134a, 30s; 50s use item 18) | 1 | |
| 31 | 77-2057 | PULLEY - compressor (R134a, MD-300 30/50) | 1 |
