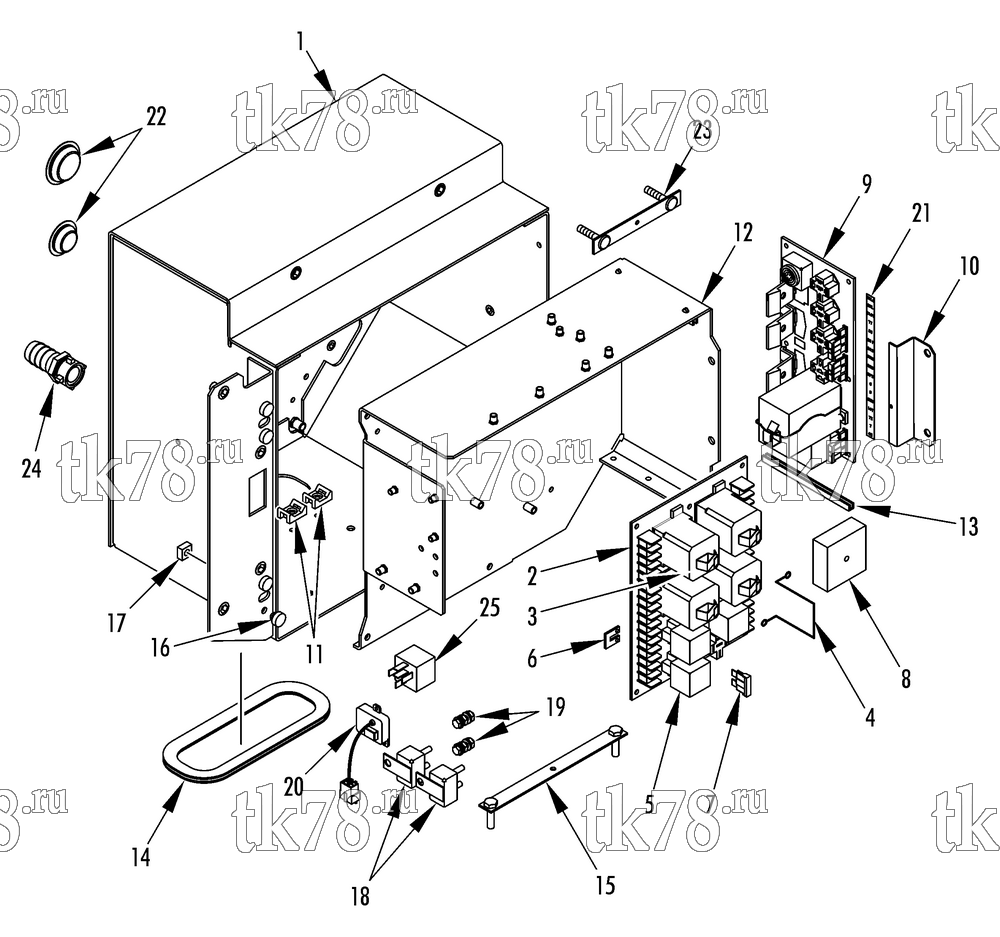

Установкa Thermo King MD-200 MT схема CONTROL BOX – 197B3
Обновление от: 4/30/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6684 | BOX - control | 1 | |
| 55-5206 | INSERT - threaded (10-32, ss) | 1 | ||
| 55-8752 | INSERT - threaded (10-32, brs) | 3 | ||
| 55-8711 | INSERT - threaded (1/4-20, brs) | 8 | ||
| 2 | 41-2546 | BOARD - pc | 1 | |
| 3 | 44-3186 | RELAY (1K, R1K, R2K & RDK) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 4 | 99-2027 | SPRING - relay holddown | 4 | |
| 55-2262 | RIVET - spring | 8 | ||
| 55-2771 | CLAMP - holddown spring | 4 | ||
| 5 | 41-895 | RELAY (1pdt) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 6 | 44-6933 | STRIP - jumper | 6 | |
| 7 | 44-9524 | FUSE (F1, 3 amp) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 55-3022 | SCREW - pc board | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 8 | 44-9047 | TIMER - unloading | 1 | |
| 55-3031 | SCREW - timer | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 9 | 44-9865 | BOARD - pc | 1 | |
| 10 | 92-4293 | BRACKET - pc board | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 11 | 99-6093 | MOUNT - bandwrap | 9 | |
| 55-3136 | RIVET - mount | 9 | ||
| 12 | 92-4294 | TRAY - relay | 1 | |
| 55-8752 | INSERT - threaded (10-32, brs) | 9 | ||
| 51-724 | INSERT- threaded (8-32, brs) | 4 | ||
| 55-7776 | STANDOFF | 6 | ||
| 55-3842 | SCREW - tray | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 92-4313 | GUIDE - pc board | 2 | |
| 14 | 92-3024 | GROMMET - harness | 1 | |
| 15 | 91-4053 | BOLTSTRIP | 1 | |
| 16 | 33-1808 | GROMMET - bumper | 4 | |
| 17 | 55-3059 | NUT - captive (cover) | 2 | |
| 18 | 44-6991 | BREAKER - circuit (CB3 & CB4) | 2 | |
| 55-2995 | SCREW - breaker | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 4 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 4 | ||
| 19 | 55-2991 | SCREW - ground | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2965 | NUT | 2 | ||
| 20 | 41-7067 | MODULE - timer | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 44-5827 | CONNECTOR - male (4-pin) | 1 | ||
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 55-4474 | SCREW - module | 3 | ||
| 55-8430 | SPACER - module | 3 | ||
| 55-7585 | FLATWASHER (nylon) | 3 | ||
| 55-2202 | LOCKWASHER | 10 | ||
| 55-2201 | FLATWASHER | 11 | ||
| 21 | 91-7568 | NAMEPLATE - PC board | 1 | |
| 22 | 55-6010 | PLUG - button | 2 | |
| 23 | 92-3714 | BOLTSTRIP - control box | 1 | |
| 55-3136 | RIVET - boltstrip | 2 | ||
| 24 | 55-9986 | FITTING - barb | 1 | |
| 25 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 |
