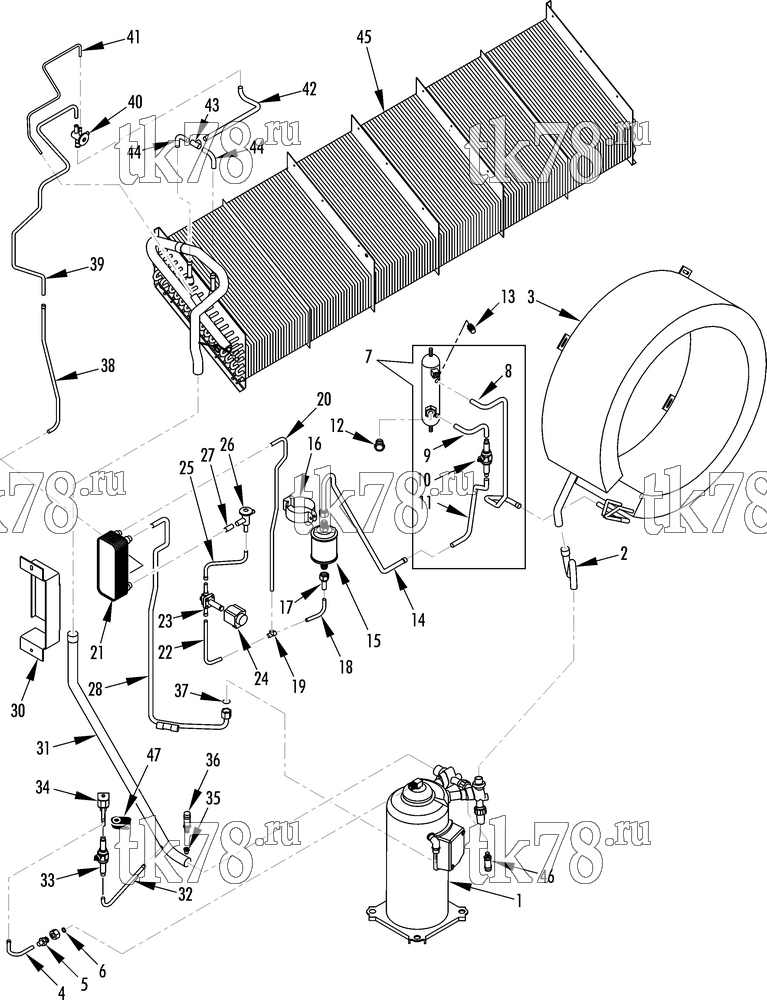

Установкa Thermo King MAGNUM SL mP-4000 схема REFRIGERATION COMPONENTS (SERVICE VALVES) – 247C0
Обновление от: 1/17/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-795 | COMPRESSOR - scroll (see 180E1) | 1 | |
| 2 | 61-2477 | TUBE - valve to coil | 1 | |
| 3 | 60-285 | COIL - condenser | 1 | |
| 4 | 61-2467 | TUBE - valve to coil | 1 | |
| 5 | 61-2162 | ADAPTER - compressor | 1 | |
| 6 | 33-3912 | SEAL - teflon fiber | 1 | |
| 7 | 67-2542 | TANK - receiver | 1 | |
| 8 | 61-2238 | TUBE - receiver to dehydrator | 1 | |
| 9 | 61-5333 | TUBE - receiver to valve | 1 | |
| 10 | 61-3525 | VALVE - ball | 1 | |
| 11 | 61-5334 | TUBE - valve to joint | 1 | |
| 12 | 61-5335 | PLUG - sight glass hole | 1 | |
| 33-1162 | O-RING - plug | 1 | ||
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 13 | 506-364 | PLUG - fusible | 1 | |
| 51-273 | NUT - receiver tank | 2 | ||
| 55-9027 | WASHER - insulating | 4 | ||
| 14 | 61-2475 | TUBE - receiver to dehydrator | 1 | |
| 55-302 | NUT - adapter | 1 | ||
| 15 | 61-786 | DEHYDRATOR | 1 | |
| 16 | 51-1871 | CLAMP - dehydrator (metal) | 1 | |
| 92-9520 | BRACKET - dehydrator (nylon) | 1 | ||
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1441 | FLATWASHER | 1 | ||
| 51-1425 | NUT - clamp | 1 | ||
| 55-9054 | WASHER - insulating | 1 | ||
| 51-1442 | SCREW - dehydrator | 1 | ||
| 51-1464 | FLATWASHER | 2 | ||
| 17 | 61-3506 | TUBE - filter | 1 | |
| 55-302 | NUT - adapter | 1 | ||
| 18 | 61-3503 | TUBE - filter to tee | 1 | |
| 19 | 55-3251 | TEE | 1 | |
| 20 | 61-2471 | TUBE - tee to exchanger | 1 | |
| 21 | 67-1889 | HEAT EXCHANGER - economizer | 1 | |
| 92-3547 | INSULATION - heat exchanger | 1 | ||
| 22 | 61-2472 | TUBE - tee to valve | 1 | |
| 91-758 | CLAMP - tube | 1 | ||
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1441 | FLATWASHER | 2 | ||
| 92-2229 | SPACER | 1 | ||
| 23 | 61-2470 | VALVE - vapor injection | 1 | |
| 24 | 41-5460 | COIL - valve | 1 | |
| 25 | 61-2469 | TUBE - valve to expansion | 1 | |
| 26 | 66-9906 | VALVE - expansion (economizer) | 1 | |
| 27 | 61-1847 | TUBE - expansion valve to exchanger | 1 | |
| 28 | 61-2474 | TUBE - liquid injection | 1 | |
| 55-8951 | SHOULDER | 1 | ||
| 55-8950 | NUT - o-ring seal | 1 | ||
| 33-4499 | INSULATION - tube | A/R | ||
| 91-1800 | CLAMP - tube | 2 | ||
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1425 | NUT | 1 | ||
| 29 | 61-2476 | TUBE - expansion valve bulb | 1 | |
| 30 | 92-3391 | BRACKET - heat exchanger | 1 | |
| 92-3550 | INSULATION - mylar | 1 | ||
| 31 | 61-3502 | TUBE - suction | 1 | |
| 33-4500 | INSULATION - tube (42.1 in lg) | A/R | ||
| 32 | 61-2466 | TUBE - suction to ball valve | 1 | |
| 33 | 61-2465 | VALVE - ball | 1 | |
| 34 | 61-2057 | VALVE (PWM) | 1 | |
| 41-7937 | COIL (only) | 1 | ||
| 35 | 66-9842 | VALVE - flare | 1 | |
| 36 | 41-6150 | TRANSDUCER - suction (200 psi) | 1 | |
| 37 | 33-566 | O-RING | 1 | |
| 38 | 61-2468 | TUBE - heat exchanger to evaporator | 1 | |
| 33-4501 | INSULATION - tube (14.1 in lg) | A/R | ||
| 39 | 61-2050 | TUBE - exchanger to coil (#2) | 1 | |
| 40 | 61-443 | VALVE - expansion | 1 | |
| 41 | 61-2048 | TUBE - equalizer | 1 | |
| 42 | 61-2049 | TUBE - expansion valve to tee | 1 | |
| 43 | 55-2296 | TEE | 1 | |
| 44 | 61-2051 | TUBE - tee to distributor | 1 | |
| 45 | 67-1921 | COIL - evaporator (13.0/330 wide, MAGNUM SL-40) | 1 | |
| 46 | 41-4004 | SWITCH - hpco | 1 | |
| 47 | 91-758 | CLAMP - tube | 1 | |
| 51-1477 | SCREW - clamp | 1 | ||
| 92-2229 | SPACER | 1 | ||
| 51-1464 | FLATWASHER (large) | 1 | ||
| 51-1441 | FLATWASHER | 1 | ||
| 55-9054 | WASHER - insulator | 1 |
