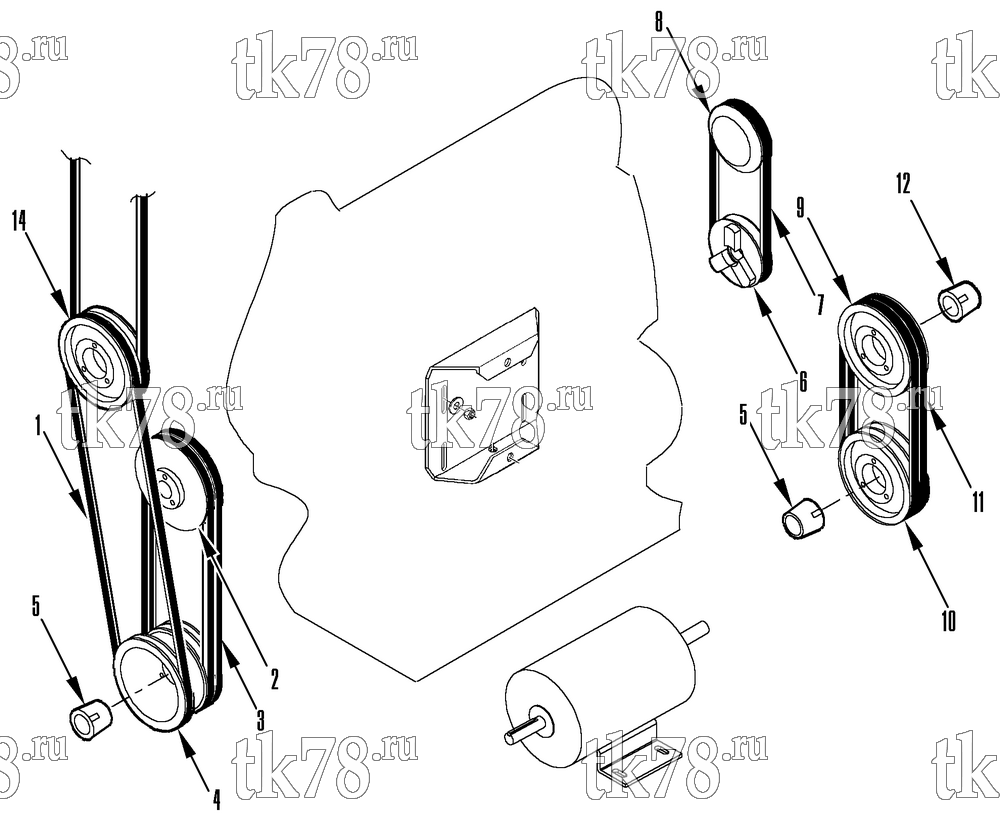

Установкa Thermo King LND-II EMEIA w/TK 3.95 Engine схема PULLEYS & BELTS (FM) – 148C3
Обновление от: 12/6/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1050 | BELT - fan drive | 1 | |
| 10-78-1050 | Ремень вентиляторов, LND | 4 070 ₽ |
|
|
| 2 | 107-225 | CLUTCH | 1 | |
| 70-153 | KIT - clutch | 1 | ||
| 55-5424 | SCREW - clutch | 6 | ||
| 55-7069 | FLATWASHER | 6 | ||
| 55-7727 | LOCKWASHER | 6 | ||
| 3 | 78-865 | BELT - engine (50 cycle units) | 2 | |
| 78-973 | BELT - engine (60 cycle units) | 1 | ||
| 4 | 77-2432 | PULLEY - motor (50 cycle units) | 1 | |
| 77-2362 | PULLEY - motor (60 cycle units) | 1 | ||
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 5 | 77-2536 | BUSHING | 2 | |
| 70-184 | KIT - screws & washers | 1 | ||
| 6 | 77-1825 | PULLEY - crankshaft (see 90D8) | 1 | |
| 7 | 78-1026 | BELT - water pump | 1 | |
| 10-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 3 000 ₽ |
|
|
| PP-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 1 260 ₽ |
|
|
| 8 | 77-1426 | PULLEY - water pump (see 90D10) | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 9 | 77-2463 | PULLEY - compressor (50 cycle units) | 1 | |
| 77-2373 | PULLEY - compressor (60 cycle units) | 1 | ||
| 10 | 77-2463 | PULLEY - motor (50 cycle units) | 1 | |
| 77-2374 | PULLEY - motor (60 cycle units) | 1 | ||
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 11 | 78-1052 | BELT - motor to compressor (50 cycle units) | 2 | |
| 78-1010 | BELT - motor to compressor (60 cycle units) | 1 | ||
| 12 | 77-2537 | BUSHING | 1 | |
| 70-184 | KIT - screws & washers | 1 | ||
| 55-455 | KEY | 1 | ||
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 13 | 77-2433 | PULLEY - idler (see 148C7) | 1 |
