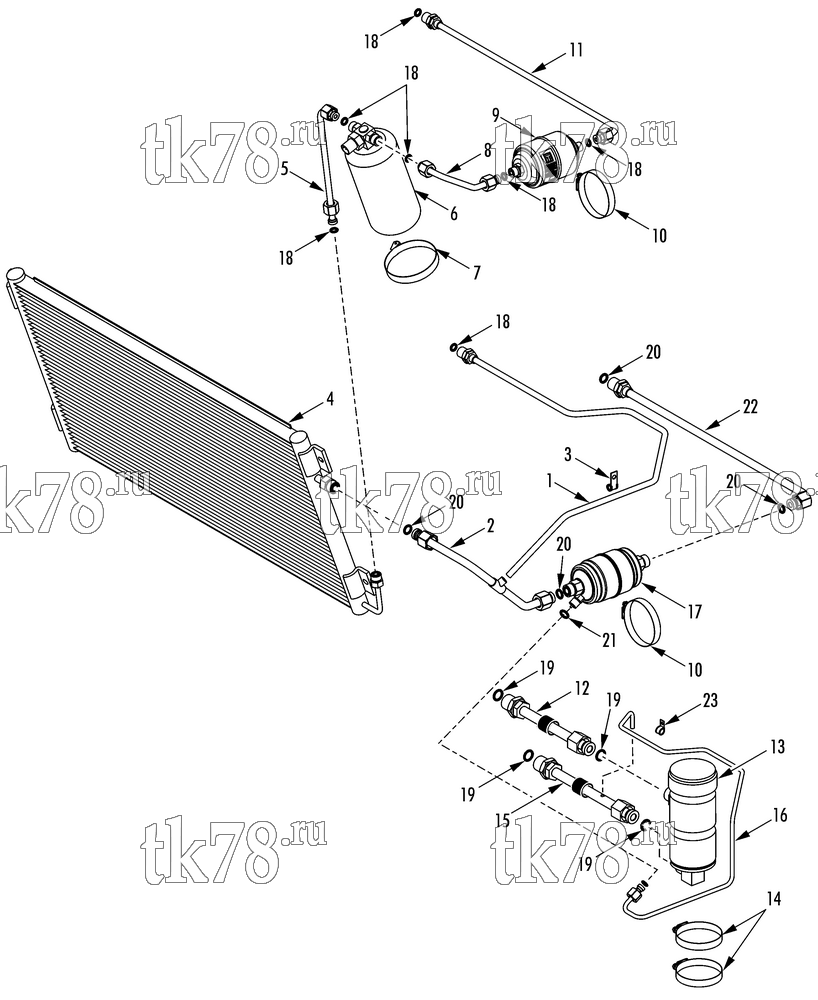

Установкa Thermo King KV-500 MAX схема CONDENSER REFRIGERATION (KV-500 10) – 230F4
Обновление от: 10/29/09
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 61-4288 | TUBE - tee to bulkhead (defrost) | 1 |
| 61-434 | ADAPTER - o-ring seal (#6) | 1 | |
| 2 | 61-4287 | TUBE - condenser inlet | 1 |
| 55-8950 | NUT - o-ring seal (#6) | 2 | |
| 55-8951 | SHOULDER - o-ring seal (#6) | 2 | |
| 3 | 55-2239 | CLAMP - tube | 2 |
| 55-6994 | SCREW - clamp | 4 | |
| 55-6996 | LOCKWASHER | 4 | |
| 55-6995 | FLATWASHER | 4 | |
| 4 | 67-2367 | COIL - condenser | 1 |
| 55-6987 | SCREW - coil | 4 | |
| 55-7066 | LOCKWASHER | 4 | |
| 55-7085 | FLATWASHER | 4 | |
| 5 | 61-4289 | TUBE - coil to receiver tank | 1 |
| 6 | 61-3125 | TANK - receiver | 1 |
| 41-8356 | SWITCH - pressure | 1 | |
| 7 | 55-7800 | CLAMP - receiver | 2 |
| 8 | 61-4294 | TUBE - condenser to tank | 1 |
| 55-8267 | NUT - o-ring seal (#6) | 2 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | |
| 9 | 66-8718 | DEHYDRATOR (#6 o-ring seal, includes o-rings) | 1 |
| 14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 770 ₽ |
| P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 480 ₽ |
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 580 ₽ | |
| 61-4676 | DEHYDRATOR (#8 o-ring seal, includes o-rings) | 1 | |
| 10 | 55-6225 | CLAMP - dehydrator & separator | 2 |
| 11 | 61-4290 | TUBE - dehydrator outlet | 1 |
| 61-434 | ADAPTER - o-ring seal (#6) | 1 | |
| 55-8268 | SHOULDER - o-ring seal | 1 | |
| 55-9836 | NUT - ors (#6) | 1 | |
| 12 | 61-4292 | TUBE - accumulator inlet | 1 |
| 61-422 | FITTING - o-ring seal (w/ nut) | 1 | |
| 55-9929 | NUT - o-ring seal | 1 | |
| 13 | 61-3126 | TANK - accumulator | 1 |
| 14 | 55-2688 | CLAMP | 2 |
| 15 | 61-4302 | TUBE - accumulator outlet | 1 |
| 16 | 61-4303 | TUBE - oil line | 1 |
| 55-8456 | ADAPTER | 1 | |
| 55-8457 | NUT - o-ring seal | 1 | |
| 17 | 66-8548 | SEPARATOR - oil | 1 |
| 66-8548 OEM | Масляный сепаратор, V/VM-Series | 21 160 ₽ |
| 10-66-8548 | Масляный сепаратор, V/VM-Series | 7 390 ₽ |
| 18 | 33-1015 | O-RING (#6, 3/8 id) | 7 |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 260 ₽ | |
| 19 | 33-2115 | O-RING (#10, 5/8 id) | 4 |
| 20 | 33-566 | O-RING - (#8, 1/2 id) | 4 |
| 21 | 33-1461 | O-RING - (#4, 1/4 id) | 1 |
| 22 | 61-4300 | TUBE - discharge | 1 |
| 23 | 55-2536 | CLAMP - tube | 2 |
