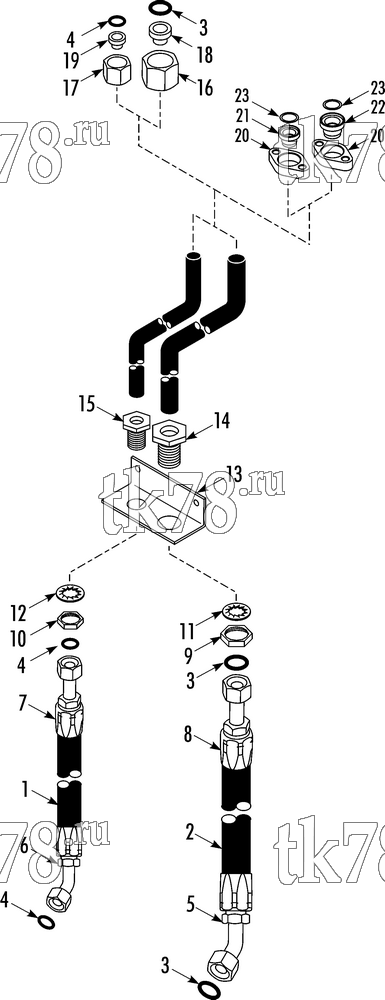

Установкa Thermo King KRS Plus схема HOSE KIT (700107, 700108 & 700500) – 238C1
Обновление от: 6/9/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3411 | HOSE - discharge (#16, 700107 only) | 1 | |
| 2 | 61-3410 | HOSE - suction (#20, 700107 only) | 1 | |
| 3 | 33-3165 | O-RING | 3 | |
| 4 | 33-3166 | O-RING | 3 | |
| 5 | 55-9773 | FITTING (1 11/16-12, 700107 only) | 1 | |
| 6 | 55-9772 | FITTING (1 7/16-12, 700107 only) | 1 | |
| 7 | 55-9770 | FITTING (1 11/16-12, 700107 only) | 1 | |
| 8 | 55-9769 | FITTING (1 7/16-12, 700107 only) | 1 | |
| 9 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 10 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 11 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 12 | 55-5741 | LOCKWASHER (1.50 id) | 1 | |
| 13 | 91-1251 | BRACKET - fittings | 1 | |
| 14 | 51-1912 | ADAPTER - bulkhead (#20, suction) | 1 | |
| 15 | 51-1557 | ADAPTER - bulkhead (#16, discharge) | 1 | |
| 16 | 55-5935 | NUT - shoulder (#20, 700500 only) | 1 | |
| 17 | 55-5936 | NUT - shoulder (#16, 700500 only) | 1 | |
| 18 | 55-5939 | ADAPTER - suction (700500 only) | 1 | |
| 19 | 55-5938 | ADAPTER - discharge (700500 only) | 1 | |
| 20 | 55-9371 | FLANGE | 2 | |
| 21 | 61-4514 | ADAPTER (22 dia) | 1 | |
| 22 | 61-4515 | ADAPTER (28 dia) | 1 | |
| 23 | 33-3191 | GASKET - flat | 2 |
