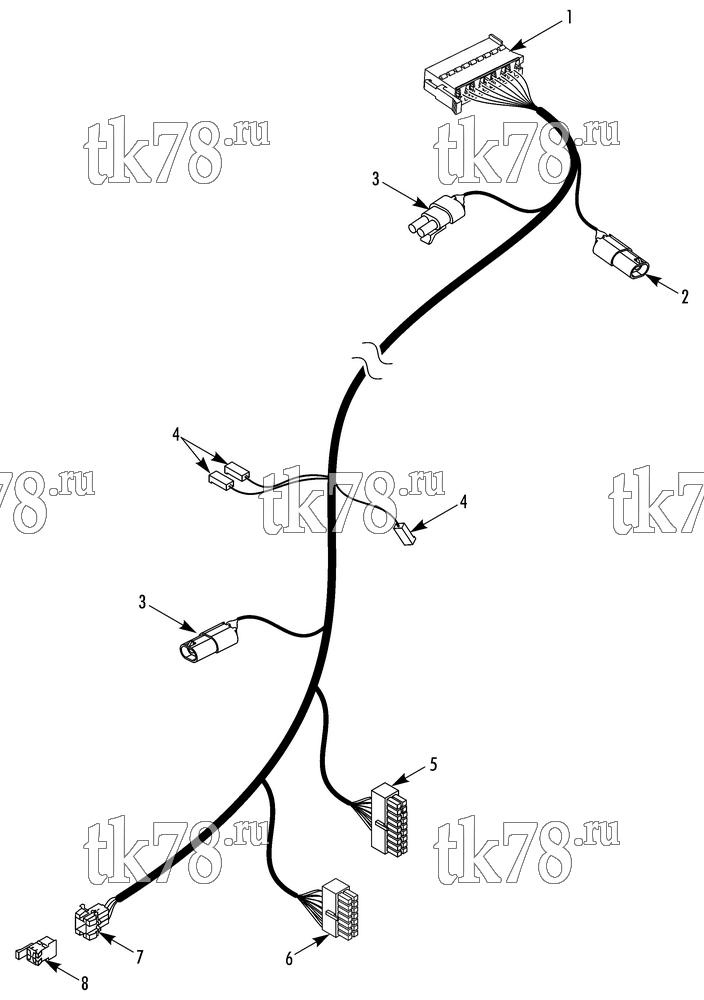

Установкa Thermo King KRS Plus схема HARNESS CONTROL PANEL TO ClimaAIRE II – 233A7
Обновление от: 2/6/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 41-7000 | HARNESS - control panel to ClimaAIRE II (12 M) | 1 | ||
| 41-8517 | HARNESS - control panel to ClimaAIRE II (17M) | 1 | ||
| 41-8516 | HARNESS - control panel to ClimaAIRE II (18M) | 1 | ||
| 1 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (.5 mm) | 16 | ||
| 41-4248 | RECEPTACLE (1.5 mm) | 2 | ||
| 2 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 3 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 4 | 44-6381 | CONNECTOR - female (1-pin) | 3 | |
| 5 | 41-650 | CONNECTOR - in-line (18-pin) | 1 | |
| 6 | 41-661 | CONNECTOR - in-line (14-pin) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | 22 | ||
| 7 | 41-4949 | CONNECTOR - male (4-pin) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | 3 | ||
| 8 | 41-2769 | CONNECTOR - female (4-pin) | 1 |
