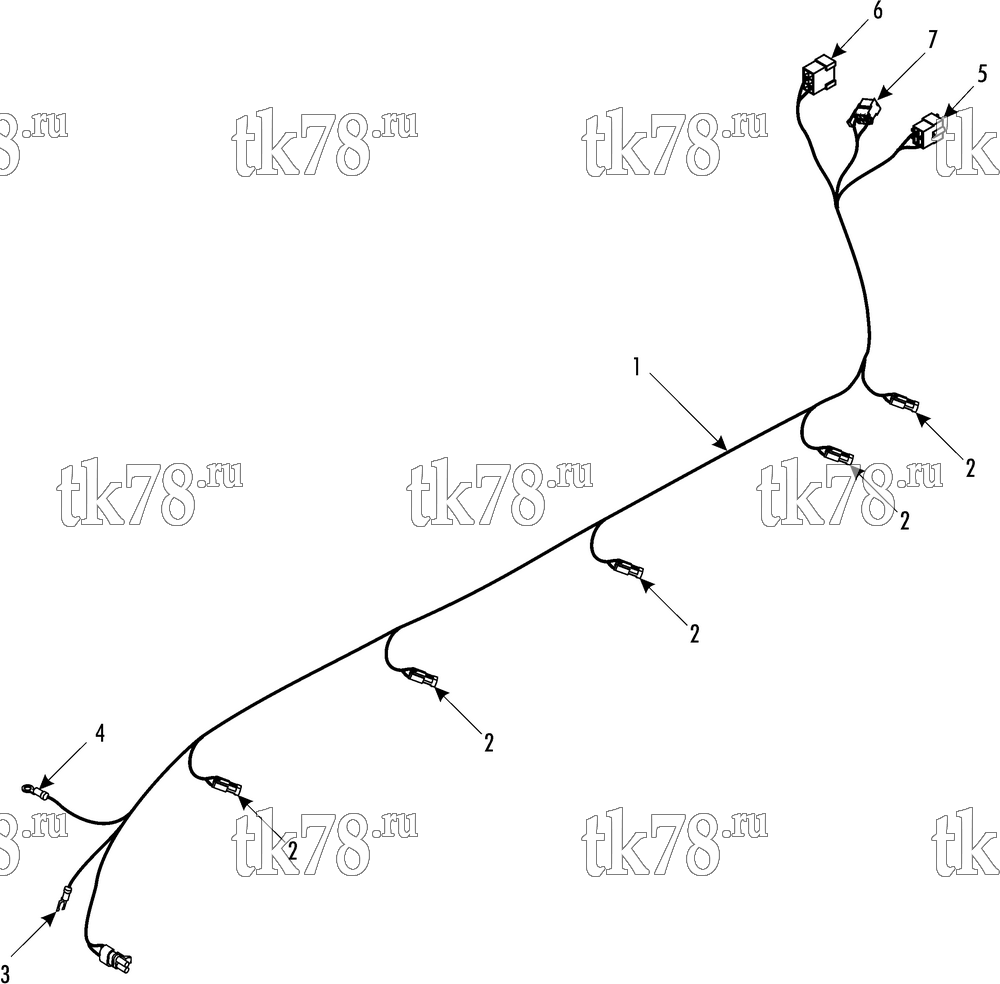

Установкa Thermo King KRS Plus схема HARNESS CONDENSER (78-1344 & 78-1530 fans) – 233A4
Обновление от: 2/6/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7387 | HARNESS - condenser fans (four fans, KRS 1000) | 1 | |
| 41-7388 | HARNESS - condenser fans (five fans, KRS 1000) | 1 | ||
| 41-5211 | HARNESS - condenser fans (four fans, KRS 1004) | 1 | ||
| 41-8527 | HARNESS - condenser fans (four fans, KRS 1012) | 1 | ||
| 41-8537 | HARNESS - condenser fans (five fans, KRS 1012) | 1 | ||
| 2 | 44-5835 | CONNECTOR - shroud (see 115D14) | 5 | |
| 3 | 44-2788 | TERMINAL - fork | 1 | |
| 4 | 44-7245 | TERMINAL - ring | 1 | |
| 5 | 41-3966 | CONNECTOR - housing | 1 | |
| 44-9695 | TERMINAL - fingrip | 2 | ||
| 6 | 41-3967 | CONNECTOR - housing (6-pin) | 1 | |
| 44-9695 | TERMINAL - fingrip | 6 | ||
| 7 | 41-2767 | CONNECTOR - female (6-pin) | 1 | |
| 41-4247 | RECEPTACLE - female | 4 | ||
| 41-4248 | RECEPTACLE - female | 1 |
