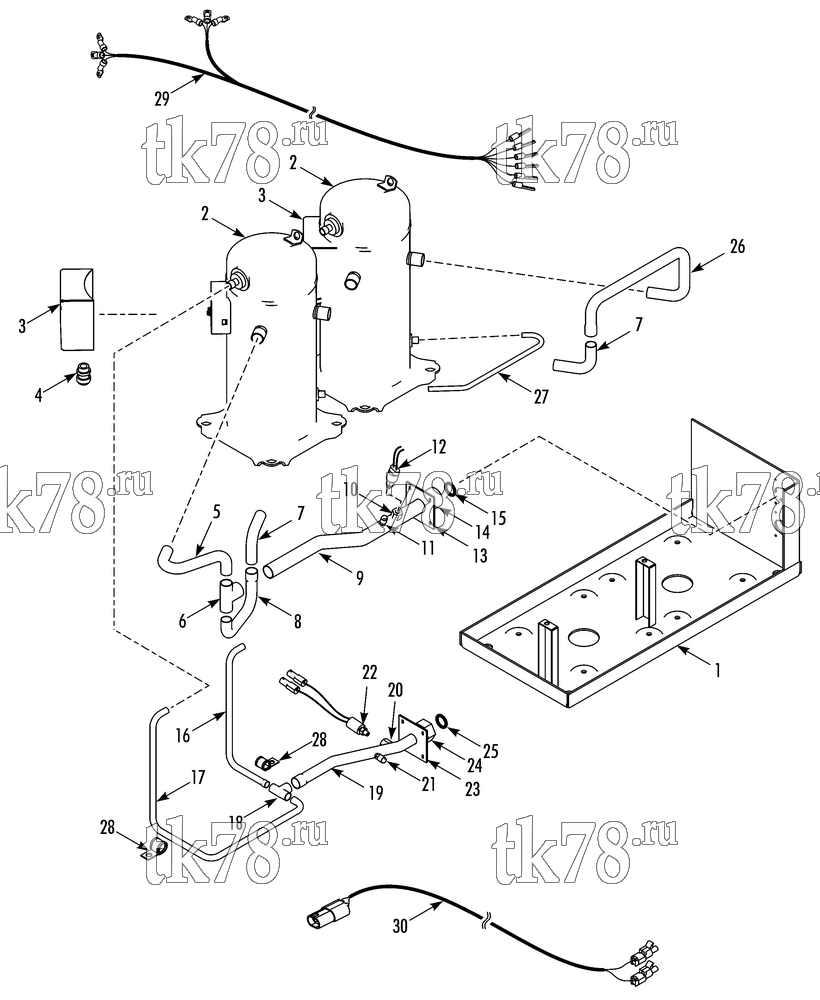

Установкa Thermo King KRS Plus схема COMPRESSOR REFRIGERATION E-KRS – 232H7
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7319 | MOUNT - compressor | 1 | |
| 2 | 102-699 | COMPRESSOR - assembly | 2 | |
| 55-2341 | SCREW - compressor | 8 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 91-9700 | SPACER - compressor | 8 | ||
| 51-372 | WASHER - special | 8 | ||
| 55-4955 | NUT - compressor | 8 | ||
| 3 | 91-9699 | BOX - cover | 2 | |
| 55-2995 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 4 | 55-5900 | CONNECTOR - liquid tite | 2 | |
| 5 | 61-4501 | TUBE - suction | 1 | |
| 6 | 55-6508 | TEE - suction tubes | 1 | |
| 7 | 61-4502 | TUBE - gas | 2 | |
| 8 | 61-4503 | TUBE - suction | 1 | |
| 9 | 61-4504 | TUBE | 1 | |
| 10 | 66-3570 | FITTING - saddle | 1 | |
| 11 | 66-9842 | VALVE - pressure | 1 | |
| 12 | 44-9976 | SWITCH - lpco | 1 | |
| 44-9977 | SWITCH - only | 1 | ||
| 13 | 92-7320 | PLATE - holder | 1 | |
| 55-5047 | RIVET | 4 | ||
| 14 | 55-7537 | ADAPTER - bulkhead (#20 o-ring seal) | 1 | |
| 15 | 33-3166 | O-RING | 1 | |
| 16 | 61-4505 | TUBE - discharge | 1 | |
| 17 | 61-4506 | TUBE - discharge | 1 | |
| 18 | 55-7065 | TEE | 1 | |
| 19 | 61-4507 | TUBE | 1 | |
| 20 | 66-4553 | FITTING - saddle | 1 | |
| 21 | 66-9842 | VALVE | 1 | |
| 22 | 41-4146 | SWITCH - hpco | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 23 | 92-7321 | PLATE - holder | 1 | |
| 55-5047 | RIVET | 4 | ||
| 24 | 66-5247 | ADAPTER - bulkhead (#16 o-ring seal) | 1 | |
| 25 | 33-1785 | O-RING | 1 | |
| 26 | 61-4508 | TUBE - gas | 1 | |
| 27 | 66-9831 | TUBE - oil equalizer | 1 | |
| 28 | 55-3065 | CLAMP | 2 | |
| 55-6994 | SCREW | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT | 2 | ||
| 29 | 61-4509 | HARNESS - compressor (E-KRS) | 1 | |
| 30 | 41-8493 | HARNESS - extension | 1 |
