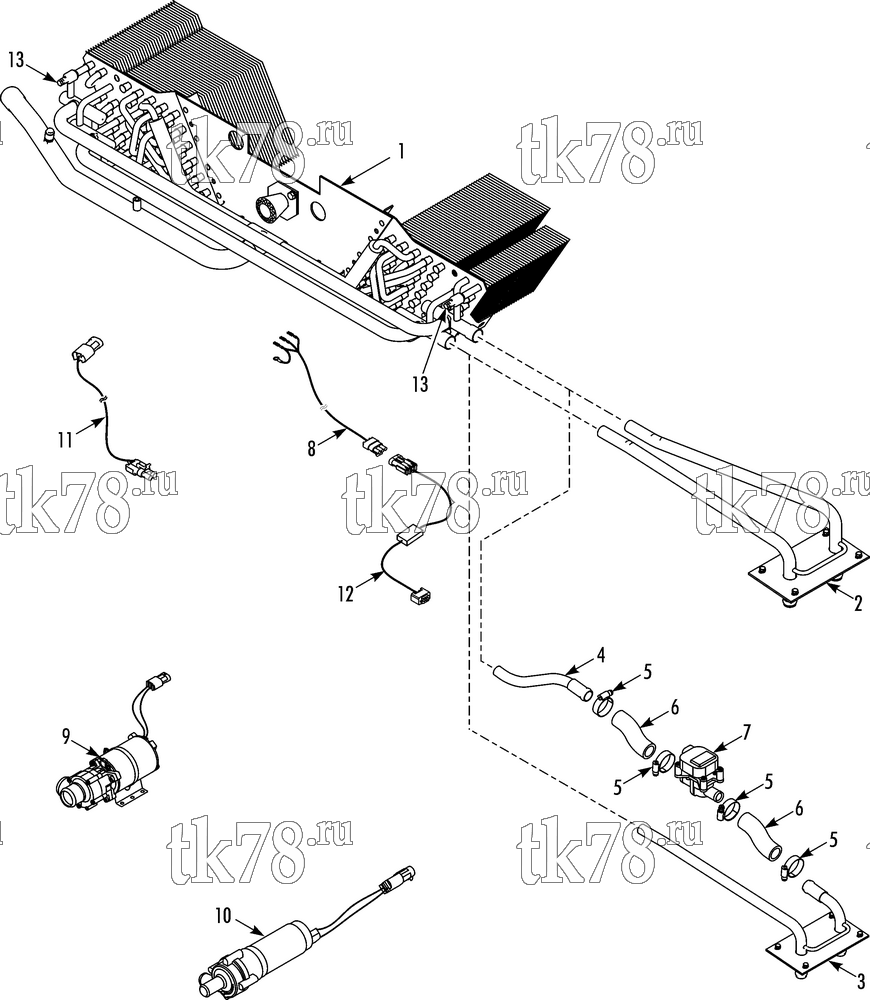

Установкa Thermo King KRS Plus схема HEATING COMPONENTS – 232H5
Обновление от: 6/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2404 | COIL - evaporator | 1 | |
| 2 | 61-4532 | ADAPTER - tube (without water valve) | 1 | |
| 3 | 61-4533 | ADAPTER - tube (with water valve) | 1 | |
| 55-7340 | SCREW | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 4 | 61-1987 | TUBE | 1 | |
| 5 | 55-3401 | CLAMP | 4 | |
| 6 | 92-5032 | HOSE | A/R | |
| 7 | 41-9943 | VALVE - water | 1 | |
| 8 | 41-6792 | HARNESS - water valve (10M) | 1 | |
| 41-6793 | HARNESS - water valve (20M) | 1 | ||
| 9 | 12-822 | PUMP - boost | 1 | |
| 10 | 41-2234 | PUMP - water | 1 | |
| 41-9326 | HARNESS - pump | 1 | ||
| 11 | 41-4144 | HARNESS - boost pump (9M) | 1 | |
| 41-8522 | HARNESS - boost pump (11M) | 1 | ||
| 41-4143 | HARNESS - boost pump (14M) | 1 | ||
| 41-8523 | HARNESS - boost pump (14M) | 1 | ||
| 41-8524 | HARNESS - boost pump (24M) | 1 | ||
| 12 | 41-6767 | CONTROLLER - servomotor | 1 | |
| 13 | 51-694 | SCREW | 1 |
