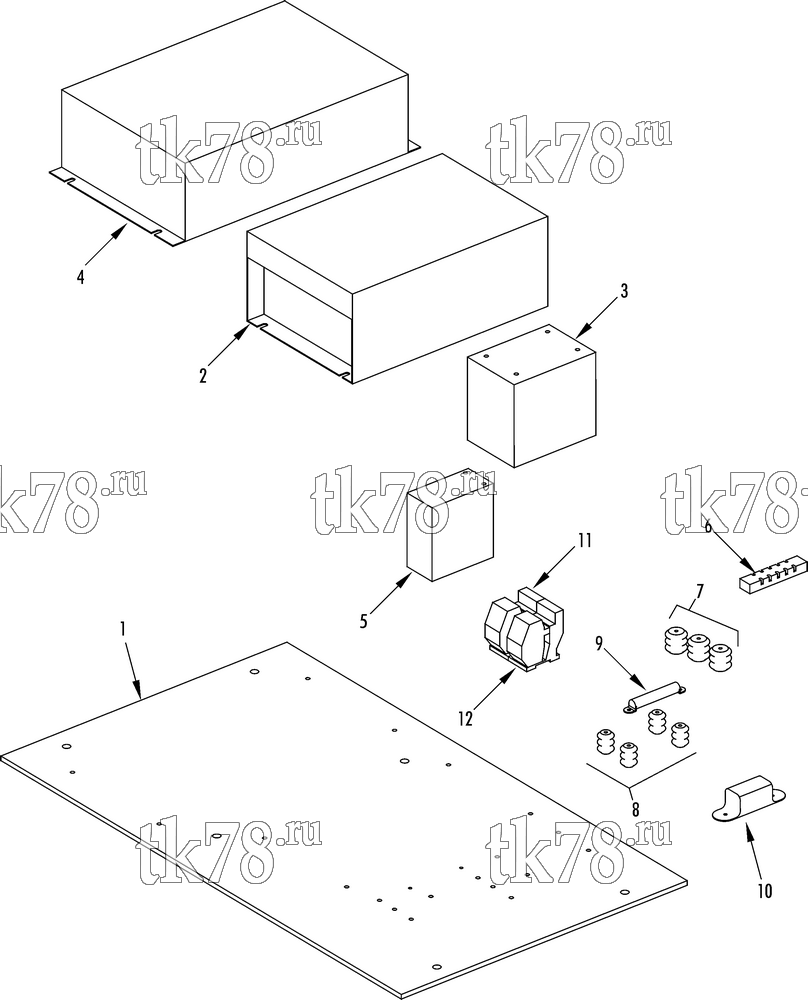

Установкa Thermo King KRS Plus схема POWER PACK ASSEMBLY (701112, 701254, 701255, 701256) – 231F6
Обновление от: 2/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7256 | BOARD - component | 1 | |
| 55-7866 | NUT - captive | 14 | ||
| 2 | 41-8409 | INVERTER (230) | 1 | |
| 41-8408 | INVERTER (380) | 1 | ||
| 3 | 41-8411 | FILTER - inductor (230V) | 1 | |
| 41-8410 | FILTER - inductor (380V) | 1 | ||
| 4 | 45-2273 | POWER SUPPLY (27.5V 180A) | 1 | |
| 5 | 41-8412 | CONTACTOR (DC) | 1 | |
| 6 | 41-8413 | CONNECTOR | 1 | |
| 7 | 41-8414 | ISOLATOR | 3 | |
| 8 | 41-8415 | ISOLATOR | 4 | |
| 9 | 41-8416 | FUSE (25A) | 1 | |
| 10 | 41-8417 | FUSE (100A) | 1 | |
| 11 | 41-8418 | SOCKET - relay | 2 | |
| 12 | 41-8419 | RELAY - heat (220V, 50hz, 16-25A) | 2 | |
| 41-8420 | RELAY - heat (380V, 10-16A) | 2 |
