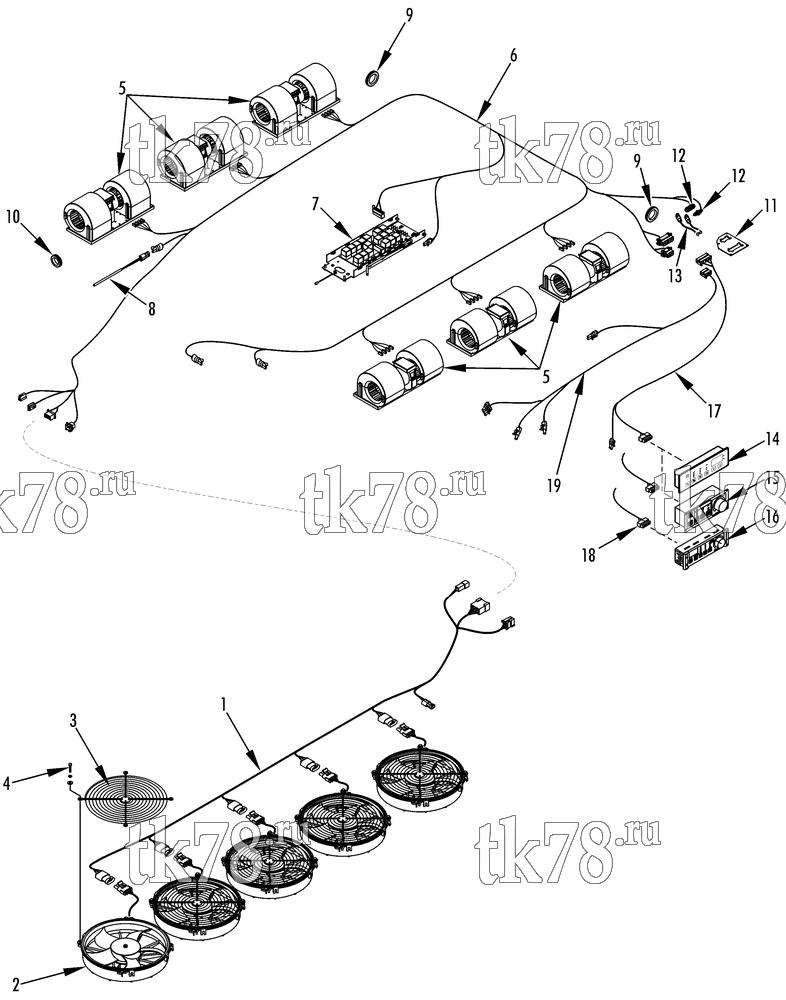

Установкa Thermo King KRS Plus схема ELECTRICAL COMPONENTS (007238/Spal, 007235) – 217B9
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7388 | HARNESS - condenser (5 fans, see 233A4) | 1 | |
| 41-7387 | HARNESS - condenser (4 fans, see 233A4) | 1 | ||
| 2 | 78-1344 | FAN - condenser | A/R | |
| 78-1530 | FAN - condenser | A/R | ||
| 3 | 98-5425 | GUARD - fan (Spal 78-1344) | A/R | |
| 98-7561 | GUARD - fan (78-1530) | A/R | ||
| 4 | 55-7372 | SCREW - guard & fan | A/R | |
| 55-9190 | LOCKWASHER | A/R | ||
| 55-8893 | FLATWASHER | A/R | ||
| 5 | 78-1297 | BLOWER - evaporator (Spal) | 6 | |
| 78-1531 | BLOWER - evaporator | 6 | ||
| 55-7696 | SCREW - blower | 30 | ||
| 55-7031 | LOCKWASHER | 30 | ||
| 55-7697 | FLATWASHER | 30 | ||
| 6 | 41-6997 | HARNESS - evaporator (see 233A1) | 1 | |
| 7 | NSS | PANEL - relay (see 214F8) | 1 | |
| 8 | 41-4157 | SENSOR - temperature | 1 | |
| 9 | 33-1371 | GROMMET (1.703 id) | 2 | |
| 10 | 33-315 | GROMMET (1.312 id) | 1 | |
| 11 | 92-7331 | PLATE - terminals | 1 | |
| 55-3010 | RIVET - plate | 4 | ||
| 12 | 55-9367 | STUD - terminal (positive/negative) | 2 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8955 | WASHER - bright | 8 | ||
| 55-3238 | LOCKWASHER (int th) | 5 | ||
| 55-8568 | LOCKWASHER (int/ext th) | 1 | ||
| 305-1653 | NUT | 8 | ||
| 13 | 41-8520 | CABLE - battery (red 5M) | 1 | |
| 41-8521 | CABLE - battery (black 5M) | 1 | ||
| 14 | 41-6998 | SmartAIRE ASSEMBLY (see 226C9) | 1 | |
| 15 | 41-7211 | ClimaAIRE I ASSEMBLY | 1 | |
| 16 | 41-4658 | ClimaAIRE II ASSEMBLY (see 184F9) | 1 | |
| 17 | 41-4313 | HARNESS - SmartAIRE (12 M, see 232G1) | 1 | |
| 41-8532 | HARNESS - SmartAIRE (14 M, see 232G1) | 1 | ||
| 41-8533 | HARNESS - SmartAIRE (16 M, see 232G1) | 1 | ||
| 41-4512 | HARNESS - SmartAIRE (18 M, see 232G1) | 1 | ||
| 18 | 41-7000 | HARNESS - ClimaAIRE II (12M, see 233A7) | 1 | |
| 41-8517 | HARNESS - ClimaAIRE II (17M, see 233A7) | 1 | ||
| 41-8516 | HARNESS - ClimaAIRE II (18M, see 233A7) | 1 | ||
| 19 | 41-4912 | HARNESS - unit to compressor (for connectors see 115D14) | 1 |
