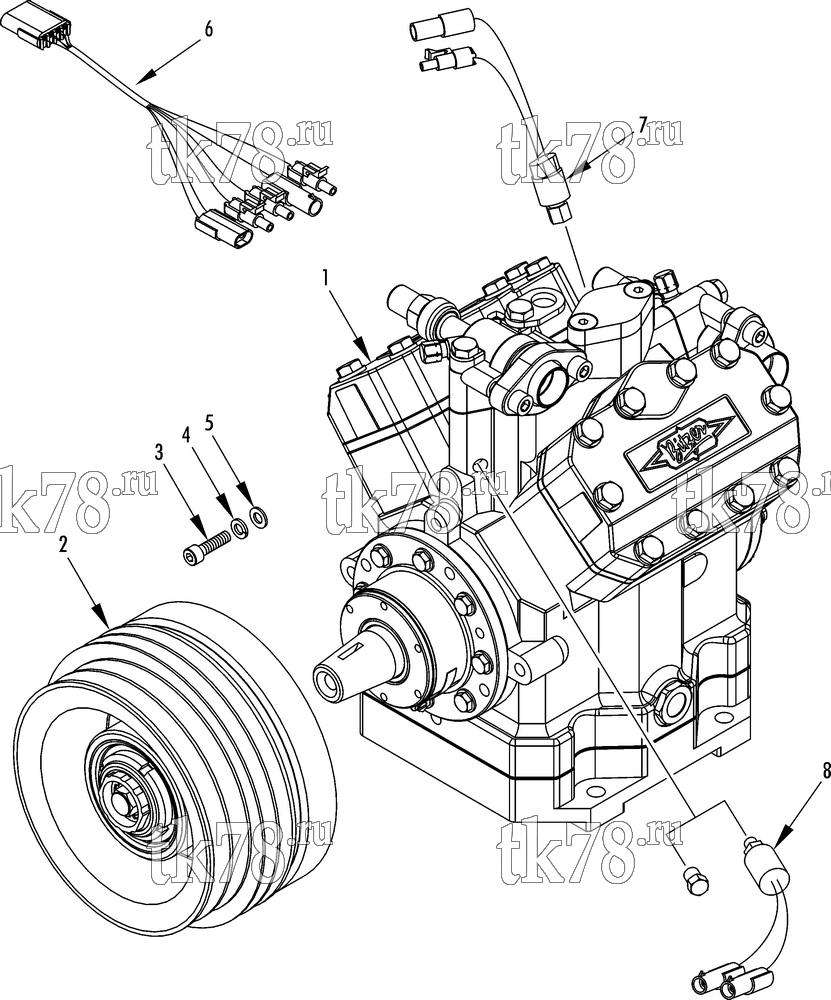

Установкa Thermo King KRS Plus схема COMPRESSOR GROUP BITZER (700702) – 217B5
Обновление от: 8/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-861 | COMPRESSOR (see 226D1) | 1 | |
| 2 | 107-351 | CLUTCH - electromagnetic (LA16.025X) | 1 | |
| 3 | 55-7755 | SCREW - clutch | 4 | |
| 4 | 55-790 | LOCKWASHER | 4 | |
| 5 | 55-895 | FLATWASHER | 4 | |
| 6 | 41-6795 | HARNESS - compressor (for connectors, see 115D14) | 1 | |
| 7 | 41-4147 | SWITCH - low pressure cutout | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 8 | 41-4146 | SWITCH - high pressure cutout | 1 | |
| 41-4531 | SWITCH - only | 1 |
