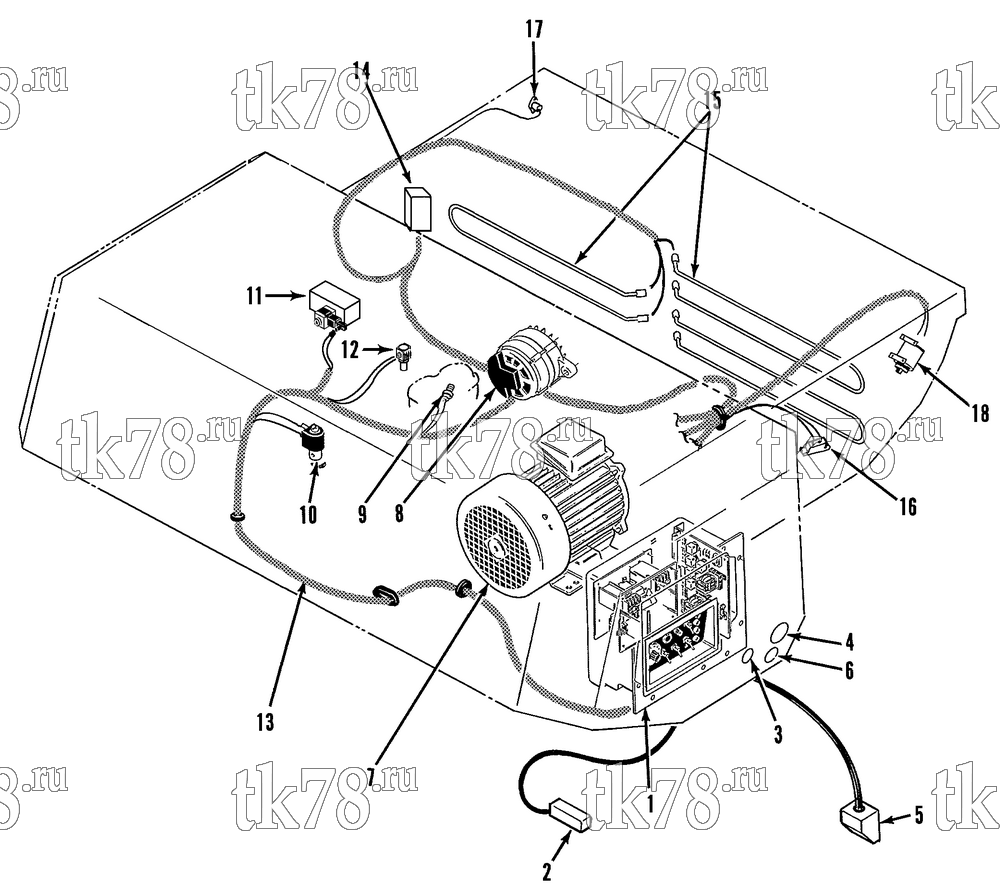

Установкa Thermo King KH-II 30 & 50 MAX EMEIA схема ELECTRICAL COMPONENTS (GAUGES) – 103A1
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4306 | BOX - control (see 103A2 or 111C3) | 1 | |
| 2 | 44-9470 | BOX - control (remote cab, see 103A9) | 1 | |
| 3 | 66-4907 | GAUGE - compound (optional) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 55-328 | ELBOW | 1 | ||
| 66-4346 | TEE | 1 | ||
| 66-1586 | TUBE - gauge | 1 | ||
| 4 | 44-8048 | THERMOMETER - digital (C) | 1 | |
| 44-8047 | THERMOMETER - digital (F) | 1 | ||
| 55-2997 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 44-7674 | SENSOR - thermometer | 1 | ||
| 5 | 99-3507 | BOX - power receptacle (see 107A2 or 111C7) | 1 | |
| 6 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 7 | 104-774 | MOTOR (230-380/3/50-60) | 1 | |
| 91-1719 | BARB - fitting | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 8 | 41-2194 | ALTERNATOR (23 amp, model EA, see 78A8) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR, see 78A8) | 1 | ||
|
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 9 | 41-3846 | SWITCH - hpco (R502) | 1 | |
| 10 | 66-5908 | VALVE - pilot solenoid (before 5/92) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 66-6549 | VALVE - pilot solenoid (after 5/92) | 1 | ||
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 11 | 44-9305 | BLOCK - hydraulic control (see 102G9) | 1 | |
| 12 | 61-283 | VALVE - solenoid (liquid line, see 125C10) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 13 | 44-9487 | HARNESS - main (see 103A2) | 1 | |
| 14 | 44-7354 | BOX - junction (EMEIA) | 1 | |
| 15 | 45-1374 | HEATER | 3 | |
| 44-7187 | HARNESS - heater | 1 | ||
| 16 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5636 | SCREW | 2 | ||
| 17 | 44-6691 | SWITCH - high temperature cutout (EMEIA) | 1 | |
| 18 | 44-2823 | SOLENOID - assembly | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-8040 | HARNESS - evaporator | 1 |
