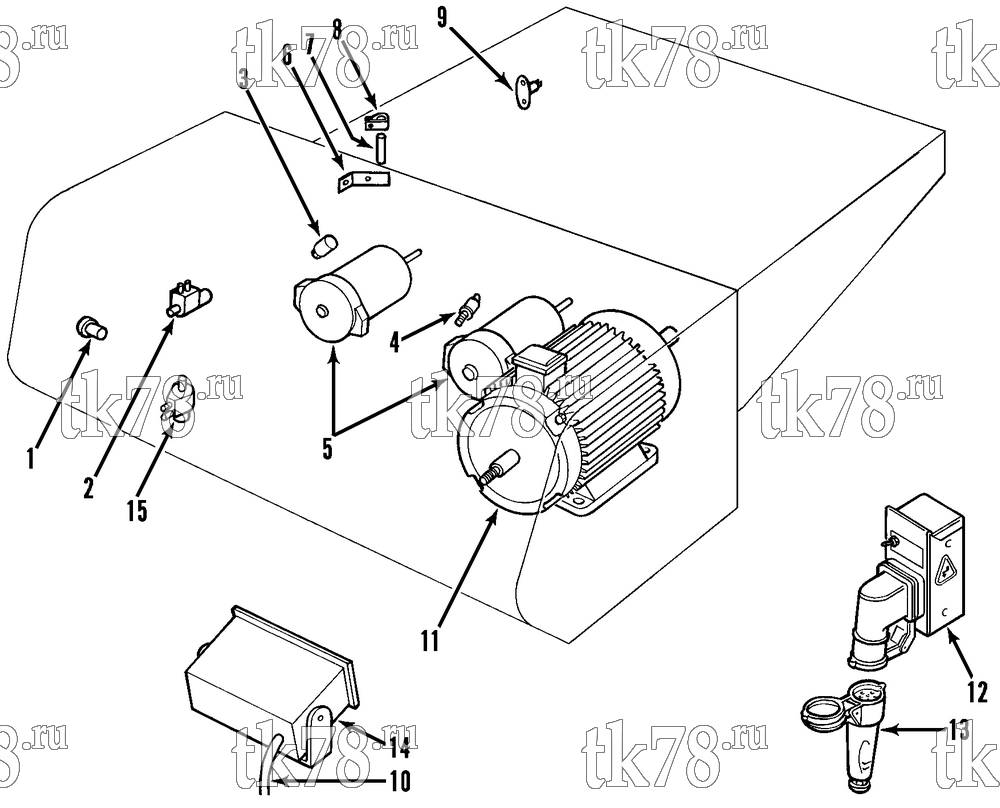

Установкa Thermo King HY MAX схема ELECTRICAL COMPONENTS – 127G7
Обновление от: 12/13/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 2 | 41-825 | COIL - controller | 1 | |
| 3 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 4 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 5 | 41-436 | MOTOR - fan | 2 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 44-5835 | CONNECTOR | 2 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 6 | 91-5540 | BRACKET - thermostat sensor | 1 | |
| 7 | 41-1249 | SENSOR - thermostat | 1 | |
| 8 | 55-547 | CLAMP - thermostat bulb | 1 | |
| 55-7407 | SCREW - bracket & bulb | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7034 | NUT | 2 | ||
| 9 | 41-694 | SWITCH - defrost termination | 1 | |
| 10 | 41-2592 | HARNESS - in-cab box | 1 | |
| 11 | 104-606 | MOTOR (see 127G1) | 1 | |
| 12 | NSS | BOX - receptacle (see 127G11) | 1 | |
| 13 | 41-712 | RECEPTACLE - power | 1 | |
| 14 | 45-1614 | BOX - control (in cab, remote) | 1 | |
| 15 | 66-7071 | VALVE - pilot solenoid | 1 | |
| 44-6158 | COIL | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 |
