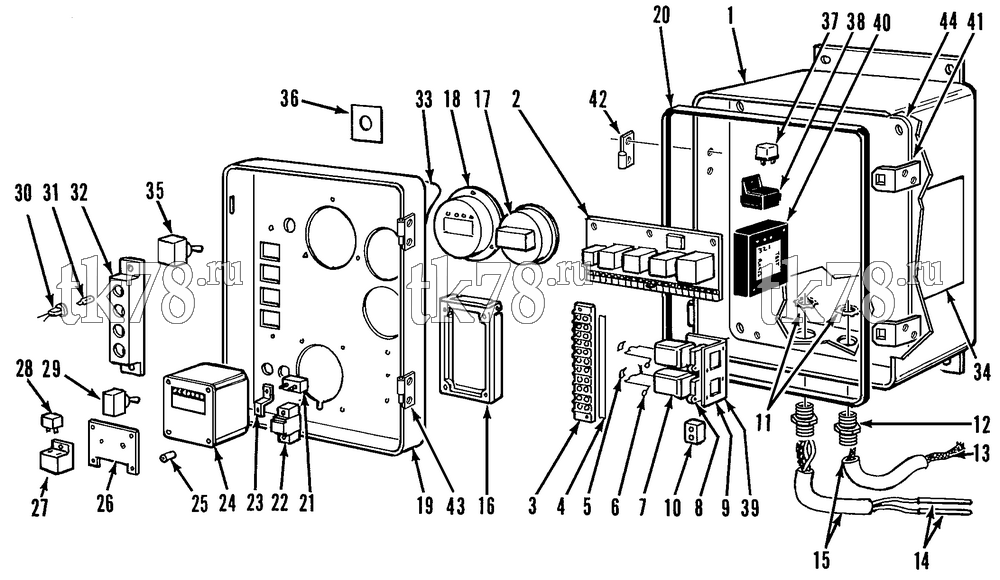

Установкa Thermo King HK & HK-II SERIES схема CONTROL BOX ASSEMBLY (HK-II 30 CONSTANT AIR) – 116E7
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3633 | BOX - control | 1 | |
| 2 | 44-7246 | BOARD - Cycle Sentry (see 79D12) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 44-6590 | DIODE (8S) | 1 | ||
| 44-3521 | DIODE (8D) | 1 | ||
| 55-3021 | SCREW - board | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 44-4062 | BOARD - terminal | 1 | |
| 55-5665 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 4 | 99-9785 | MARKSTRIP (HK-II 30) | 1 | |
| 91-5473 | MARKSTRIP - HK-II 30 Constant Air | 1 | ||
| 5 | 55-2771 | CLAMP - relay | 2 | |
| 6 | 99-2027 | SPRING - holddown (relay) | 2 | |
| 55-2270 | RIVET | 2 | ||
| 7 | 44-3186 | RELAY (12VDC) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 8 | 44-3184 | SOCKET - relay (HK-II 30) | 2 | |
| 9 | 99-9430 | BRACKET - relay | 1 | |
| 55-3209 | SCREW - bracket | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2990 | NUT | 1 | ||
| 10 | 44-5512 | BREAKER - circuit (30 amp) | 1 | |
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 11 | 55-2635 | NUT | 2 | |
| 12 | 55-2788 | FITTING - barb | 2 | |
| 13 | 44-7424 | HARNESS - main (HK-II 30) | 1 | |
| 41-375 | HARNESS - main (HK-II 30 Constant Air) | 1 | ||
| 14 | 44-5236 | SENSOR - thermostat | 2 | |
| 15 | 99-9818 | HOSE - harness | 2 | |
| 16 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 55-2263 | SCREW - cover | 4 | ||
| 17 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 18 | 44-8045 | THERMOMETER - digital (F, see item 14 for sensor) | 1 | |
| 44-8046 | THERMOMETER - digital (C) | 1 | ||
| 55-3513 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-5754 | NUT | 3 | ||
| 19 | 91-3632 | COVER | 1 | |
| 55-5396 | SCREW - panel | 1 | ||
| 20 | 99-7246 | STRIP - gasket (cover) | 1 | |
| 21 | 44-4487 | BREAKER - circuit | 1 | |
|
10-44-4487 | Предохранитель 30A, KD/MD/RD/TD-I / SB-I/II/III | 1 960 ₽ |
|
| 44-2739 | NAMEPLATE - breaker | 1 | ||
| 22 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-9833 | SWITCH - only | 1 | ||
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 44-2119 | SEAL - switch | 1 | ||
| 55-1844 | SCREW - switch | 2 | ||
| 23 | 44-3182 | JUMPER | 1 | |
| 24 | 45-1404 | THERMOSTAT - TG IV (see item 14 for sensor) | 1 | |
| 91-8691 | DIAL - thermostat | 1 | ||
| 25 | 99-2223 | SPACER - bracket | 4 | |
| 26 | 99-9311 | BRACKET - relay | 1 | |
| 55-5757 | SCREW - bracket | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 27 | 44-5537 | SOCKET - relay | 1 | |
| 55-5975 | SCREW - socket | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 28 | 44-9111 | RELAY - mini (alternator) | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 29 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 30 | 44-6462 | SOCKET - light | 3 | |
| 44-7054 | TERMINAL - bulb | 6 | ||
| 31 | 44-3711 | BULB (14V) | 3 | |
| 32 | 99-8322 | HOUSING - lamp | 1 | |
| 55-2995 | SCREW - housing | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 33 | 91-3491 | NAMEPLATE - cover | 1 | |
| 34 | 99-9786 | NAMEPLATE - Operating Instructions | 1 | |
| 35 | 44-7595 | SWITCH - preheat/start (2pdt) | 1 | |
| 36 | 91-304 | NAMEPLATE | 1 | |
| 37 | 44-9334 | HARNESS - recycle (optional) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 55-5975 | SCREW - socket | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 38 | 44-9111 | RELAY - mini (optional) | 1 | |
|
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 39 | 44-7770 | RELAY - thermostat, recycle (optional, incl items 5-9, HK-II 30) | 1 | |
| 41-376 | RELAY - thermostat, recycle (optional, incl items 5-9, HK-II 30 Constant Air) | 1 | ||
| 40 | 44-6598 | TIMER - recycle (optional) | 1 | |
| 55-5698 | SCREW - timer | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 41 | 91-2137 | BRACKET - cover | 2 | |
| 55-2995 | SCREW - bracket | 4 | ||
| 55-3059 | NUT - engine | 2 | ||
| 42 | 91-3638 | HINGE - cover | 2 | |
| 43 | 91-3637 | HINGE - box | 2 | |
| 55-2995 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 44 | 91-3631 | PLATE - relays | 1 | |
| 55-7317 | STUD - plate | 4 | ||
| 99-4309 | SPACER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 |
