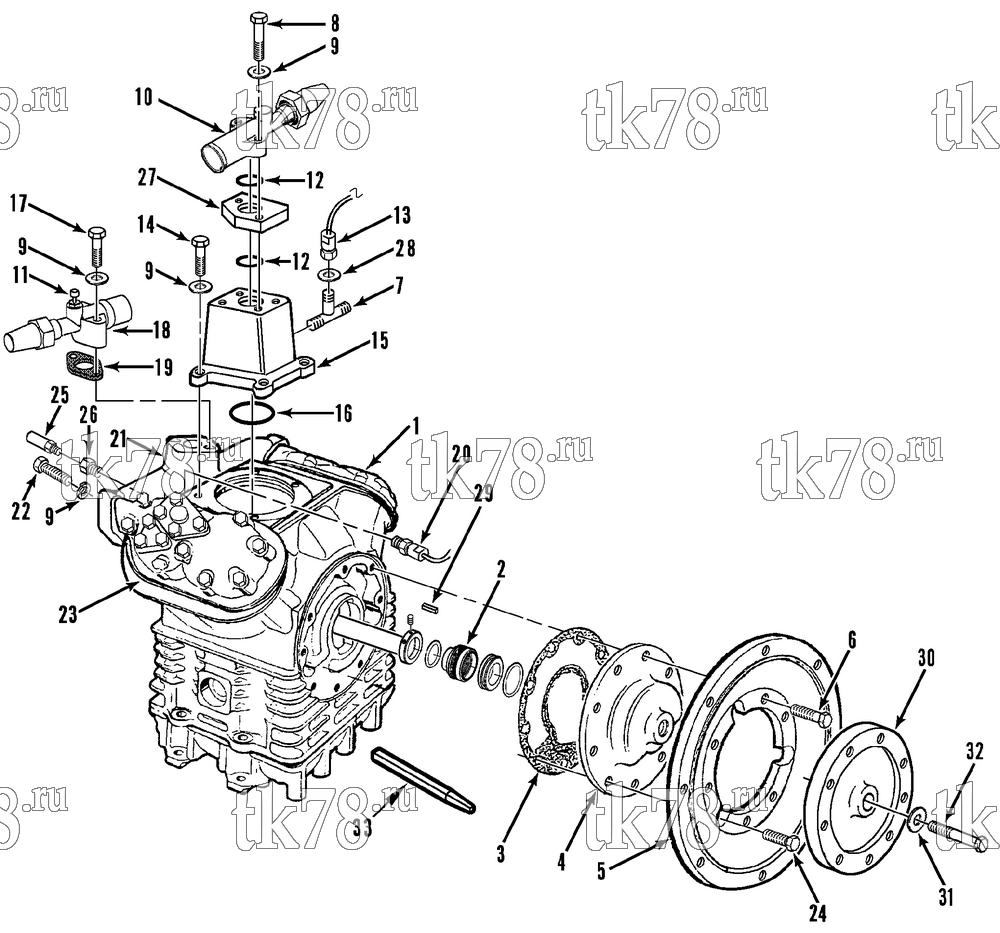

Установкa Thermo King GTC-2 схема COMPRESSOR GROUP - X430 – 113B11
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-922 | COMPRESSOR - X430 C5 (w/ unloader head, see 231C5) | 1 | |
| 2 | 22-751 | SEAL - crankshaft (stainless steel bellows) | 1 | |
| 3 | 33-2513 | GASKET - drive end | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 4 | 22-837 | COVER - drive end | 1 | |
| 33-2120 | SEAL - lip, oil | 1 | ||
| 10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 5 | 22-741 | FLANGE - compressor | 1 | |
| 6 | 55-5195 | SCREW - plate | 6 | |
| 55-3625 | LOCKWASHER | 6 | ||
| 55-402 | FLATWASHER | 6 | ||
| 7 | 66-5642 | TEE - test port (lpco) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 8 | 55-3674 | SCREW - valve | 4 | |
| 9 | 55-6804 | WASHER - sealing | 8 | |
| 10 | 66-5318 | VALVE - suction | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 11 | 11-2886 | VALVE - service port | 2 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 12 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 13 | 44-9976 | SWITCH - lpco | 1 | |
| 44-9977 | SWITCH - only | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 14 | 55-129 | SCREW - adapter | 4 | |
| 15 | 22-835 | ADAPTER - suction valve | 1 | |
| 16 | 33-1221 | O-RING - adapter | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 17 | 55-6776 | SCREW - discharge valve | 2 | |
| 18 | 66-2140 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 33-3007 | GASKET - plastic cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 33-350 | GASKET - brass cap | 1 | ||
| 19 | 33-2805 | GASKET - valve & manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 20 | 44-8672 | SWITCH - hpco | 1 | |
| 44-8491 | SWITCH (only) | 1 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 21 | 22-782 | MANIFOLD - discharge | 1 | |
| 22 | 55-6822 | SCREW - manifold | 4 | |
| 55-6804 | WASHER - sealing | 4 | ||
| 23 | 22-625 | HEAD - unloader (see 51B2) | 1 | |
| 24 | 55-2381 | SCREW - cover | 3 | |
| 203-393 | SEALER - thread | A/R | ||
| 25 | 66-5398 | VALVE - pressure relief | 1 | |
| 26 | 77-841 | BUSHING - relief valve | 1 | |
| 27 | 66-4562 | SPACER - suction valve | 1 | |
| 28 | 33-768 | GASKET - lpco | 1 | |
| 29 | 55-9024 | KEY - coupling | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 30 | 77-2504 | COUPLING - compressor drive (see 92A10) | 1 | |
|
10-77-2504 | Маховик | 80 370 ₽ |
|
| 31 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 32 | 55-6625 | SCREW - compressor coupling | 1 | |
| 33 | 204-972 | TOOL - keyway alignment | 1 |
