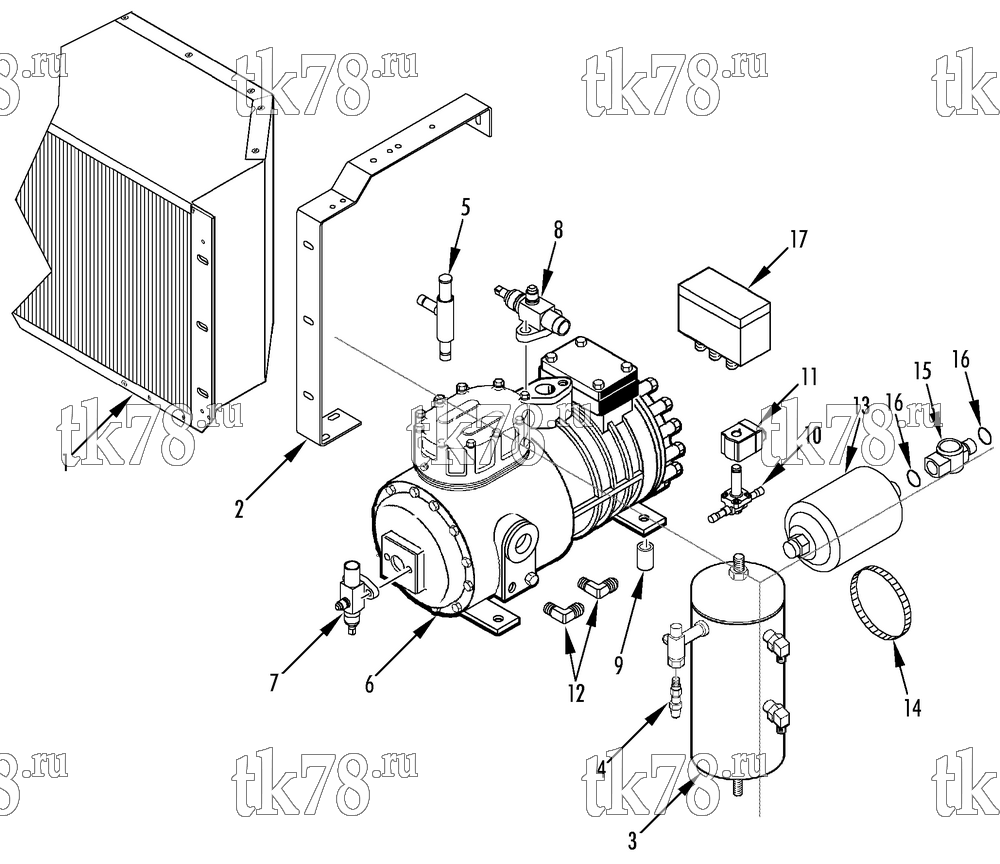

Установкa Thermo King F-15, F-20 & F-30 схема REFRIGERATION COMPONENTS – 170F8
Обновление от: 9/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1265 | COIL - condenser (F-15 & F-20) | 1 | |
| 67-1859 | COIL - condenser (F-30) | 1 | ||
| 2 | 91-9603 | BRACKET - condenser coil (F-15 & F-20) | 1 | |
| 92-918 | BRACKET - condenser coil (F-30) | 1 | ||
| 55-7172 | SCREW - bracket | 3 | ||
| 55-8893 | FLATWASHER | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7354 | NUT | 3 | ||
| 3 | 67-1794 | TANK | 1 | |
| 4 | 66-9005 | VALVE - high pressure relief | 1 | |
| 5 | 22-1073 | REGULATOR - suction pressure (F-15) | 1 | |
| 22-954 | VALVE - pressure regulator (F-20 & F-30) | 1 | ||
| 6 | 102-756 | COMPRESSOR (F-15, 115/1/60) | 1 | |
| 102-706 | COMPRESSOR (F-15, 230/1/60) | 1 | ||
| 102-565 | COMPRESSOR (F-15, FH-15, 380/3/50) | 1 | ||
| 102-703 | COMPRESSOR (F-20 230/1/60) | 1 | ||
| 102-642 | COMPRESSOR (F-20 380/3/50) | 1 | ||
| 30-229 | KIT - gasket | 1 | ||
| 102-761 | COMPRESSOR (F-20 230-400/3/60) | 1 | ||
| 102-752 | COMPRESSOR (F-30 230/1/60) | 1 | ||
| 203-513 | OIL - compressor (ester base, solest) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 7 | 61-342 | VALVE - suction | 1 | |
| 8 | 61-343 | VALVE - discharge | 1 | |
| 9 | 51-173 | SPACER - compressor | 4 | |
| 55-7660 | SCREW - compressor | 4 | ||
| 55-8577 | WASHER - special | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7006 | NUT | 4 | ||
| 10 | 66-7878 | VALVE - solenoid | 1 | |
| 55-8720 | SCREW - solenoid | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 11 | 41-1676 | COIL - valve (220V, 50 Hz) | 1 | |
| 41-3287 | COIL - valve (220V, 60 Hz) | 1 | ||
| 41-4479 | COIL - valve (115V, 60 Hz) | 1 | ||
| 12 | 55-308 | ELBOW | 2 | |
| 13 | 66-8718 | DEHYDRATOR | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 55-9286 | SHOULDER - o-ring seal | 2 | ||
| 55-9009 | NUT - o-ring seal | 2 | ||
| 14 | 55-9486 | BAND - dehydrator | 1 | |
| 91-9987 | CLAMP - band | 1 | ||
| 15 | 61-5144 | SIGHT GLASS (#6) | 1 | |
| 16 | 33-1015 | O-RING (3/8 id) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 41-918 | SWITCH - dual pressure | 1 |
