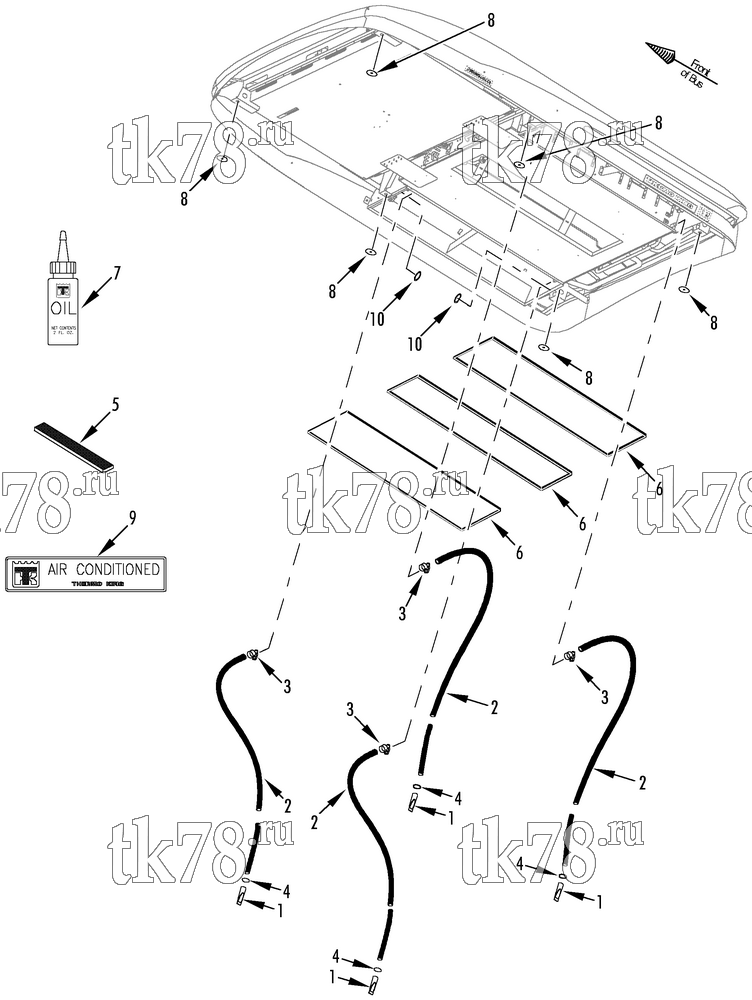

Установкa Thermo King Coach RT 1000 (System 920289) схема INSTALLATION KIT (800611, 818660 & 880091) – 188F2
Обновление от: 1/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check (hose) | 4 | |
| 2 | 91-9006 | HOSE (131.5 ft) | A/R | |
| 3 | 55-6726 | CLAMP - hose | 8 | |
| 4 | 55-2330 | BANDWRAP | 20 | |
| 5 | 203-391 | SEALER - tape (40 ft) | A/R | |
| 6 | 99-9251 | STRIP - neoprene | A/R | |
| 7 | 203-773 | OIL - compressor (bottle, 2 oz) | 1 | |
| 8 | 55-8542 | WASHER - special (2.5 in dia) | 6 | |
| 9 | 99-6884 | NAMEPLATE - TK Air Conditioned | 1 | |
| 10 | 33-3191 | GASKET - flange | 2 |
