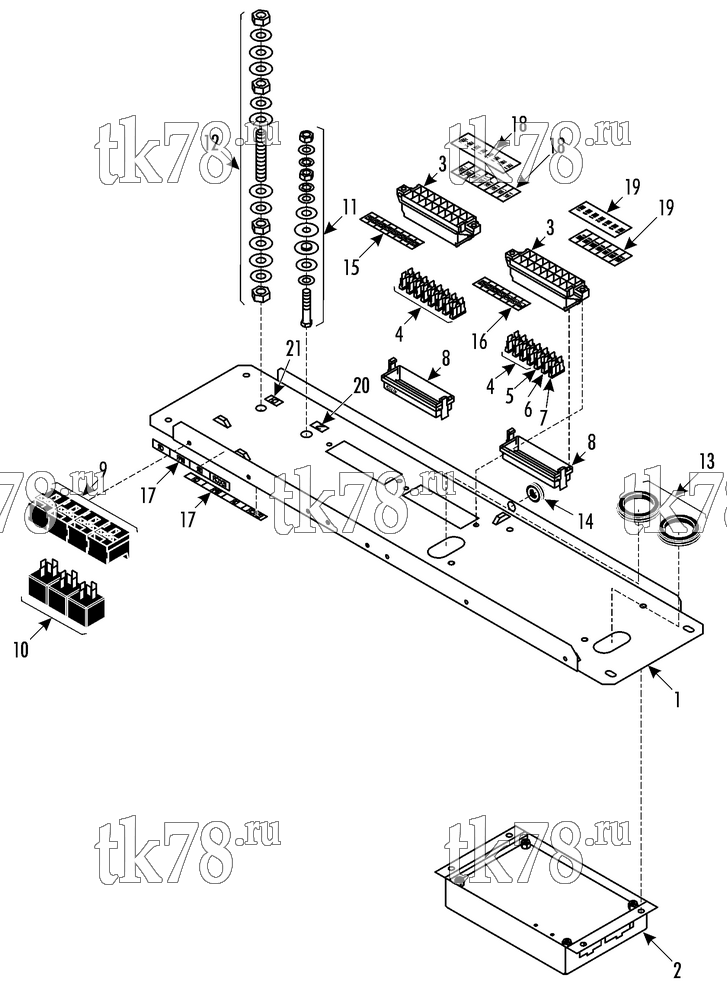

Установкa Thermo King CITI-RT N R407c схема CONTROL PANEL (099911, 099913) – 211C3
Обновление от: 4/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-445 | PANEL - control | 1 | |
| 55-7172 | SCREW - panel | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 2 | NSS | BOARD - pc controller (see 175E7) | 1 | |
| 55-5975 | SCREW - board | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-8482 | NUT - insert | 4 | ||
| 3 | 41-3690 | HOLDER - fuse | 2 | |
| 55-2995 | SCREW - holder | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 4 | 44-9344 | FUSE (15 amp) | 12 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 5 | 44-9524 | FUSE (3 amp) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 6 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 7 | 41-1932 | FUSE (1 amp) | 1 | |
| 8 | 41-3691 | COVER - fuse holder | 2 | |
| 9 | 44-5537 | SOCKET - relay | 4 | |
| 55-5130 | RIVET - socket | 2 | ||
| 10 | 41-896 | RELAY - mini | 3 | |
| 11 | 305-1654 | SCREW - terminal | 1 | |
| 55-8955 | FLATWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 305-1653 | NUT | 2 | ||
| 12 | 55-9191 | STUD - terminal | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 6 | ||
| 55-9189 | NUT | 4 | ||
| 13 | 33-489 | GROMMET (1.25 id) | 2 | |
| 14 | 33-314 | GROMMET (0.312 id) | 1 | |
| 15 | 92-448 | MARKSTRIP - value | 1 | |
| 16 | 92-1853 | MARKSTRIP - value | 1 | |
| 17 | 92-5718 | MARKSTRIP - relay | 2 | |
| 18 | 92-447 | MARKSTRIP - fuse | 2 | |
| 19 | 92-1854 | MARKSTRIP - fuse | 2 | |
| 20 | 92-449 | MARKSTRIP - 2 | 1 | |
| 21 | 92-450 | MARKSTRIP - CH | 1 |
