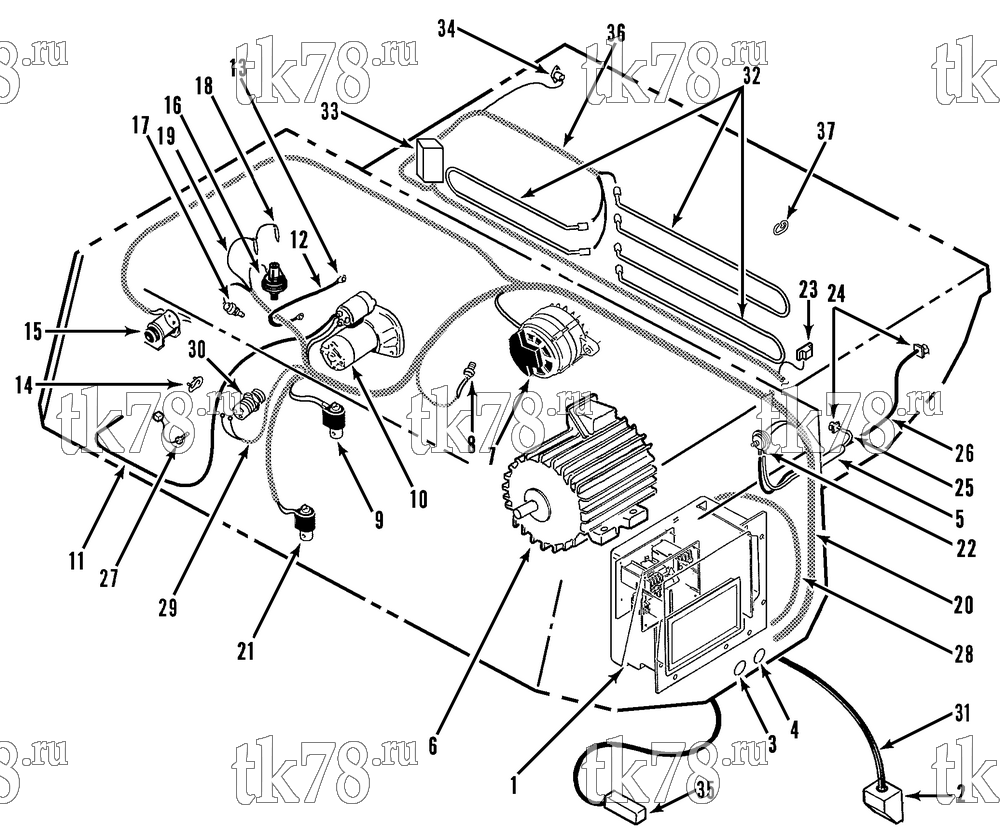

Установкa Thermo King CD MAX & CD MAX EMEIA схема ELECTRICAL COMPONENTS (GAUGES & SENSORS) – 138E12
Обновление от: 1/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5028 | BOX - control (see 138F1 & 138F5) | 1 | |
| 2 | 99-9501 | BOX - power receptacle (see 111D14) | 1 | |
| 3 | 44-9259 | HOURMETER - standby (analog, option & engine hours) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 4 | 55-7554 | PLUG - button (white) | 1 | |
| 5 | 44-8164 | HEATER - drain tube | 2 | |
| 6 | 104-774 | MOTOR (230/1/60, see 126F4) | 1 | |
| 104-775 | MOTOR (220-230-380-460/3/50-60) | 1 | ||
| 7 | 44-9754 | ALTERNATOR (model EA, see 90E9) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2195 | ALTERNATOR (37 amp, model 8MR, see 111F1) | 1 | ||
|
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 8 | 41-3846 | SWITCH - hpco (R404A) | 1 | |
| 44-7992 | SWITCH - hpco (R134a) | 1 | ||
| 9 | 66-6874 | VALVE - solenoid (see 138B8) | 1 | |
| 10 | 45-1724 | STARTER (see 132F12) | 1 | |
| US-45-1724 | Стартер DENSO, Yanmar 249 | 101 800 ₽ |
|
|
| 10-45-1724 | Стартер | 27 960 ₽ |
|
|
| 11 | 41-429 | CABLE - starter to battery (positive terminal, 45 ft) | 1 | |
| 12 | 44-7186 | CABLE - ground (terminal to engine bracket) | 1 | |
| 13 | 55-2961 | SCREW - terminal (battery cable) | 1 | |
| 55-2641 | FLATWASHER | 3 | ||
| 55-3471 | LOCKWASHER | 3 | ||
| 55-3300 | NUT | 2 | ||
| 91-4732 | NAMEPLATE - terminal battery | 1 | ||
| 14 | 44-8244 | FUSE LINK (see note) | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 40-805 | KIT - battery fuse | 1 | ||
|
10-40-805 | Корпус предохранителя (60 ампер) | 7 860 ₽ |
|
| 41-3666 | FUSE (60 amp) | 1 | ||
| 55-3000 | SCREW - terminal (positive, 10-32) | 3 | ||
| 55-3006 | WASHER - shoulder | 6 | ||
| 55-2001 | FLATWASHER | 11 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 15 | 41-1566 | SOLENOID - fuel (see 138E11) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 16 | 41-6865 | SWITCH - oil pressure (see 138E8) | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 17 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 18 | 41-6582 | GLOW PLUG | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| 19 | 44-7426 | CONNECTOR - glow plug | 1 | |
| 20 | 41-2005 | HARNESS - main (see 138F2) | 1 | |
| 21 | 66-6903 | VALVE - solenoid (liquid refrigerant, see 138B9) | 1 | |
| 22 | 44-3475 | SWITCH - pressure differential | 1 | |
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 23 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5708 | SCREW - switch | 2 | ||
| 24 | 99-1275 | PROBE - switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 25 | 99-1142 | HOSE (clear) | 1 | |
| 26 | 99-1143 | HOSE (black) | 1 | |
| 27 | 41-1550 | BOLT - thermistor | 1 | |
| 44-6116 | THERMOSTAT (Cycle Sentry) | 1 | ||
| 99-9831 | BRACKET - sensor (Cycle Sentry) | 1 | ||
| 55-4666 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 28 | 41-112 | HARNESS - option | 1 | |
| 29 | 41-113 | HARNESS - Cycle Sentry (see 138F2) | 1 | |
| 30 | 44-6016 | SENSOR - rpm | 1 | |
|
10-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 8 900 ₽ |
|
| PP-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 4 310 ₽ |
|
|
| 91-3906 | SPACER - rpm sensor | 1 | ||
| 31 | 44-9972 | HARNESS - power (see 138F2) | 1 | |
| 32 | 45-1374 | HEATER (optional) | 3 | |
| 32 | 44-7187 | HARNESS - heater | 3 | |
| 33 | 44-7354 | BOX - junction (heaters) | 1 | |
| 34 | 44-3627 | SWITCH - high temperature cutout (50s only) | 1 | |
| 35 | 44-8494 | BOX - remote control (see 91D14) | 1 | |
| 36 | 41-120 | HARNESS - evaporator (before 11/99) | 1 | |
| 41-3985 | HARNESS - evaporator (after 10/99) | 1 | ||
| 37 | 91-240 | RETAINER - heater | 12 |
