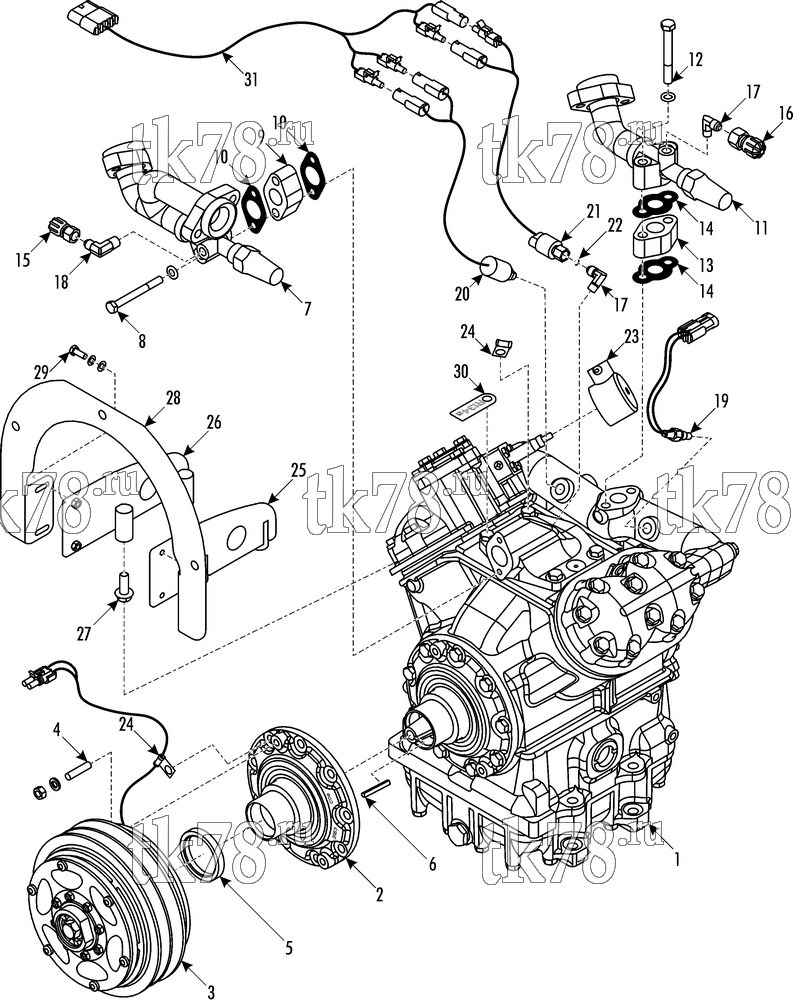

Установкa Thermo King ATHENIA S960 N 1000 Irisbus Ethel схема COMPRESSOR GROUP X430 w/unloader valve (KIT 600331) – 243D2
Обновление от: 6/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-971 | COMPRESSOR - X430 (see 198D6) | 1 | |
| 2 | 22-754 | PLATE - bearing (replacement) | 1 | |
| 3 | 77-2840 | CLUTCH (see 222H3) | 1 | |
| 4 | 55-3451 | STUD - clutch | 3 | |
| 56-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT | 3 | ||
| 5 | 77-1491 | SPACER - clutch | 1 | |
| 6 | 55-9088 | KEY - shaft | 1 | |
| 7 | 61-5101 | VALVE - suction | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 8 | 55-8226 | SCREW - valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 9 | 92-8278 | ADAPTER - valve | 1 | |
| 10 | 33-2541 | GASKET | 2 | |
| 11 | 61-5102 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 12 | 55-1417 | SCREW - valve | 2 | |
| 30-55-1417 | Болт поддона компрессора | 700 ₽ |
|
|
| 56-896 | FLATWASHER | 2 | ||
| 13 | 92-8279 | ADAPTER - valve | 1 | |
| 14 | 33-2805 | GASKET | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 15 | 51-360 | FITTING - high/low | 1 | |
| 16 | 51-361 | FITTING - high/low | 1 | |
| 17 | 55-308 | ELBOW - (1/4 x 1/8) | 2 | |
| 18 | 55-466 | ELBOW - (1/4 x 1/4) | 1 | |
| 19 | 41-3345 | SENSOR - thermistor probe | 1 | |
| 20 | 41-4146 | SWITCH - hpco | 1 | |
| 21 | 41-4147 | SWITCH - lpco | 1 | |
| 22 | 33-768 | GASKET - flare | A/R | |
| 23 | 44-7463 | VALVE - overdrive control | 1 | |
| 24 | 55-5261 | CLAMP - cable | 2 | |
| 25 | 92-8280 | PLATE - side | 1 | |
| 26 | 92-8281 | PLATE - side | 1 | |
| 27 | 51-239 | BOLT - plates | 4 | |
| 28 | 92-8282 | FLANGE | 1 | |
| 29 | 55-4666 | SCREW - flange | 4 | |
| 55-7478 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 30 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 31 | 41-8008 | HARNESS - compressor (for connectors see 243D5) | 1 |
