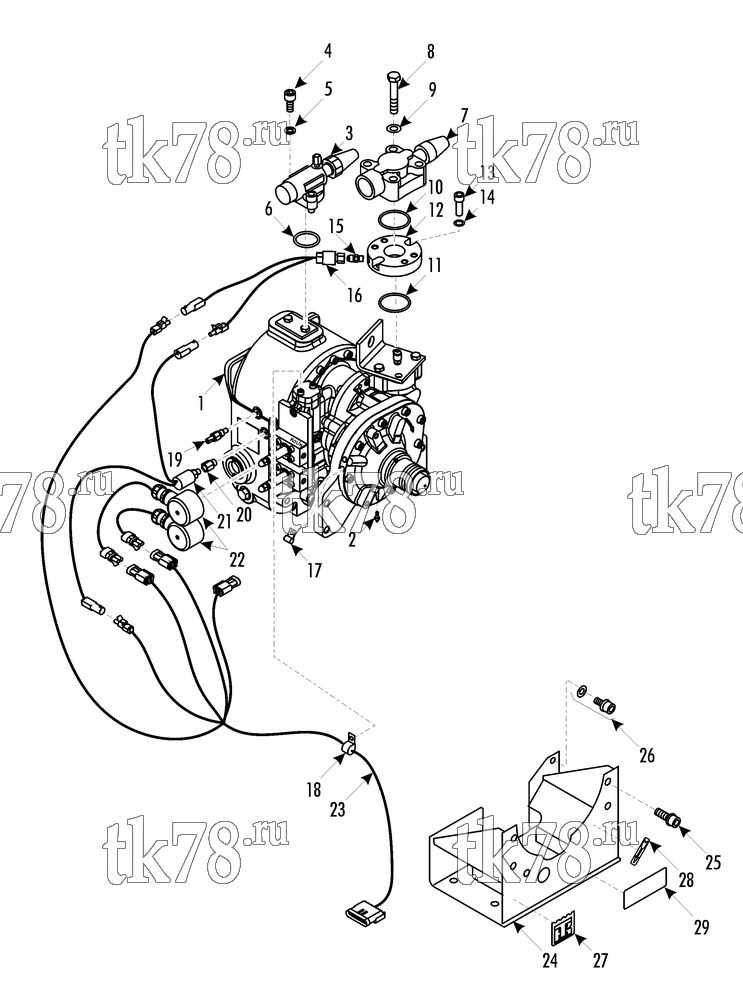

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема COMPRESSOR GROUP (KIT 700407) – 253B6
Обновление от: 7/27/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-915 | COMPRESSOR - QS616 (see 193H8) | 1 | |
| 2 | 55-2387 | FITTING - lubrication | 1 | |
| 3 | 66-5492 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 4 | 55-9727 | SCREW - valve to compressor | 2 | |
| 5 | 55-4625 | FLATWASHER | 2 | |
| 6 | 33-230 | O-RING (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 7 | 61-1977 | VALVE - suction | 1 | |
| 8 | 55-7414 | SCREW - valve to compressor | 4 | |
| 9 | 55-5914 | FLATWASHER | 4 | |
| 10 | 33-3708 | O-RING (2.0 id) | 1 | |
| 11 | 33-3707 | O-RING (2.125 id) | 1 | |
| 12 | 22-1171 | SPACER - suction valve | 1 | |
| 13 | 55-9726 | SCREW - spacer | 2 | |
| 14 | 55-7024 | FLATWASHER | 2 | |
| 15 | 55-7213 | ADAPTER - switch | 1 | |
| 16 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 17 | 55-9811 | CLAMP (0.250 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 18 | 51-176 | CLAMP - harness | 1 | |
| 77-7172 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 19 | 41-3827 | SENSOR - thermistor (for connectors see 115D14) | 1 | |
| 33-3381 | O-RING - thermistor | 1 | ||
| 20 | 55-9730 | ADAPTER | 1 | |
| 33-3381 | O-RING - adapter (3/8 in id) | 1 | ||
| 21 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 22 | 41-5213 | COIL - solenoid (for connectors see 115D14) | 2 | |
| 23 | 41-6878 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 44-3228 | DIODE | 3 | ||
| 24 | 92-1309 | BRACKET - mounting | 1 | |
| 55-4931 | WASHER - special (0.406 id) | 4 | ||
| 25 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 26 | 55-9727 | SCREW - bracket | 3 | |
| 55-7072 | FLATWASHER | 3 | ||
| 55-1173 | LOCKWASHER | 3 | ||
| 27 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 28 | 99-9084 | NAMEPLATE - Arrow | 1 | |
| 29 | 91-5459 | NAMEPLATE - R134a | 1 |
